Wurth Elektronik 3485 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1-Row
- RS Stock No.:
- 191-6254
- Mfr. Part No.:
- 691348500004
- Brand:
- Wurth Elektronik

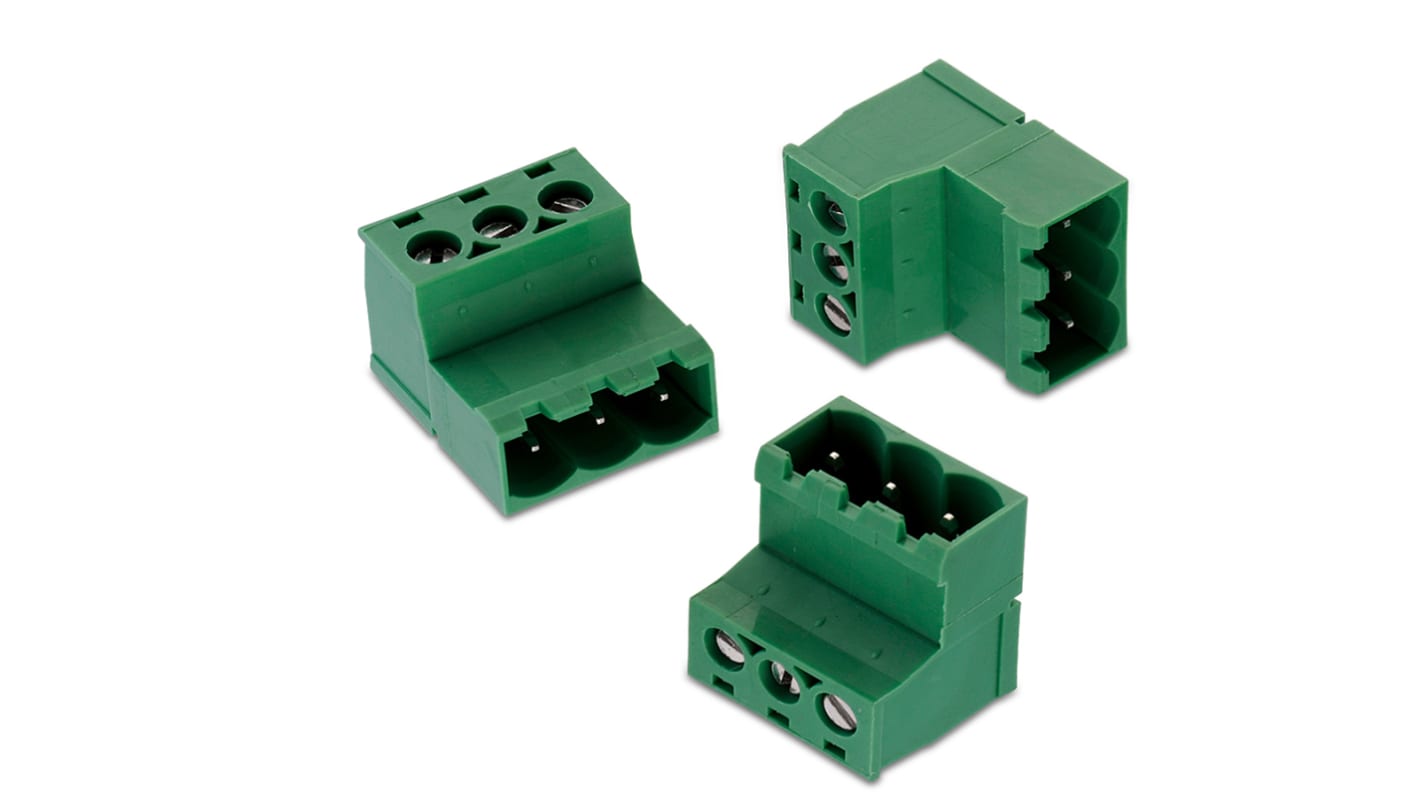

Image representative of range
Bulk discount available
Subtotal (1 pack of 2 units)*
MYR50.29
FREE delivery for orders over RM 500.00
In Stock
- Plus 30 unit(s) shipping from 15 December 2025
- Plus 154 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 36 | MYR25.145 | MYR50.29 |
| 38 - 74 | MYR24.615 | MYR49.23 |
| 76 + | MYR23.87 | MYR47.74 |
*price indicative
- RS Stock No.:
- 191-6254
- Mfr. Part No.:
- 691348500004
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Current | 20A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.32mm² | |
| Maximum Wire Size mm² | 3.31mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 22 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Wire Connection Method | Solder | |
| Voltage | 1.6 kV | |
| Series | 3485 | |
| Standards/Approvals | RoHS | |
| Width | 19.2 mm | |
| Depth | 15mm | |
| Length | 21.82mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Current 20A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.32mm² | ||
Maximum Wire Size mm² 3.31mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 22 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Vertical | ||
Colour Green | ||
Wire Connection Method Solder | ||
Voltage 1.6 kV | ||
Series 3485 | ||
Standards/Approvals RoHS | ||
Width 19.2 mm | ||
Depth 15mm | ||
Length 21.82mm | ||
- COO (Country of Origin):
- CN
Wurth Elektronik WR-TBL are available in different connection types and offer large and modular Terminal Block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.
