Wurth Elektronik 3485 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1-Row
- RS Stock No.:
- 191-6199
- Mfr. Part No.:
- 691348500002
- Manufacturer:
- Wurth Elektronik

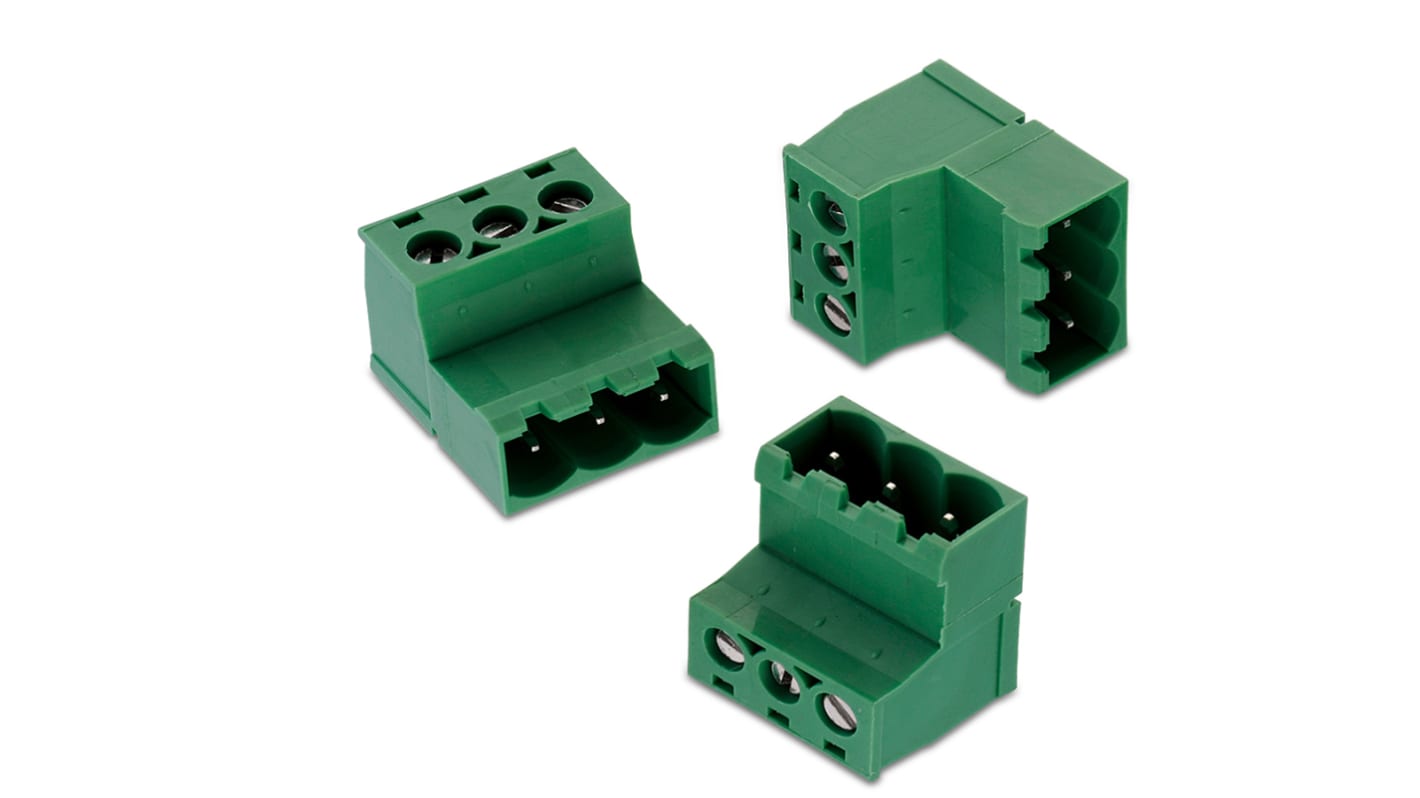

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR59.71
FREE delivery for orders over RM 500.00
In Stock
- Plus 45 unit(s) shipping from 15 December 2025
- Plus 160 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 60 | MYR11.942 | MYR59.71 |
| 65 - 120 | MYR10.974 | MYR54.87 |
| 125 + | MYR9.934 | MYR49.67 |
*price indicative
- RS Stock No.:
- 191-6199
- Mfr. Part No.:
- 691348500002
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 2 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Current | 20A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.32mm² | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 3.31mm² | |
| Minimum Wire Size AWG | 22 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Vertical | |
| Wire Connection Method | Solder | |
| Colour | Green | |
| Voltage | 1.6 kV | |
| Length | 11.66mm | |
| Depth | 15mm | |
| Width | 19.2 mm | |
| Series | 3485 | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 2 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Current 20A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.32mm² | ||
Connector Gender Male | ||
Maximum Wire Size mm² 3.31mm² | ||
Minimum Wire Size AWG 22 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Vertical | ||
Wire Connection Method Solder | ||
Colour Green | ||
Voltage 1.6 kV | ||
Length 11.66mm | ||
Depth 15mm | ||
Width 19.2 mm | ||
Series 3485 | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
Wurth Elektronik WR-TBL are available in different connection types and offer large and modular Terminal Block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.
