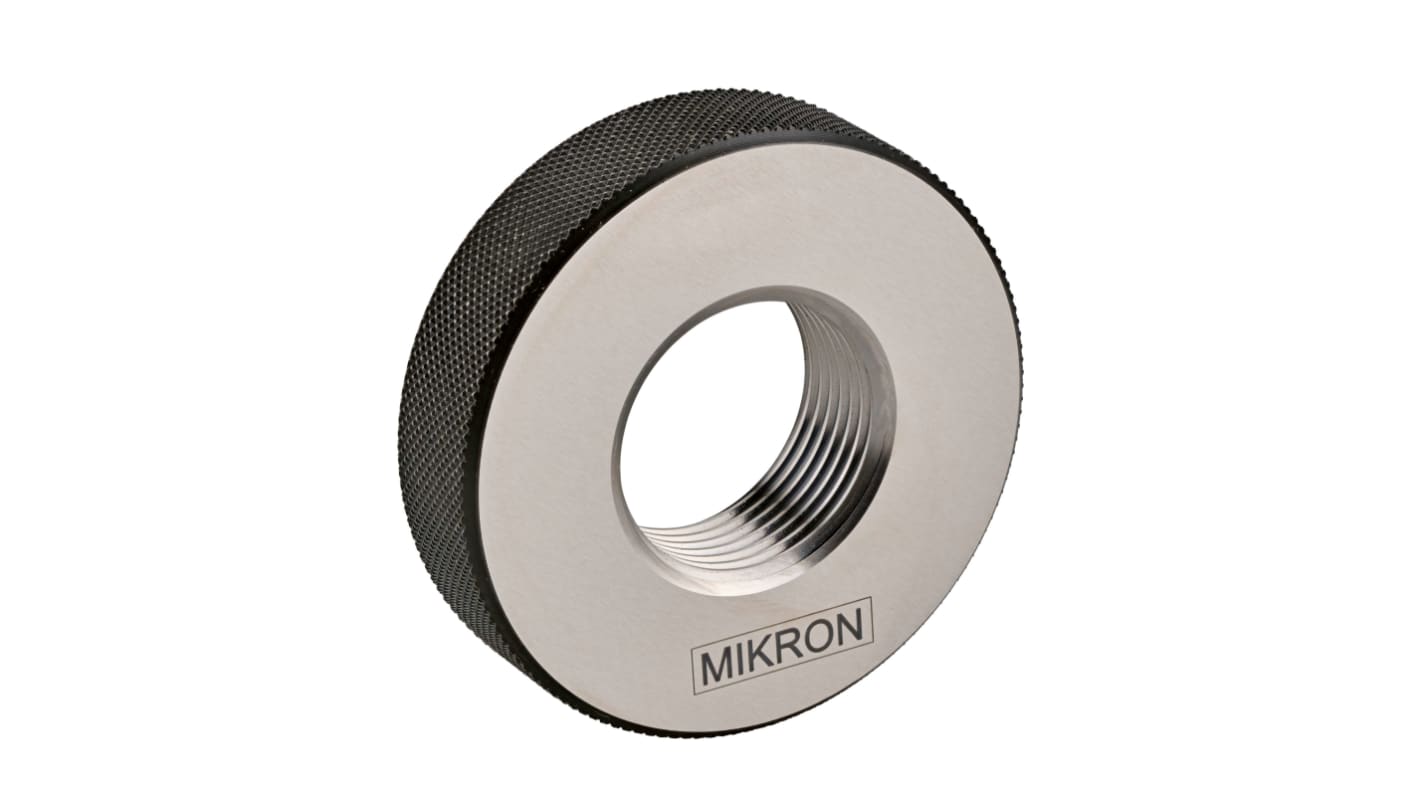

MikronTec M45 x 4.5 Ring Thread Gauge Ring Gauge, 4.5mm Pitch Diameter

RS Stock No.:: 265-8505
Mfr. Part No.:: 0045050053
Manufacturer:: MikronTec

MikronTec M45 x 4.5 Ring Thread Gauge Ring Gauge, 4.5mm Pitch Diameter

Temporarily out of stock - back order for despatch 05/07/2024, delivery within 4 working days from despatch date

Price Each

MYR1,884.74

Units	Per Unit
1 +	MYR1,884.74

RS Stock No.:: 265-8505
Mfr. Part No.:: 0045050053
Manufacturer:: MikronTec

Technical data sheets

Datasheet - 0045050053

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

The MikronTec thread ring gauge is a gauge used to test a threaded shaft. The Go gauge must be able to be screwed on the threaded shaft without excessive force. The No-Go gauge (indicated in red) must not fit on the test item. These gauges are used to check whether the actual thread of a test item is within a specified target range.

Conforms to DIN13 - ISO 1502
Right handled
High precision and fast μm production

Specifications

Attribute	Value
Plug/Ring	Ring
Gauge Type	Ring Thread Gauge
Go / No Go	No Go
Thread Size	M45 x 4.5
Pitch Diameter	4.5mm
