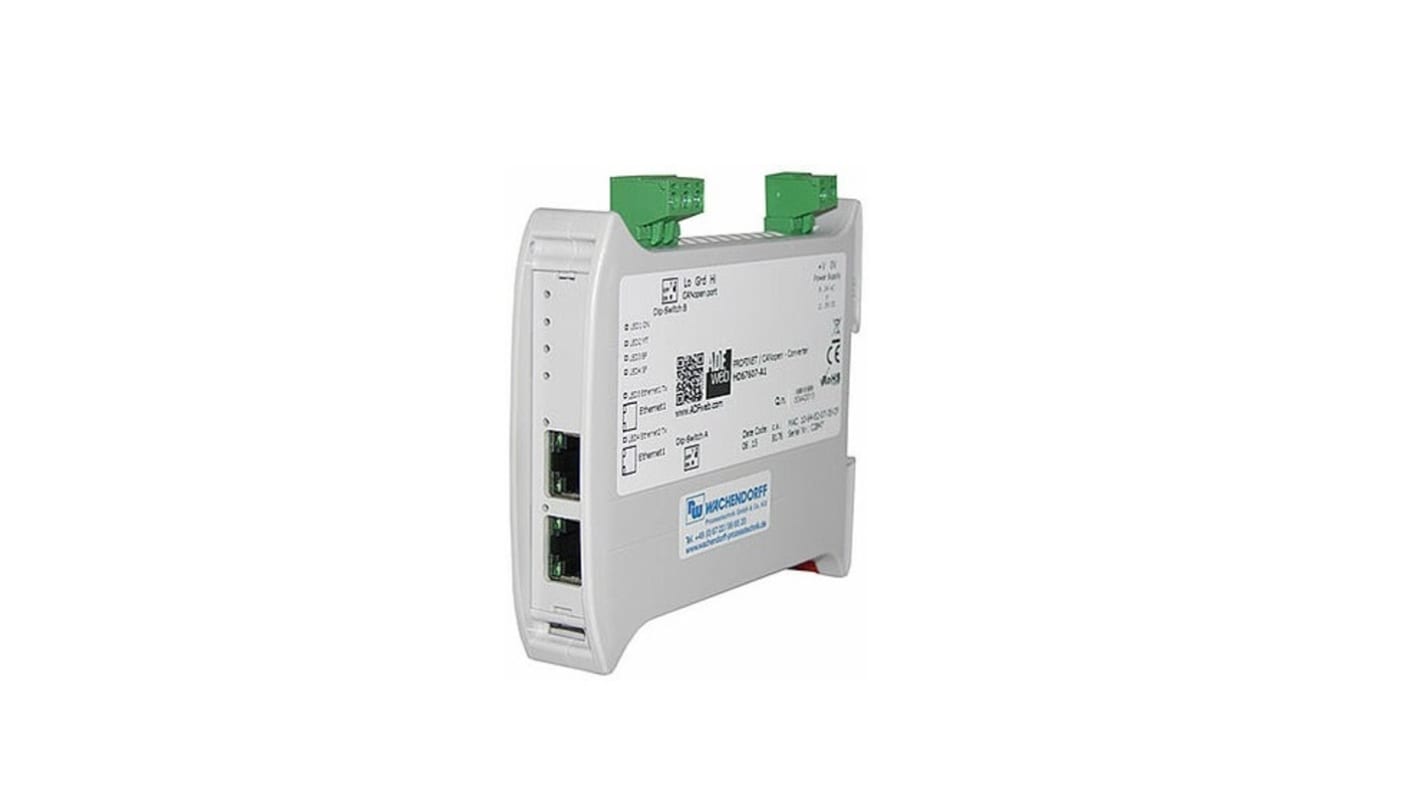

Wachendorff HD67xxx Series Gateway Server for Use with PROFINET and CANHD67606-A1, Digital, Digital
- RS Stock No.:
- 267-2465
- Mfr. Part No.:
- HD67607-A1
- Manufacturer:
- Wachendorff
Temporarily out of stock - back order for despatch 16/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR3,973.44
| Units | Per Unit |
| 1 + | MYR3,973.44 |
- RS Stock No.:
- 267-2465
- Mfr. Part No.:
- HD67607-A1
- Manufacturer:
- Wachendorff
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
The Wachendorff configurable gateway enables communication between CANopen participants and a Profinet master. The DIN rail mounting and the plug-in screw terminals ensure quick and safe installation and problem-free wiring of the device. Thanks to the integrated switch, a multi-line structure is possible. With the free project planning software SW67607, the CAN IDs and the data length are defined for the bidirectional data exchange on the CANopen side, which are then assigned byte by byte on the Profinet side and vice versa. At the end of your configuration, you generate an XML device description file that you simply integrate into your Profinet configuration. The configuration is transmitted via Ethernet.
Integrated switch
Configurable gateway for free data management
High temperature range from -40 °C to +85 °C
two Profinet-capable ports
Galvanic 3-way isolation
Profinet data block size maximum 1,440 bytes
Configurable gateway for free data management
High temperature range from -40 °C to +85 °C
two Profinet-capable ports
Galvanic 3-way isolation
Profinet data block size maximum 1,440 bytes
Specifications
Attribute | Value |
|---|---|
| Accessory Type | GateWay Unit |
| Range | Gateway |
| Series | HD67xxx |
| Input Type | Digital |
| Output Type | Digital |
| For Use With | PROFINET and CANHD67606-A1 |
| Dimensions | 23 x 107 x 120 mm |
