- RS Stock No.:
- 771-358
- Manufacturer:
- Tufnol®
24 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Lot of 2
MYR773.16
| Lot(s) | Per Lot | Per Unit* |
| 1 - 14 | MYR773.16 | MYR386.58 |
| 15 - 29 | MYR756.94 | MYR378.47 |
| 30 + | MYR734.25 | MYR367.125 |
| *price indicative | ||
- RS Stock No.:
- 771-358
- Manufacturer:
- Tufnol®
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

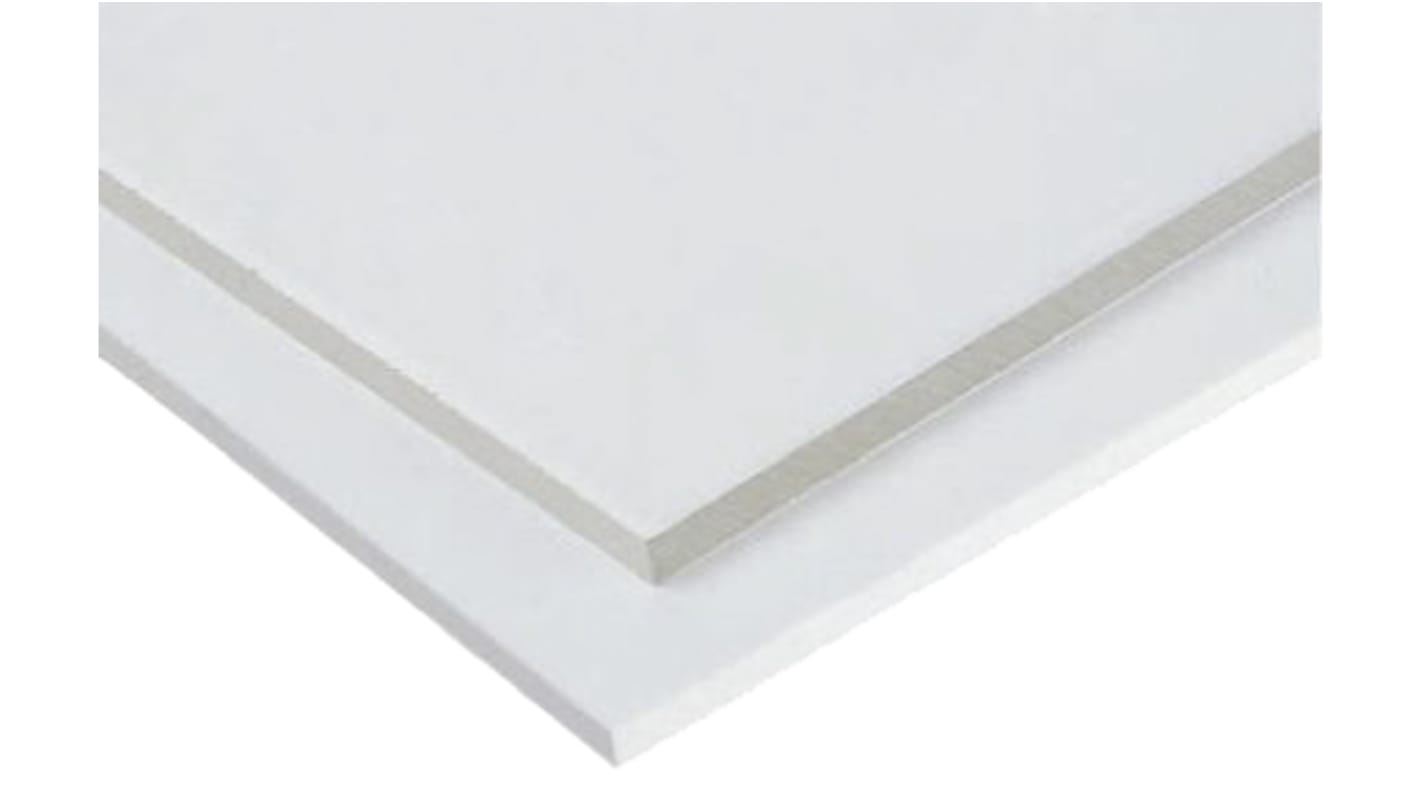

Tufnol®, 10G/40
Epoxy glass laminate with extremely high mechanical and electrical strength.
Good dielectric properties under dry and humid conditions
Excellent rigidity and dimensional stability
Conforms to EN60893 type RP GC 201
Excellent rigidity and dimensional stability
Conforms to EN60893 type RP GC 201
Standards
EN 60893 type RP GC 201
Specifications
Attribute | Value |
|---|---|
| Form | Full |
| Colour | Green |
| Length | 590mm |
| Width | 285mm |
| Thickness | 2mm |
| Material | GRP |
| Laminated | Yes |
| Density | 1.36g/cm³ |
| Water Absorption | 0.5mg/cm³ |
| Thermal Conductivity | 0.42W/mK |
| Maximum Operating Temperature | +130°C |
| Laminate Material | Epoxy Resin, Glass Fibre |
| Impact Strength | 60kJ/m² |
| Cross Breaking Strength | 490MPa |
