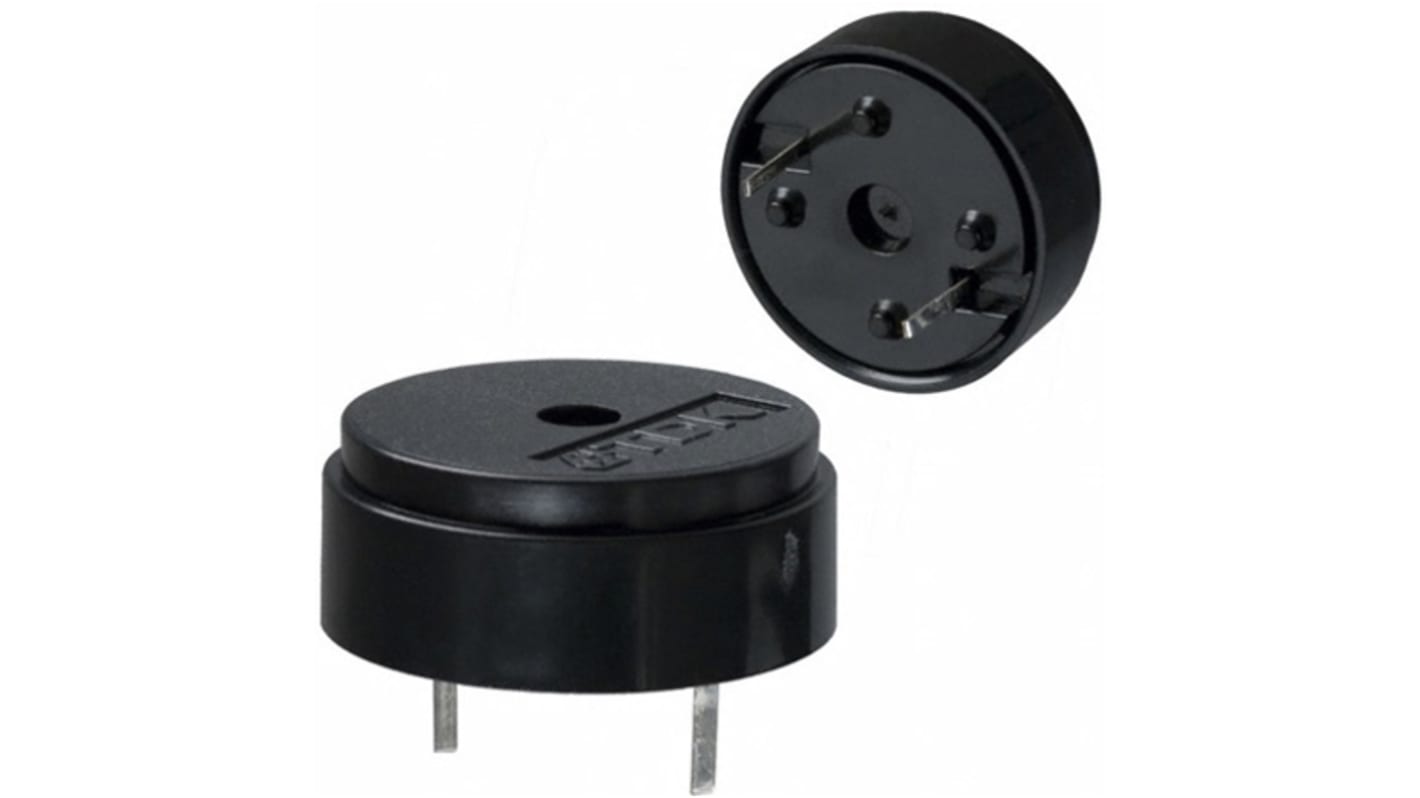

TDK 60dB PCB Mount High External Piezo Buzzer, 17 (Dia.) x 4.6mm, 3V ac Min, 30V ac Max
- RS Stock No.:
- 134-7281
- Mfr. Part No.:
- PS1740P02CE
- Manufacturer:
- TDK
Subtotal (1 reel of 1500 units)**
MYR4,452.00
Temporarily out of stock - back order for despatch 30/06/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Reel** |
|---|---|---|
| 1500 + | MYR2.968 | MYR4,452.00 |
**price indicative
- RS Stock No.:
- 134-7281
- Mfr. Part No.:
- PS1740P02CE
- Manufacturer:
- TDK
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Mounting Type | PCB Mount | |
| Minimum Supply Voltage | 3V ac | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 60dB | |
| Drive Type | External | |
| Tone Type | High | |
| Diameter | 17mm | |
| Height | 4.6mm | |
| Dimensions | 17 (Dia.) x 4.6mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 4kHz | |
| Minimum Frequency | 4000Hz | |
Select all | ||
|---|---|---|
Brand TDK | ||
Mounting Type PCB Mount | ||
Minimum Supply Voltage 3V ac | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 60dB | ||
Drive Type External | ||
Tone Type High | ||
Diameter 17mm | ||
Height 4.6mm | ||
Dimensions 17 (Dia.) x 4.6mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 4kHz | ||
Minimum Frequency 4000Hz | ||
