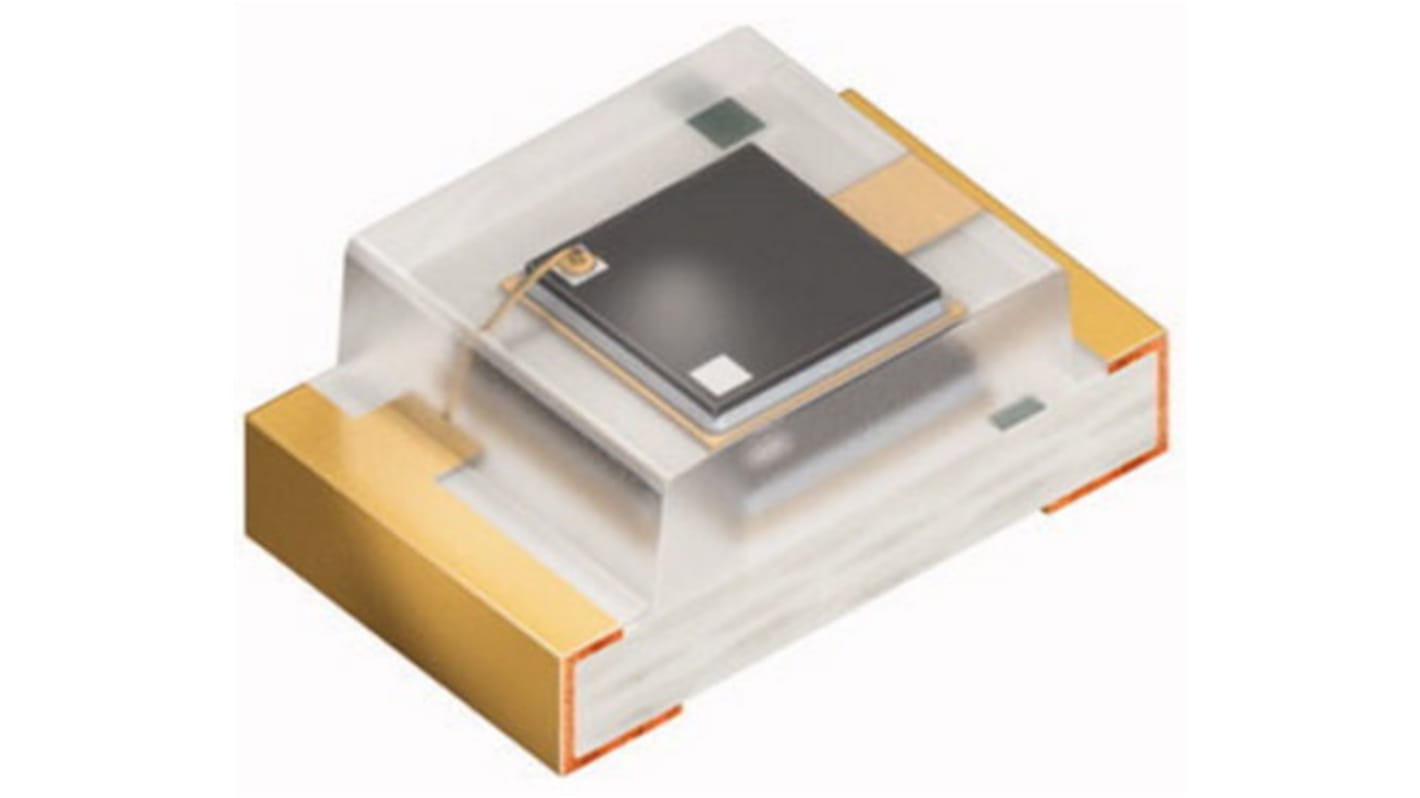

SFH 3710-Z Osram Opto, 120 ° Full Spectrum Phototransistor, Surface Mount 2-Pin SMD package
- RS Stock No.:
- 915-4890P
- Mfr. Part No.:
- SFH 3710-Z
- Manufacturer:
- OSRAM Opto Semiconductors
Bulk discount available
Subtotal 760 units (supplied on a reel)**
MYR1,848.32
4840 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 760 - 1480 | MYR2.432 |
| 1500 + | MYR2.10 |
**price indicative
- RS Stock No.:
- 915-4890P
- Mfr. Part No.:
- SFH 3710-Z
- Manufacturer:
- OSRAM Opto Semiconductors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OSRAM Opto Semiconductors | |
| Spectrums Detected | Infrared, Ultraviolet, Visible Light | |
| Number of Channels | 1 | |
| Maximum Light Current | 12.5µA | |
| Maximum Dark Current | 3nA | |
| Angle of Half Sensitivity | 120 ° | |
| Polarity | NPN | |
| Number of Pins | 2 | |
| Mounting Type | Surface Mount | |
| Package Type | SMD | |
| Dimensions | 2.1 x 1.35 x 0.9mm | |
| Collector Current | 20mA | |
| Maximum Wavelength Detected | 950nm | |
| Spectral Range of Sensitivity | 350 → 950 nm | |
| Minimum Wavelength Detected | 350nm | |
| Length | 2.1mm | |
| Width | 1.35mm | |
| Height | 0.9mm | |
Select all | ||
|---|---|---|
Brand OSRAM Opto Semiconductors | ||
Spectrums Detected Infrared, Ultraviolet, Visible Light | ||
Number of Channels 1 | ||
Maximum Light Current 12.5µA | ||
Maximum Dark Current 3nA | ||
Angle of Half Sensitivity 120 ° | ||
Polarity NPN | ||
Number of Pins 2 | ||
Mounting Type Surface Mount | ||
Package Type SMD | ||
Dimensions 2.1 x 1.35 x 0.9mm | ||
Collector Current 20mA | ||
Maximum Wavelength Detected 950nm | ||
Spectral Range of Sensitivity 350 → 950 nm | ||
Minimum Wavelength Detected 350nm | ||
Length 2.1mm | ||
Width 1.35mm | ||
Height 0.9mm | ||
