Units	Per Unit	Per Bag**
2000 - 2000	MYR0.776	MYR1,552.00
4000 - 6000	MYR0.759	MYR1,518.00
8000 +	MYR0.745	MYR1,490.00

Select all	Attribute	Value
	Brand	ams OSRAM
	Spectrums Detected	Infrared, Ultraviolet, Visible Light
	Typical Fall Time	7µs
	Typical Rise Time	7µs
	Number of Channels	1
	Maximum Light Current	7200µA
	Maximum Dark Current	200nA
	Angle of Half Sensitivity	24 °
	Polarity	NPN
	Number of Pins	2
	Mounting Type	Through Hole
	Package Type	T-1
	Dimensions	4 x 4 x 5.2mm
	Collector Current	15mA
	Spectral Range of Sensitivity	380 → 1150 nm
	Minimum Wavelength Detected	380nm
	Maximum Wavelength Detected	1150nm
	Height	5.2mm
	Length	4mm
	Width	4mm

	Select all
	Brand ams OSRAM
	Spectrums Detected Infrared, Ultraviolet, Visible Light
	Typical Fall Time 7µs
	Typical Rise Time 7µs
	Number of Channels 1
	Maximum Light Current 7200µA
	Maximum Dark Current 200nA
	Angle of Half Sensitivity 24 °
	Polarity NPN
	Number of Pins 2
	Mounting Type Through Hole
	Package Type T-1
	Dimensions 4 x 4 x 5.2mm
	Collector Current 15mA
	Spectral Range of Sensitivity 380 → 1150 nm
	Minimum Wavelength Detected 380nm
	Maximum Wavelength Detected 1150nm
	Height 5.2mm
	Length 4mm
	Width 4mm

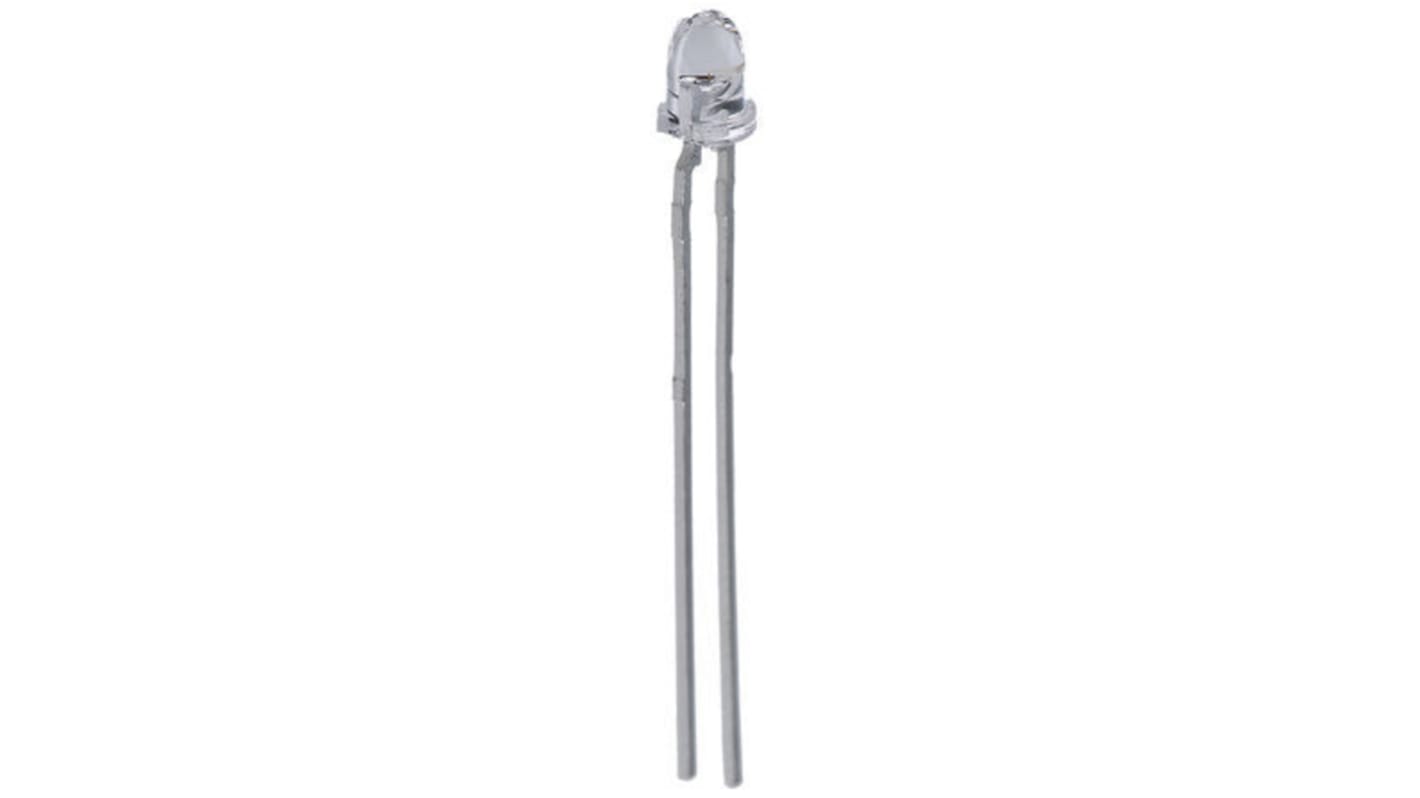

SFH 309-4/5 ams OSRAM, 24 ° Full Spectrum Phototransistor, Through Hole 2-Pin T-1 package

FREE delivery for orders over MYR500.00

Phototransistor 3mm Package
