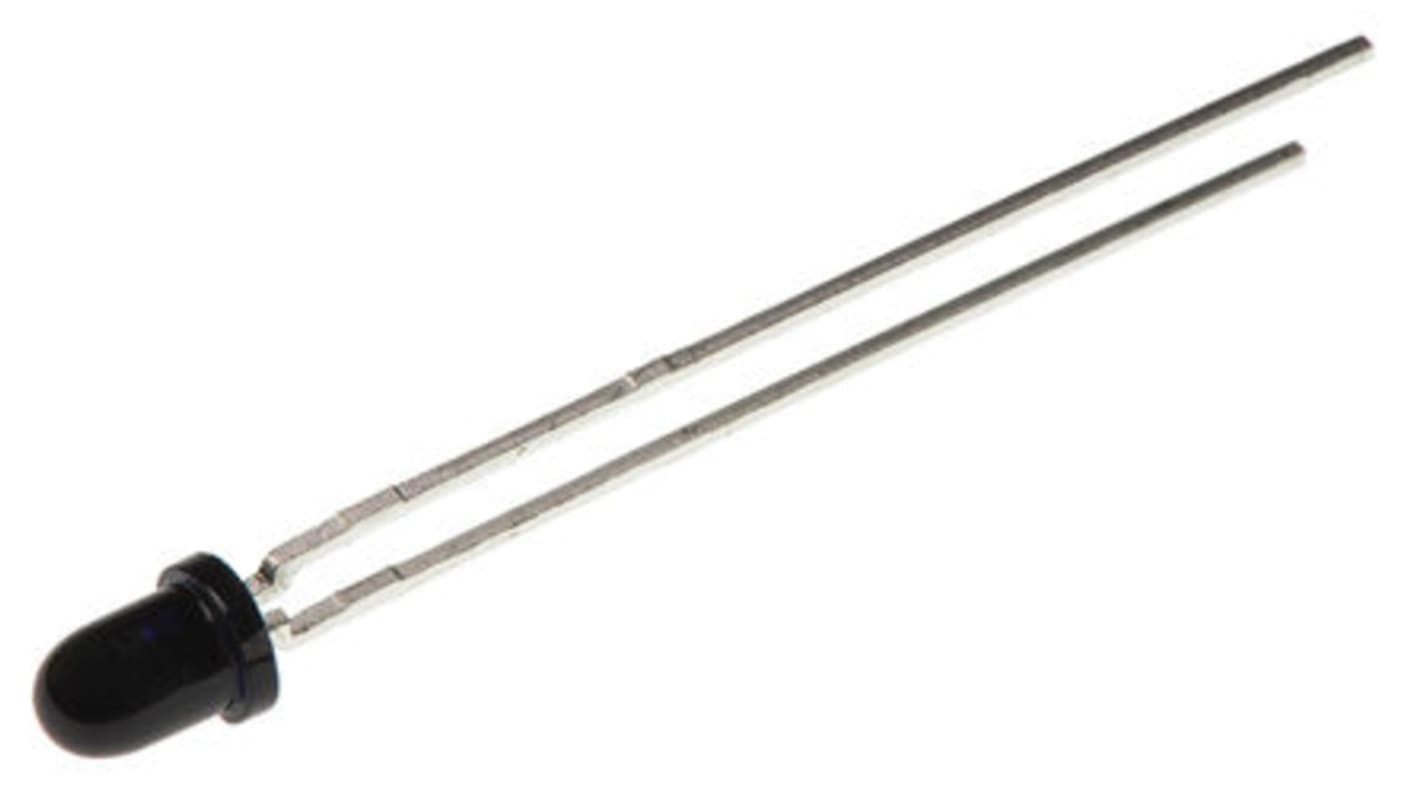

SFH 309 FA-4/5 ams OSRAM, 24 ° IR Phototransistor, Through Hole 2-Pin T-1 package
- RS Stock No.:
- 912-8514
- Mfr. Part No.:
- SFH 309 FA-4/5
- Manufacturer:
- ams OSRAM
Temporarily out of stock - back order for despatch 08/08/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Bag of 2000)
MYR1.122
| Units | Per Unit | Per Bag* |
| 2000 - 8000 | MYR1.122 | MYR2,244.00 |
| 10000 - 48000 | MYR1.099 | MYR2,198.00 |
| 50000 + | MYR1.077 | MYR2,154.00 |
| *price indicative | ||
- RS Stock No.:
- 912-8514
- Mfr. Part No.:
- SFH 309 FA-4/5
- Manufacturer:
- ams OSRAM
Technical data sheets
Legislation and Compliance
Product Details
Phototransistor T-1 (3mm) Package
This family of NPN silicon phototransistors, from OSRAM Opto Semiconductors, are a range of 3mm (T-1) through-hole devices. They have both clear or black plastic lenses, the diffused lenses being used for daylight filters. Suitable applications include; photointerrupters, industrial electronics and for control/drive circuits.
Standard 3mm (T-1) package
Through-hole mounting
Through-hole mounting
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 7µs |
| Typical Rise Time | 7µs |
| Number of Channels | 1 |
| Maximum Light Current | 7200µA |
| Maximum Dark Current | 200nA |
| Angle of Half Sensitivity | 24 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | T-1 |
| Dimensions | 4 x 4 x 5.2mm |
| Collector Current | 15mA |
| Minimum Wavelength Detected | 730nm |
| Spectral Range of Sensitivity | 730 → 1120 nm |
| Maximum Wavelength Detected | 1120nm |
| Length | 4mm |
| Width | 4mm |
| Height | 5.2mm |
