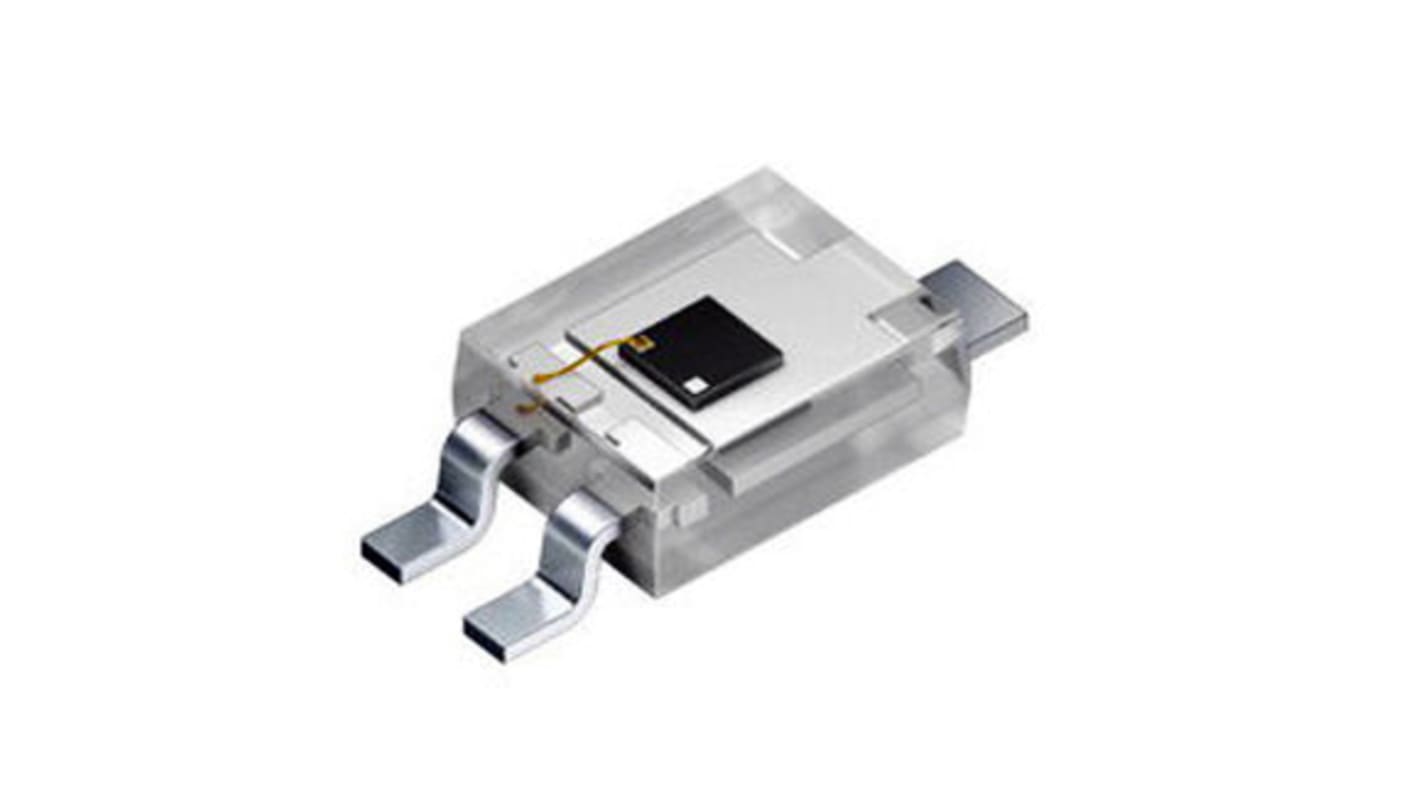

SFH 3410-Z ams OSRAM, ±60 ° IR Phototransistor, Surface Mount 3-Pin Smart DIL package
- RS Stock No.:
- 912-8299
- Mfr. Part No.:
- SFH 3410-Z
- Manufacturer:
- ams OSRAM
Bulk discount available
Subtotal (1 reel of 2000 units)**
MYR5,358.00
Temporarily out of stock - back order for despatch 07/10/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Reel** |
---|---|---|
2000 - 2000 | MYR2.679 | MYR5,358.00 |
4000 - 6000 | MYR2.62 | MYR5,240.00 |
8000 + | MYR2.572 | MYR5,144.00 |
**price indicative
- RS Stock No.:
- 912-8299
- Mfr. Part No.:
- SFH 3410-Z
- Manufacturer:
- ams OSRAM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ams OSRAM | |
Spectrums Detected | Infrared | |
Maximum Dark Current | 50nA | |
Angle of Half Sensitivity | ±60 ° | |
Polarity | NPN | |
Number of Pins | 3 | |
Mounting Type | Surface Mount | |
Package Type | Smart DIL | |
Dimensions | 2.7 x 2.1 x 1.05mm | |
Collector Current | 20mA | |
Maximum Wavelength Detected | 970nm | |
Spectral Range of Sensitivity | 350 → 970 nm | |
Minimum Wavelength Detected | 350nm | |
Height | 1.05mm | |
Saturation Voltage | 100mV | |
Emitter Collector Voltage | 0.5V | |
Collector Emitter Voltage | 5.5 V | |
Length | 2.7mm | |
Width | 2.1mm | |
Select all | ||
---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared | ||
Maximum Dark Current 50nA | ||
Angle of Half Sensitivity ±60 ° | ||
Polarity NPN | ||
Number of Pins 3 | ||
Mounting Type Surface Mount | ||
Package Type Smart DIL | ||
Dimensions 2.7 x 2.1 x 1.05mm | ||
Collector Current 20mA | ||
Maximum Wavelength Detected 970nm | ||
Spectral Range of Sensitivity 350 → 970 nm | ||
Minimum Wavelength Detected 350nm | ||
Height 1.05mm | ||
Saturation Voltage 100mV | ||
Emitter Collector Voltage 0.5V | ||
Collector Emitter Voltage 5.5 V | ||
Length 2.7mm | ||
Width 2.1mm | ||
