Units	Per Unit	Per Pack**
5 - 245	MYR16.388	MYR81.94
250 - 495	MYR14.102	MYR70.51
500 +	MYR12.632	MYR63.16

Select all	Attribute	Value
	Brand	Vishay
	Spectrums Detected	Infrared, Visible Light
	Typical Fall Time	5µs
	Typical Rise Time	6µs
	Number of Channels	1
	Maximum Light Current	15000µA
	Maximum Dark Current	100nA
	Angle of Half Sensitivity	±10 °
	Polarity	NPN
	Number of Pins	3
	Mounting Type	Through Hole
	Package Type	TO-18
	Dimensions	4.69 x 6.15mm
	Collector Current	50mA
	Spectral Range of Sensitivity	450 → 1080 nm
	Maximum Wavelength Detected	1080nm
	Minimum Wavelength Detected	450nm
	Diameter	4.69mm
	Height	6.15mm

	Select all
	Brand Vishay
	Spectrums Detected Infrared, Visible Light
	Typical Fall Time 5µs
	Typical Rise Time 6µs
	Number of Channels 1
	Maximum Light Current 15000µA
	Maximum Dark Current 100nA
	Angle of Half Sensitivity ±10 °
	Polarity NPN
	Number of Pins 3
	Mounting Type Through Hole
	Package Type TO-18
	Dimensions 4.69 x 6.15mm
	Collector Current 50mA
	Spectral Range of Sensitivity 450 → 1080 nm
	Maximum Wavelength Detected 1080nm
	Minimum Wavelength Detected 450nm
	Diameter 4.69mm
	Height 6.15mm

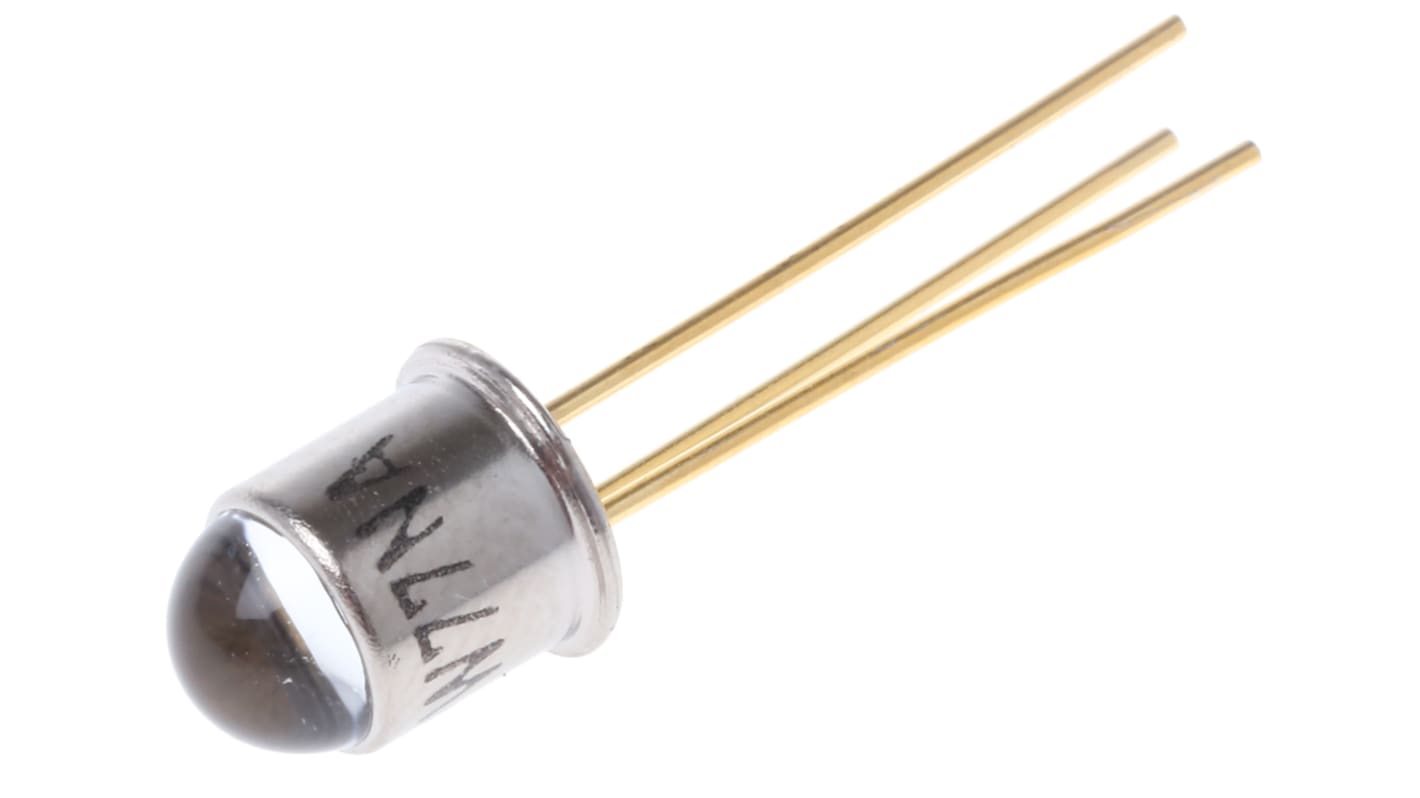

BPW77NA Vishay, ±10 ° IR + Visible Light Phototransistor, Through Hole 3-Pin TO-18 package

FREE delivery for orders over MYR500.00

BPW77NA and BPW77NB Series Phototransistors
