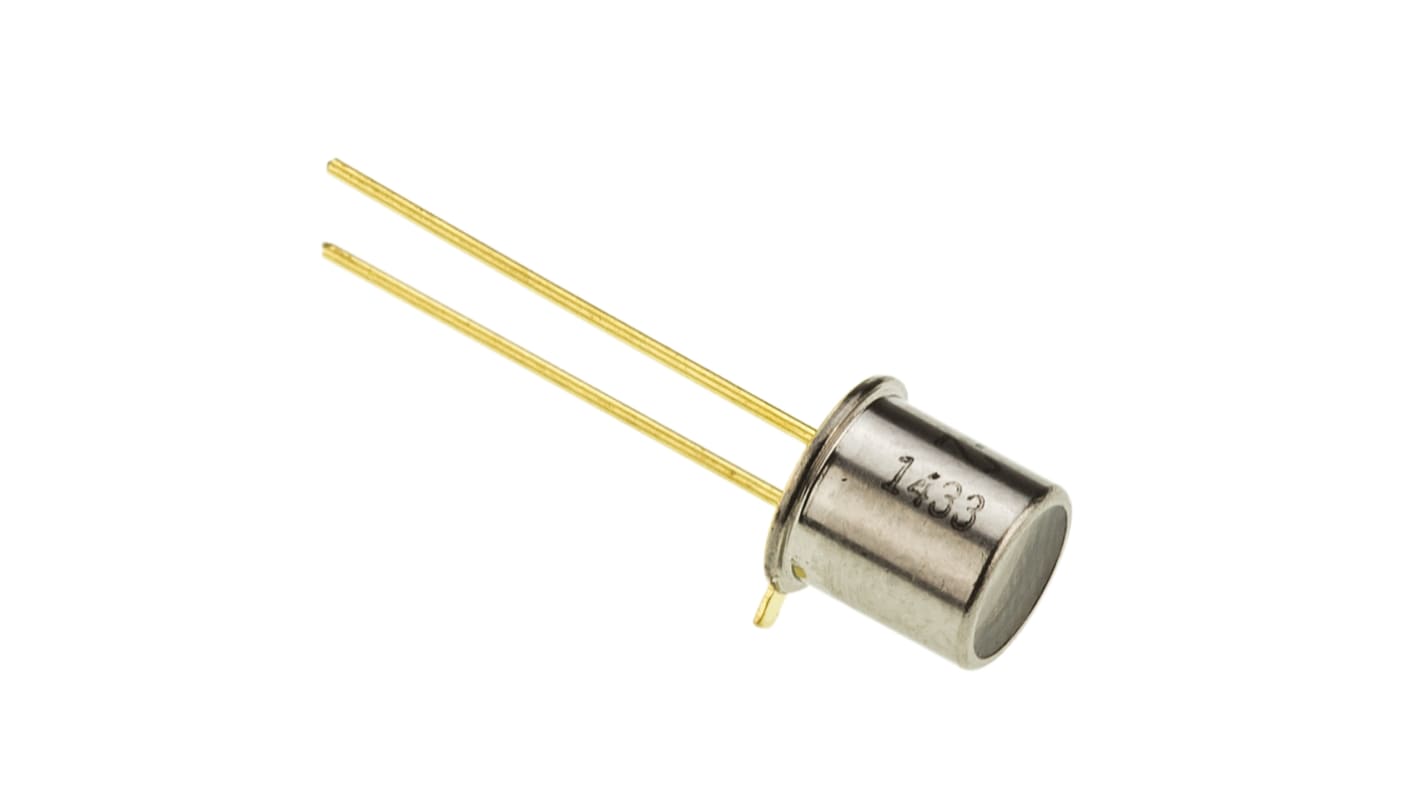

BPX 38-3 ams OSRAM, 80 ° IR + Visible Light Phototransistor, Through Hole 3-Pin TO-18 package
- RS Stock No.:
- 665-5246P
- Mfr. Part No.:
- BPX 38-3
- Manufacturer:
- ams OSRAM
Discontinued product
- RS Stock No.:
- 665-5246P
- Mfr. Part No.:
- BPX 38-3
- Manufacturer:
- ams OSRAM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared, Visible Light | |
| Typical Fall Time | 18µs | |
| Typical Rise Time | 18µs | |
| Number of Channels | 1 | |
| Maximum Light Current | 1500µA | |
| Maximum Dark Current | 100nA | |
| Angle of Half Sensitivity | 80 ° | |
| Polarity | NPN | |
| Number of Pins | 3 | |
| Mounting Type | Through Hole | |
| Package Type | TO-18 | |
| Dimensions | 5.6 x 5.6 x 5.5mm | |
| Collector Current | 50mA | |
| Minimum Wavelength Detected | 450nm | |
| Spectral Range of Sensitivity | 450 → 1120 nm | |
| Maximum Wavelength Detected | 1120nm | |
| Height | 5.5mm | |
| Length | 5.6mm | |
| Width | 5.6mm | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared, Visible Light | ||
Typical Fall Time 18µs | ||
Typical Rise Time 18µs | ||
Number of Channels 1 | ||
Maximum Light Current 1500µA | ||
Maximum Dark Current 100nA | ||
Angle of Half Sensitivity 80 ° | ||
Polarity NPN | ||
Number of Pins 3 | ||
Mounting Type Through Hole | ||
Package Type TO-18 | ||
Dimensions 5.6 x 5.6 x 5.5mm | ||
Collector Current 50mA | ||
Minimum Wavelength Detected 450nm | ||
Spectral Range of Sensitivity 450 → 1120 nm | ||
Maximum Wavelength Detected 1120nm | ||
Height 5.5mm | ||
Length 5.6mm | ||
Width 5.6mm | ||
