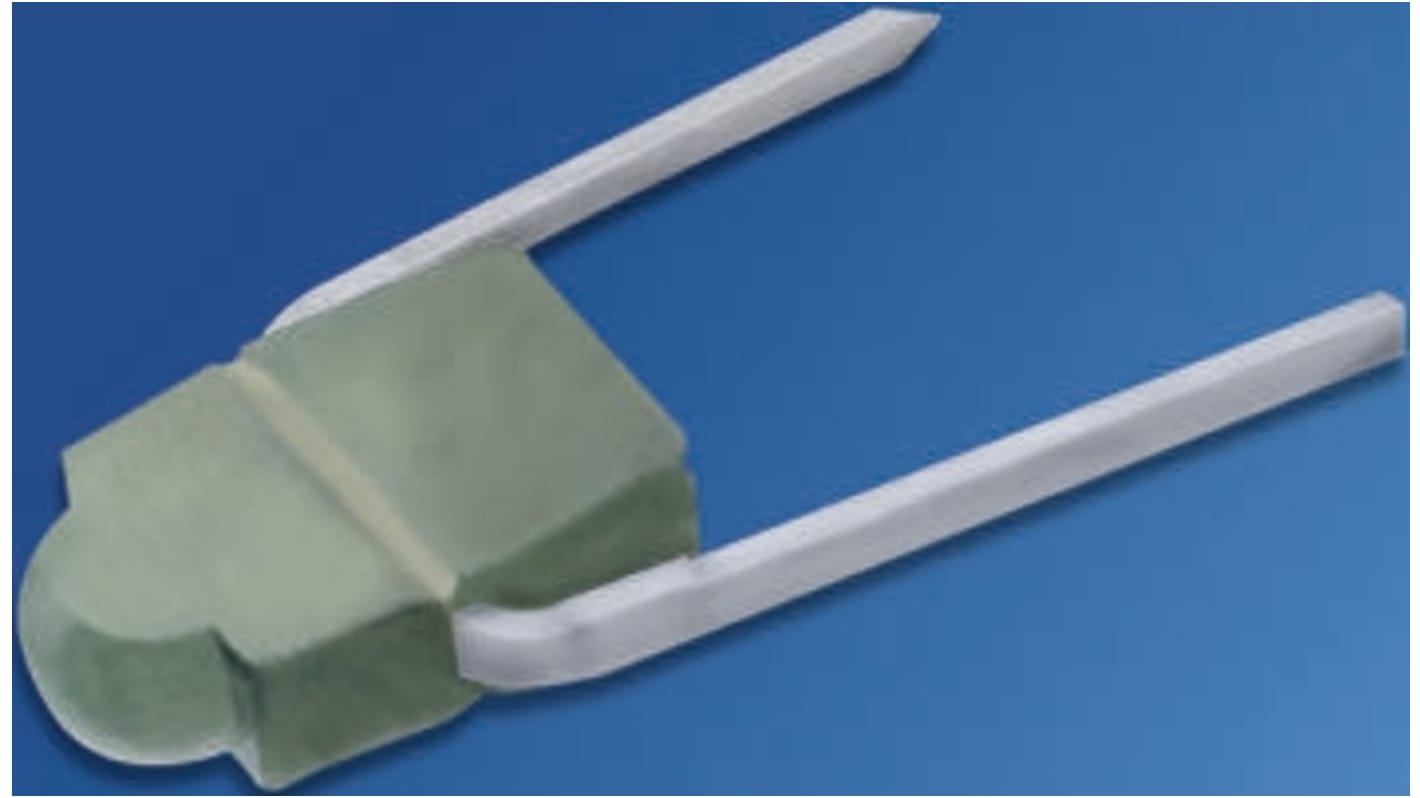

SFH 305-2/3 ams OSRAM, 32 ° IR + Visible Light Phototransistor, Through Hole 2-Pin
- RS Stock No.:
- 654-9163P
- Mfr. Part No.:
- SFH 305-2/3
- Manufacturer:
- ams OSRAM
Discontinued product
- RS Stock No.:
- 654-9163P
- Mfr. Part No.:
- SFH 305-2/3
- Manufacturer:
- ams OSRAM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared, Visible Light | |
| Typical Fall Time | 6µs | |
| Typical Rise Time | 6µs | |
| Number of Channels | 1 | |
| Maximum Light Current | 1900µA | |
| Maximum Dark Current | 50nA | |
| Angle of Half Sensitivity | 32 ° | |
| Polarity | NPN | |
| Number of Pins | 2 | |
| Mounting Type | Through Hole | |
| Dimensions | 2.1 x 1.15 x 3.6mm | |
| Collector Current | 50mA | |
| Maximum Wavelength Detected | 1100nm | |
| Minimum Wavelength Detected | 450nm | |
| Spectral Range of Sensitivity | 450 → 1100 nm | |
| Width | 1.15mm | |
| Length | 2.1mm | |
| Height | 3.6mm | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared, Visible Light | ||
Typical Fall Time 6µs | ||
Typical Rise Time 6µs | ||
Number of Channels 1 | ||
Maximum Light Current 1900µA | ||
Maximum Dark Current 50nA | ||
Angle of Half Sensitivity 32 ° | ||
Polarity NPN | ||
Number of Pins 2 | ||
Mounting Type Through Hole | ||
Dimensions 2.1 x 1.15 x 3.6mm | ||
Collector Current 50mA | ||
Maximum Wavelength Detected 1100nm | ||
Minimum Wavelength Detected 450nm | ||
Spectral Range of Sensitivity 450 → 1100 nm | ||
Width 1.15mm | ||
Length 2.1mm | ||
Height 3.6mm | ||
