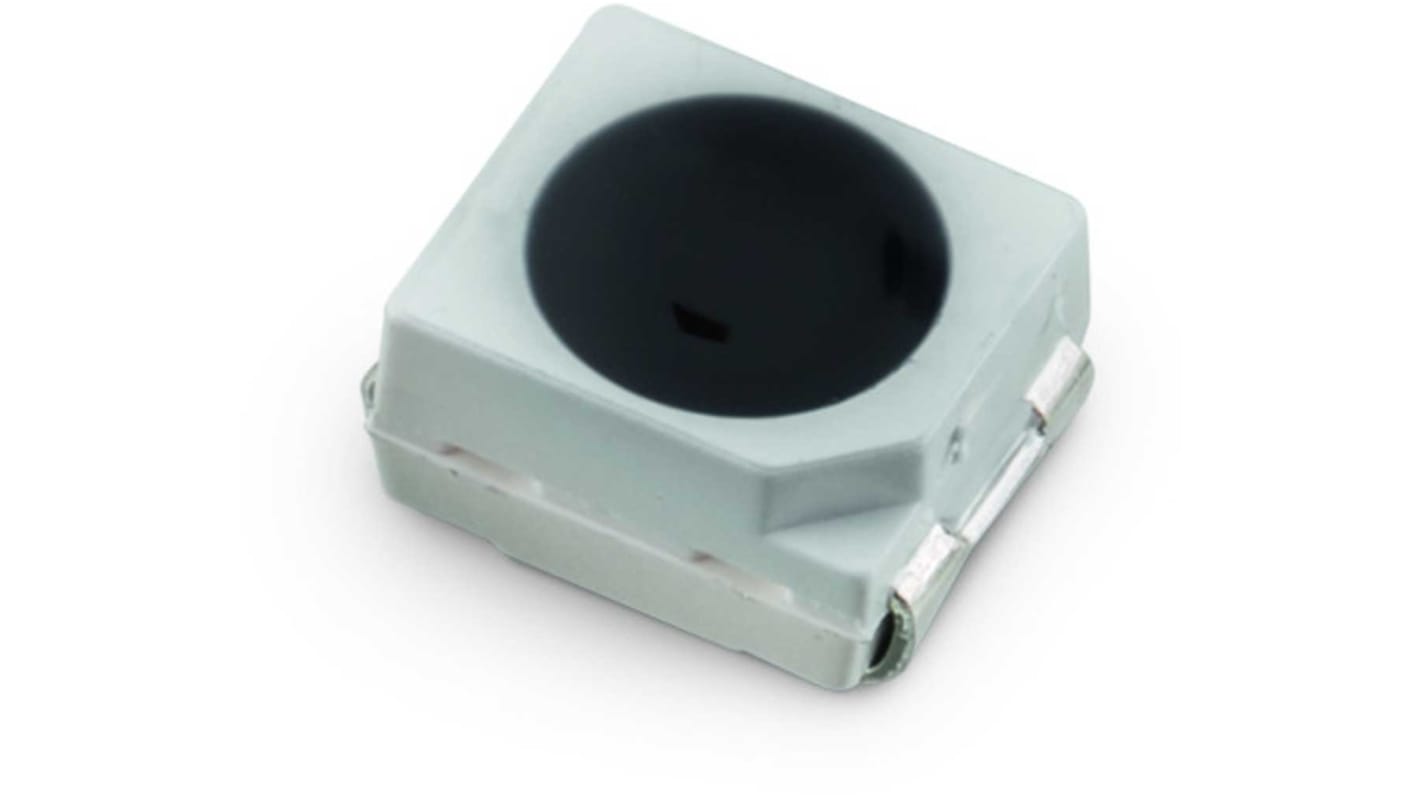

1541411NEA210 Wurth Elektronik, WL-STTB 120 ° IR Phototransistor, Surface Mount 2-Pin 3528 package
- RS Stock No.:
- 184-6984
- Mfr. Part No.:
- 1541411NEA210
- Manufacturer:
- Wurth Elektronik
View all Phototransistors
2000 In Global stock for delivery within 4 - 6 working days
Price Each (On a Reel of 2000)
MYR1.084
| units | Per Unit | Per Reel* |
| 2000 - 2000 | MYR1.084 | MYR2,168.00 |
| 4000 - 6000 | MYR1.06 | MYR2,120.00 |
| 8000 + | MYR1.04 | MYR2,080.00 |
| *price indicative | ||
- RS Stock No.:
- 184-6984
- Mfr. Part No.:
- 1541411NEA210
- Manufacturer:
- Wurth Elektronik
- COO (Country of Origin):
- TW
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
High sensitivity
Fast response time
Perfect match with IR emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Integrated daylight filter
Applications
Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter
Fast response time
Perfect match with IR emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Integrated daylight filter
Applications
Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
| Attribute | Value |
| Spectrums Detected | Infrared |
| Number of Channels | 1 |
| Maximum Dark Current | 100 (Collector Emitter)nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | 3528 |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Collector Current | 20mA |
| Maximum Wavelength Detected | 1100нм |
| Minimum Wavelength Detected | 700нм |
| Spectral Range of Sensitivity | 700 → 1100 nm |
| Height | 1.9mm |
| Emitter Collector Voltage | 5V |
| Series | WL-STTB |
| Length | 3.5mm |
| Width | 2.8mm |
| Collector Emitter Voltage | 35V |
| Output Signal Type | PLCC |
