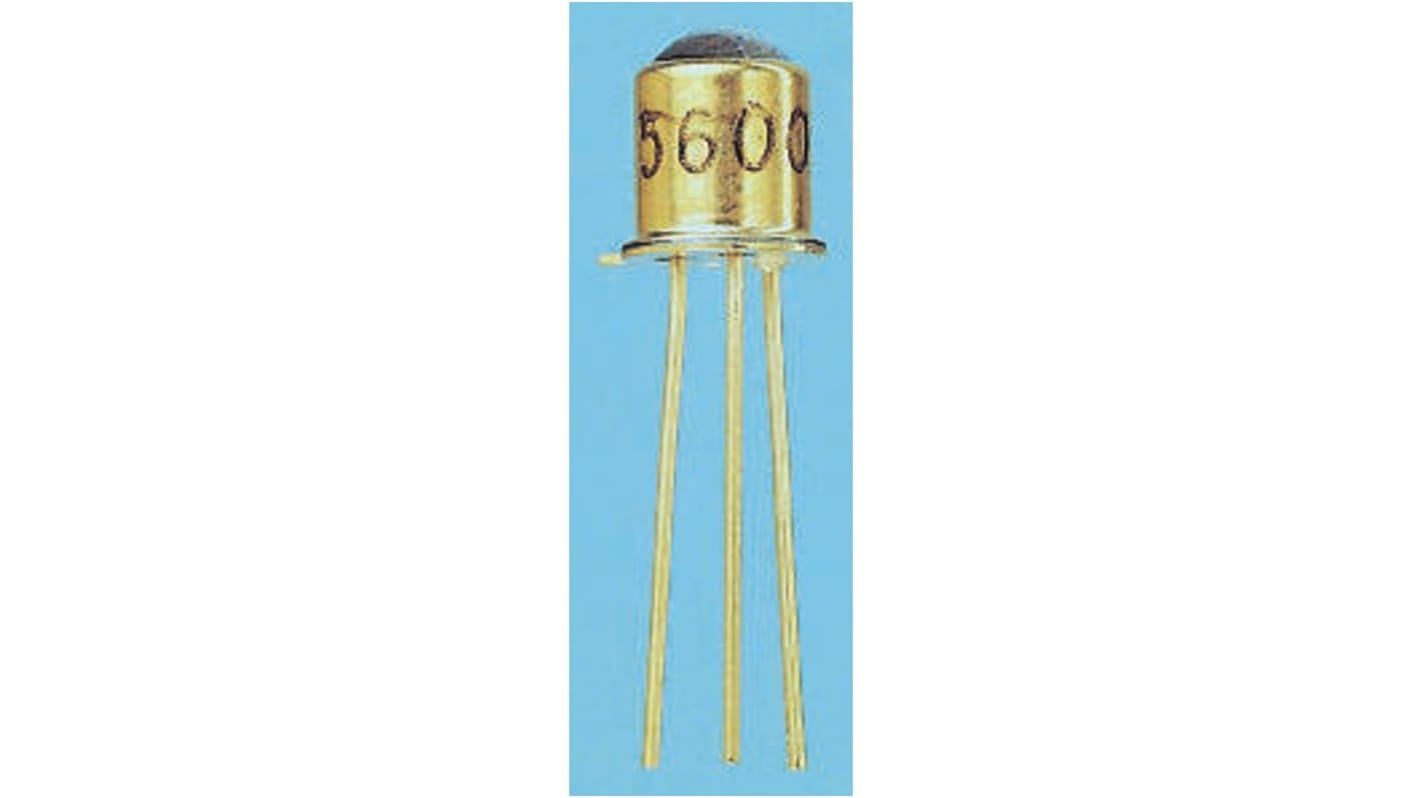

BPY 62-4 Osram Opto 16 ° IR + Visible Light Phototransistor, Through Hole 3-Pin TO-18 package

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Phototransistor TO18 Package

Phototransistors, OSRAM Opto Semiconductors

Specifications
Attribute Value
Spectrums Detected Infrared, Visible Light
Typical Fall Time 12µs
Typical Rise Time 12µs
Number of Channels 1
Maximum Light Current 5800µA
Maximum Dark Current 50nA
Angle of Half Sensitivity 16 °
Polarity NPN
Number of Pins 3
Mounting Type Through Hole
Package Type TO-18
Dimensions 5.6 x 5.6 x 6.2mm
Collector Current 100mA
Spectral Range of Sensitivity 400 → 1100 nm
Width 5.6mm
Minimum Wavelength Detected 400nm
Height 6.2mm
Maximum Wavelength Detected 1100nm
Length 5.6mm
Temporarily out of stock - back order for despatch 28/04/2020, delivery within 4 working days from despatch date
Price Each (In a Bag of 1000)
MYR 6.79
units
Per unit
Per Bag*
1000 +
MYR6.79
MYR6,790.00
*price indicative
