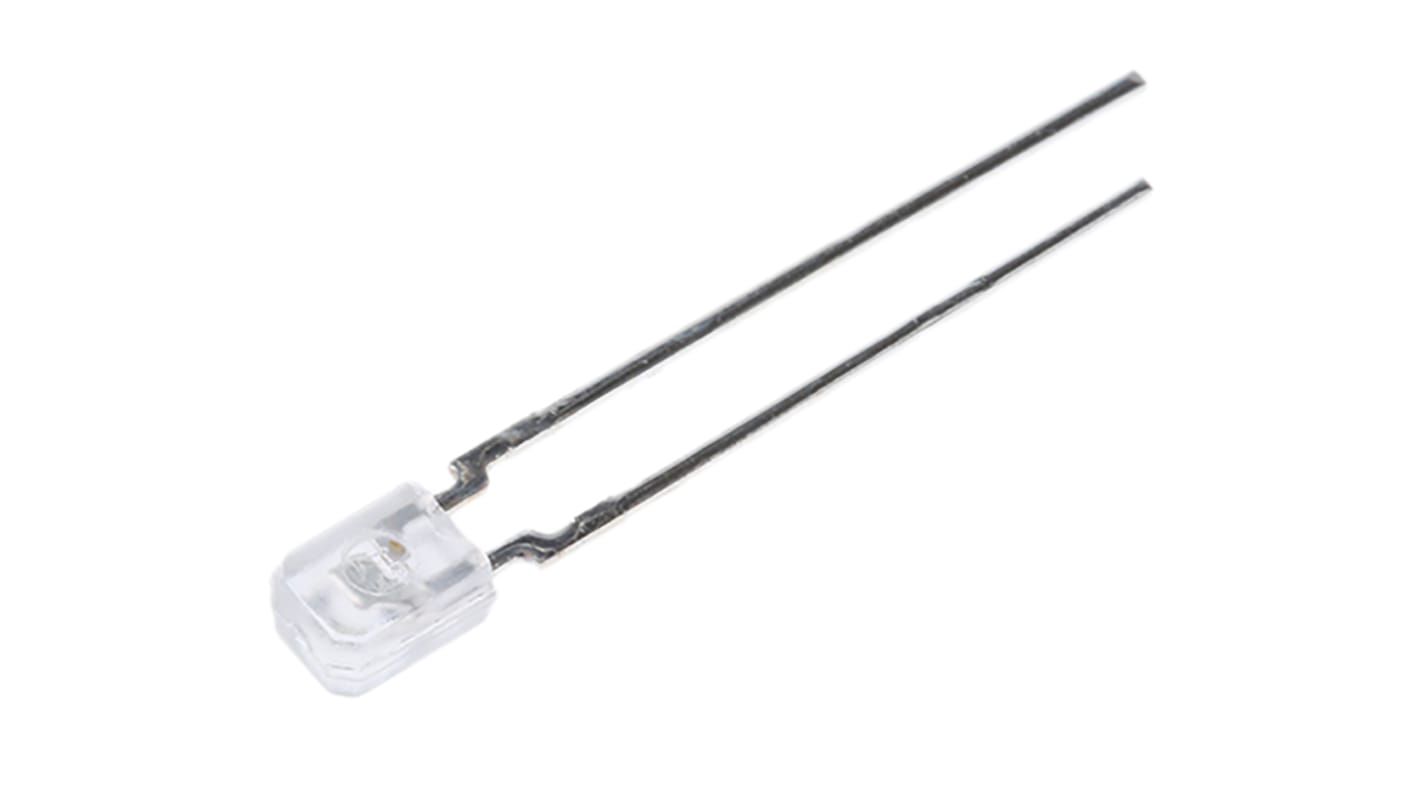

Sharp PT480E 13 ° IR Phototransistor, Through Hole 2-Pin Side Looker package
- RS Stock No.:
- 577-544
- Mfr. Part No.:
- PT480E
- Manufacturer:
- Sharp
39 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR2.63
| Units | Per Unit |
| 1 - 19 | MYR2.63 |
| 20 + | MYR2.55 |
- RS Stock No.:
- 577-544
- Mfr. Part No.:
- PT480E
- Manufacturer:
- Sharp
Technical data sheets
Legislation and Compliance
Non Compliant
Product Details
PT480 Series Phototransistors
The PT480 family, from Sharp, are a family of narrow acceptance phototransistors. They are in side looking (SL) epoxy resin packages with a domed lens on the side of the package. The PT480F devices have a black plastic package which offers a daylight blocking filter while the PT480 has a clear lens for visible and near IR radiation.
Features of the PT480 phototransistors:
Side looking (SL) package
Through-hole mounting
Clear or black plastic package
Side looking (SL) package
Through-hole mounting
Clear or black plastic package
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, Sharp
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 3.5µs |
| Typical Rise Time | 3µs |
| Maximum Dark Current | 1000nA |
| Angle of Half Sensitivity | 13 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | Side Looker |
| Dimensions | 3 x 2.95 x 21.5mm |
| Collector Current | 20mA |
| Width | 2.95mm |
| Minimum Wavelength Detected | 800nm |
| Spectral Range of Sensitivity | Maximum of 900 nm |
| Height | 21.5mm |
| Length | 3mm |
| Maximum Wavelength Detected | 900nm |
