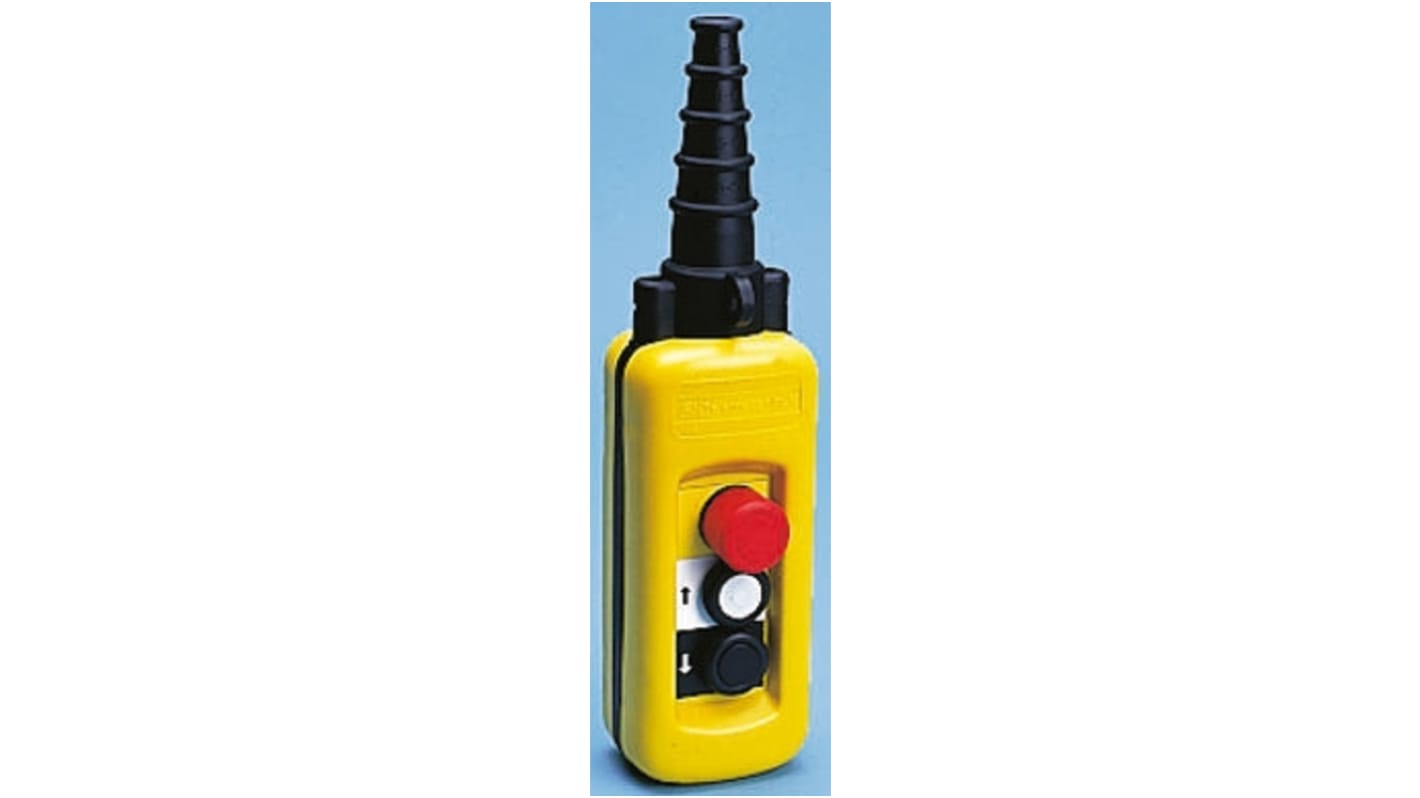

4 NO + 5 NC Push Button Pendant Station
- RS Stock No.:
- 609-4483
- Mfr. Part No.:
- XACA4813
- Manufacturer:
- Schneider Electric
Temporarily out of stock - back order for despatch 16/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR1,246.17
| Units | Per Unit |
| 1 + | MYR1,246.17 |
- RS Stock No.:
- 609-4483
- Mfr. Part No.:
- XACA4813
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
Standard Pushbutton
Created and designed for predominantly crane applications, Schneider Electrics push-button pendant station provides a covering case for the internal push button. This unit is a simple yet effective mechanical switch which is commonly used to control one function within a machine or device.
Common Applications of a Push Button Pendants Station
Pre assembled double insulated crane pendants for single speed motor applications
Mechanically interlocked between pairs
For light duty Pendant switch see also Stock no 507481
Mechanically interlocked between pairs
For light duty Pendant switch see also Stock no 507481
- Pre-assembled, ready to go
- Double insulated
- Commonly used for single speed motor applications
- Mechanically interlocked between pairs
Schneider Electric - Push Buttons
Pendant control stations are used on hoists, overhead cranes and as remote control stations. They conform to EN60947-1, EN60947-5-1, NFC63-140 and VDE0660 part 2 standards. All actuator buttons incorporate 1 N/O and 1 N/C positive action contact rated at 240Vac, 3A I th ;250Vdc, 0.27A I th ; 10A I th allowing electrical cross-interlocking if desired.
Environmental protection to IP65Fitted cable clamps and stepped cable entry bootsMechanical interlocking between each pair of opposing pushbutton actuatorsAdapters supplied for self-supporting pendant cable, with lug for chain support
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | 4 NO + 5 NC |
| IP Rating | IP65 |
| Terminal Type | Screw |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Enclosure Colour | Yellow |
| Number Of Push Buttons | 5 |
| Push Button Marking | Down Arrow, E-Stop, Left Arrow, Up Arrow |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Push Button Colour | Black, Red, White |
| Maximum Current | 3A |
| Voltage Rating | 600V |
