Push Button Pendant Station, 10A

Created and designed for predominantly standard or medium-duty control circuit applications, Schneider Electrics push-button pendant station provide a covering case for the internal push button. The enclosures are made up from a rugged, double insulated thermoplastic material. This unit is a simple yet effective mechanical switch which is commonly used to control the hoist and lowering function within a machine or device. Strategically designed for easy handling and operation, even when the user is wearing heavy work gloves.

Pre-assembled pendants for common crane applications
Shrouded, base-mounted, key-release ’Stop’ pushbutton
Switching current 10A
Right / left / hoist / lower functions

• Brought to you complete and pre-assembled
• Double insulated
• Shock and corrosive resistant
• Ease of operation
• Right, left, hoist and lower functions

• Check that the screws on the rear cover are properly tightened
• Check the condition and secureness regularly
• Try to use the genuine replacement parts for any your control stations when needed

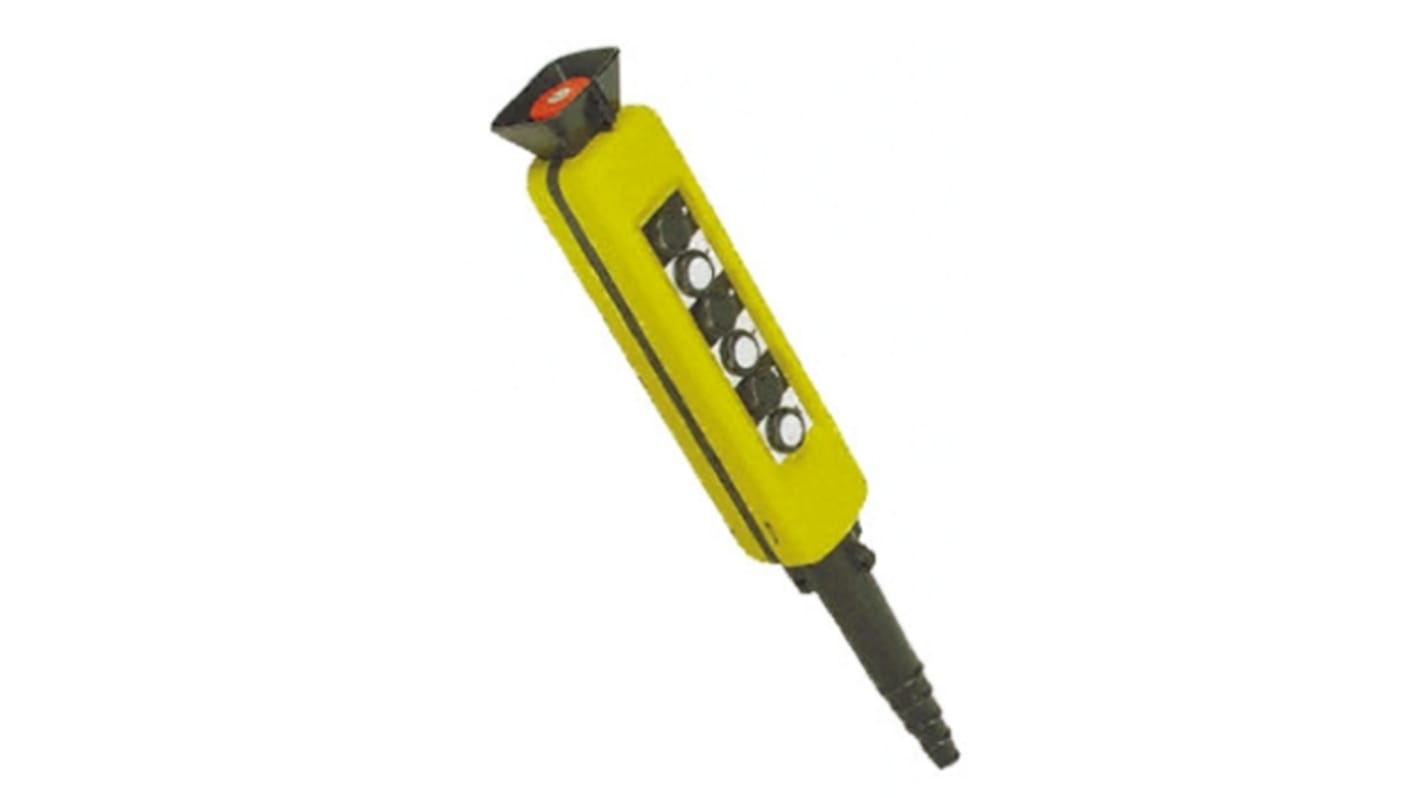

This push button pendant station by Schneider Electric is designed for industrial control applications. The station features a yellow enclosure with an IP65 rating, ensuring protection against dust and water ingress. Built for durability and reliability in harsh environments, it is a valuable addition to any industrial setup.

• Double insulated control station with a complete enclosure ready for use
• 6 push-buttons for versatile control options
• Screw clamp terminals for easy and secure connections
• Wide operating temperature range from -25°C to 70°C
• High mechanical durability with a lifespan of 1000000 cycles

• Suitable for industrial automation applications
• Ideal for controlling machinery and equipment in harsh environments

This pendant station can operate in temperatures ranging from -25°C to 70°C, making it suitable for a variety of industrial environments.

Yes, it is designed for durability and reliability in tough industrial settings, ensuring consistent performance.

The pendant station comes with screw clamp terminals for easy connections, making installation and operation simple and straightforward.

Schneider Electric - Push Buttons

Pendant control stations are used on hoists, overhead cranes and as remote control stations. They conform to EN60947-1, EN60947-5-1, NFC63-140 and VDE0660 part 2 standards. All actuator buttons incorporate 1 N/O and 1 N/C positive action contact rated at 240Vac, 3A I th ;250Vdc, 0.27A I th ; 10A I th allowing electrical cross-interlocking if desired.

Environmental protection to IP65Fitted cable clamps and stepped cable entry bootsMechanical interlocking between each pair of opposing pushbutton actuatorsAdapters supplied for self-supporting pendant cable, with lug for chain support
