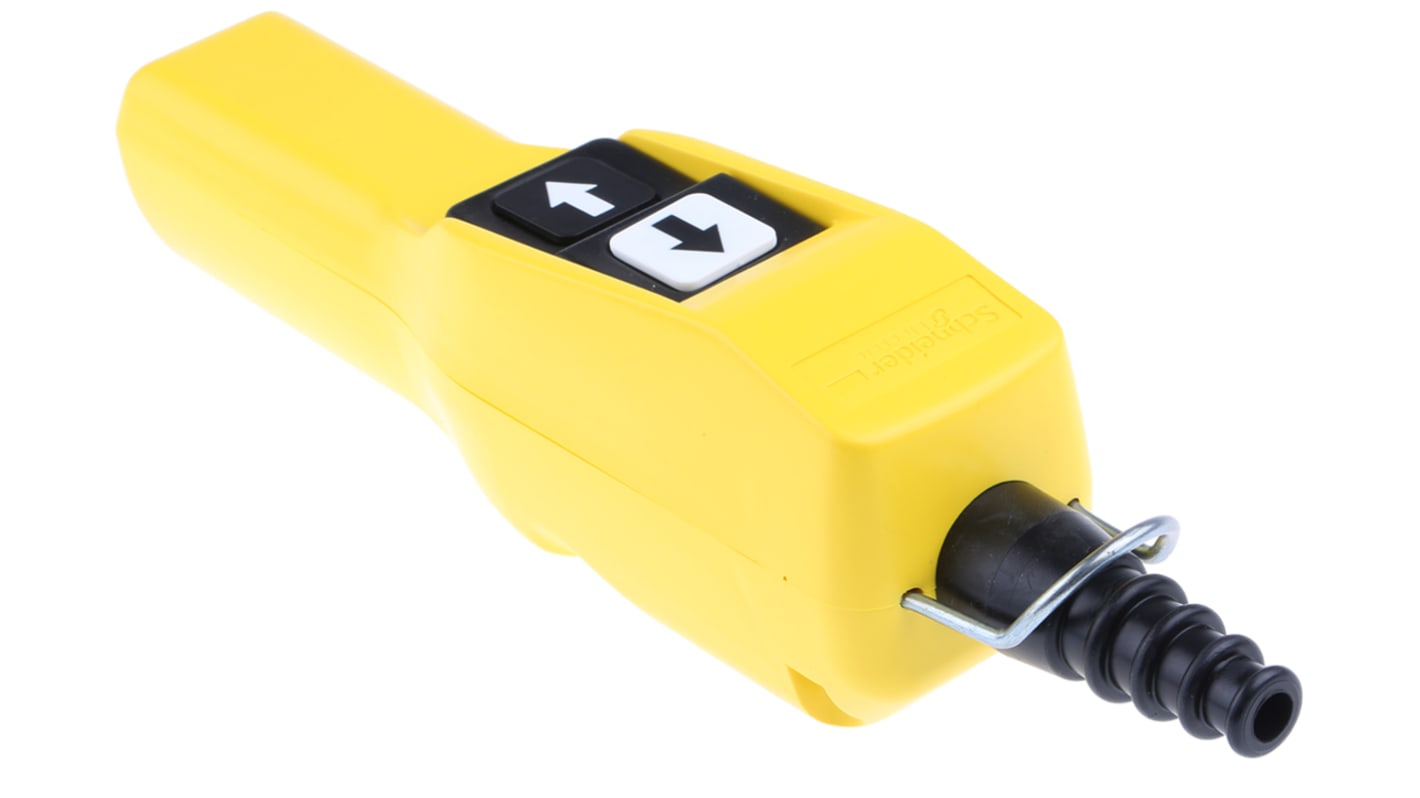

Schneider Electric 2NO/2NC Push Button Pendant Station

When you need responsive control over machinery at a distance, choose this pendant station from Schneider Electric. Two NO/NC push button controls let you activate and deactivate equipment when it's safe to do so. Thanks to its ergonomic pistol-grip design, the controller is comfortable and easy to use, even when you're wearing work gloves. The durable thermoplastic housing reliably resists shock and vibration, so it's ideally suited to the demands of heavy-duty applications.

• Clearly visible yellow body with black and white arrow markings for easy reading
• Wide operating temperature range of -25°C to +70°C for use in challenging conditions
• Straightforward screw terminal method achieves physically and electrically secure connections
• Mechanical durability of 1,000,000 cycles for a long service life

• Single-speed hoist motors
• Electric winches
• Overhead cranes

Yes, thanks to a double-insulated polypropylene housing, this pendant station has an IP65 rating, indicating it's waterproof against low-pressure jets from all directions. This means you can use it with confidence in areas where exposure to water is likely.

Schneider Electric - Push Buttons

Pendant control stations are used on hoists, overhead cranes and as remote control stations. They conform to EN60947-1, EN60947-5-1, NFC63-140 and VDE0660 part 2 standards. All actuator buttons incorporate 1 N/O and 1 N/C positive action contact rated at 240Vac, 3A I th ;250Vdc, 0.27A I th ; 10A I th allowing electrical cross-interlocking if desired.

Environmental protection to IP65Fitted cable clamps and stepped cable entry bootsMechanical interlocking between each pair of opposing pushbutton actuatorsAdapters supplied for self-supporting pendant cable, with lug for chain support
