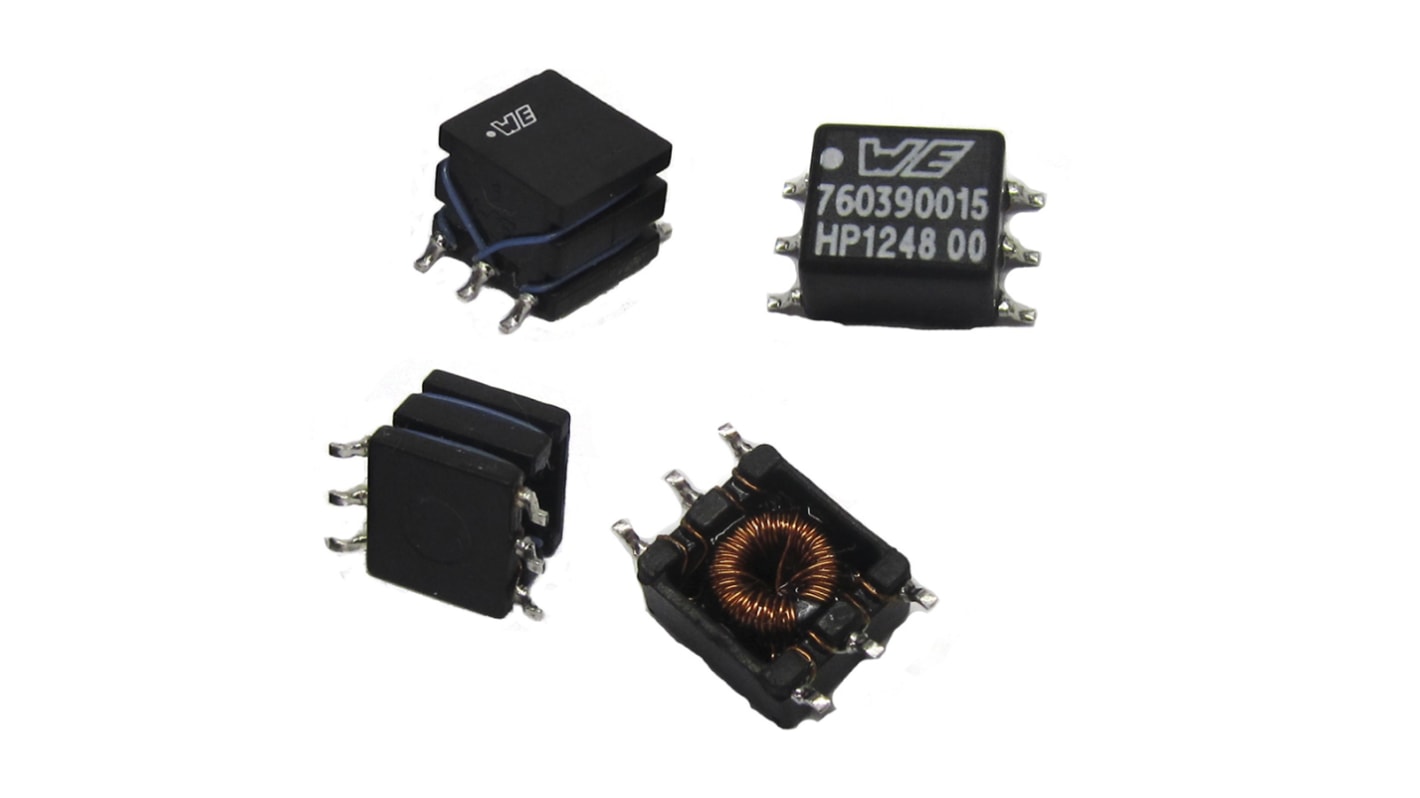

17V 1 Output Surface Mount PCB Transformer

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

MID-PPTI Push-Pull Transformers for Texas Instruments

Small size
Surface mount
Low profile
Operating temp: -40°C to 125°C
Functional, supplementary or reinforced insulation
Applications
Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs

Specifications
Attribute Value
Secondary Voltage Rating 17V
Primary Voltage Rating 5V dc
Number of Outputs 1
Length 8mm
Width 7.62mm
Depth 9.14mm
Dimensions 8 x 7.62 x 9.14mm
Mounting Type Surface Mount
Minimum Temperature -40°C
Maximum Temperature +125°C
Maximum Operating Frequency 420kHz
496 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 25.90
units
Per unit
1 - 9
MYR25.90
10 - 49
MYR24.30
50 - 99
MYR22.80
100 - 249
MYR21.70
250 +
MYR19.80
Packaging Options:
