Phoenix Contact MKDS 1.5/4 Series PCB Terminal Block, 4-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination
- RS Stock No.:
- 802-0522
- Mfr. Part No.:
- 1715048
- Manufacturer:
- Phoenix Contact
69 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR10.76
| Units | Per Unit |
| 1 + | MYR10.76 |
- RS Stock No.:
- 802-0522
- Mfr. Part No.:
- 1715048
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

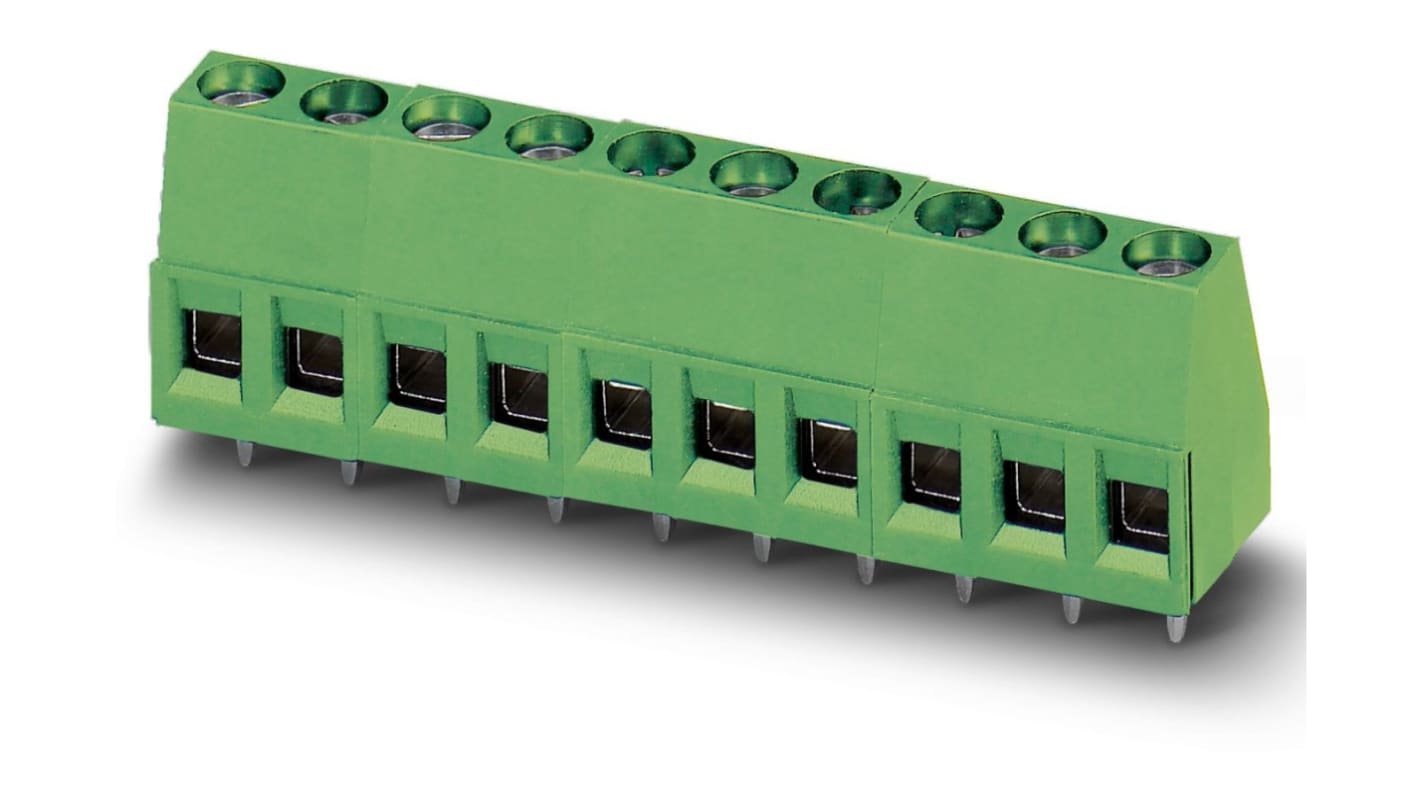

Phoenix Contact COMBICON MKDS 5.0mm PCB Terminal Blocks
5mm pitch MKDS series through hole mount PCB terminal blocks with rising cage clamp screw terminals and side interlocking. Stock numbers 804-4982, 804-5109 and 804-5231 have the postion number stamped on the housing.
For screwdriver see stock number 390-9641
For insertion bridges see stock number 802-0686 (2 way), 802-0689 (3 way), 802-0683 (4 way), 802-0692 (5 way), 802-0695 (6 way)
For screwdriver see stock number 390-9641
For insertion bridges see stock number 802-0686 (2 way), 802-0689 (3 way), 802-0683 (4 way), 802-0692 (5 way), 802-0695 (6 way)
Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Pitch | 5mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Male |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 17.5A |
| Body Orientation | Straight |
| Colour | Green |
| Voltage Rating | 400 V |
| Series | MKDS 1.5/4 |
| Material | Polyamide |
| Width | 15mm |
| Length | 9.8mm |
