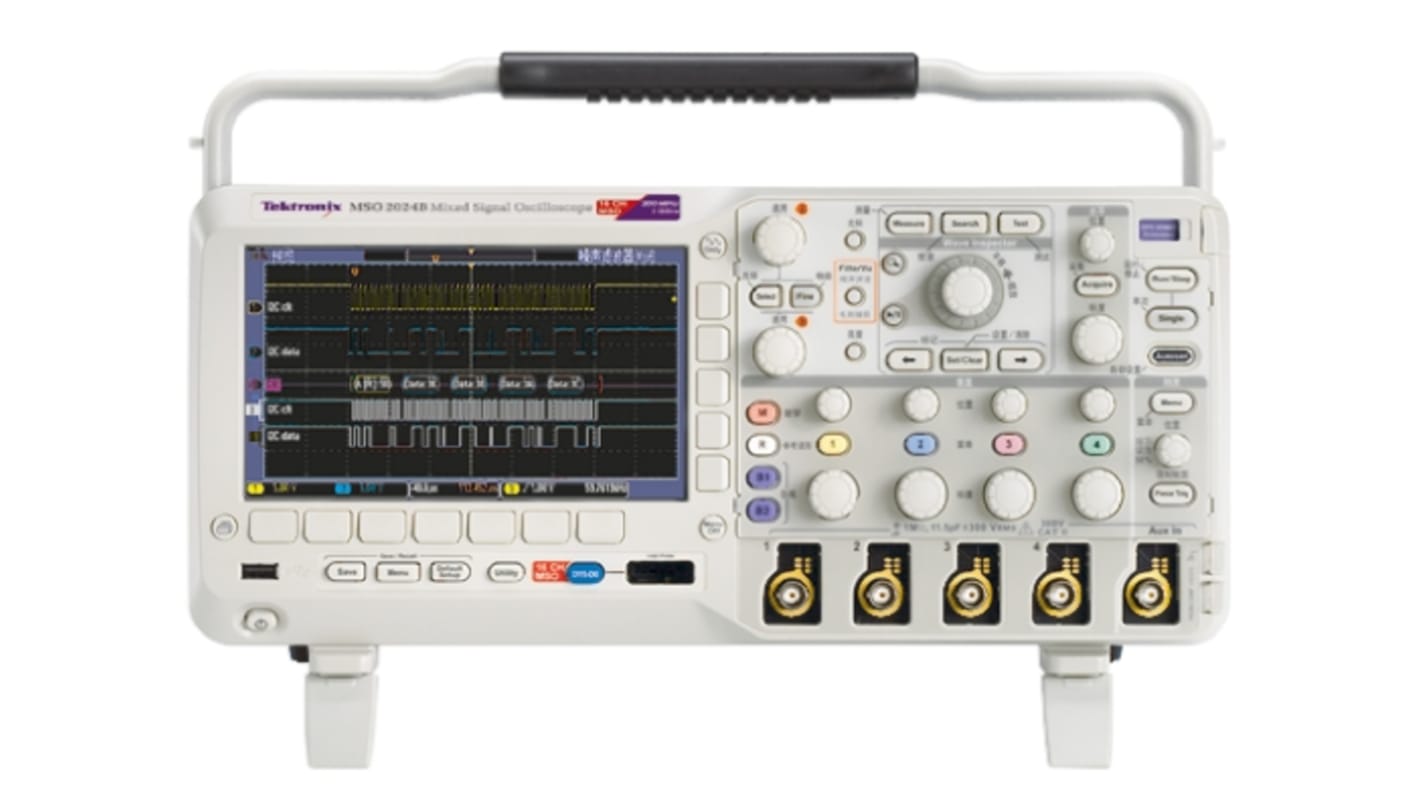

The Tektronix MSO2000B series 200MHz mixed-signal oscilloscope offers a 7inch widescreen TFT-LCD colour display. This product has 4 analogue and 14 digital channels. By using this oscilloscope users can quickly find and diagnose problems in complex designs with up to 20 channels for analysing analogue and digital signals. It allows you to capture long windows of signal activity while maintaining fine timing resolution. It has 29 automated measurements and FFT analysis for simplified waveform analysis. Connectivity USB 2.0 host port on the front panel for quick and easy data storage USB 2.0 device port on the rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer Optional 10/100 Ethernet port for network connection and video-out port to export the oscilloscope display to a monitor or projector Supplied with 10X passive probe (1 per analogue channel), installation & safety manual and translated front-panel overlay Documentation CD OpenChoice® desktop software and calibration certificates Power cord 16-channel logic probe & accessory kit Accessory bag
Features and Benefits
Maximum waveform capture rate is 5000wfm/s Input capacitance is 11.5pF Sampling rate is 1GSa/s Operating temperature ranges between 0°C and 50°C Record length is 1Mpoints/ch Safety category voltage is 300V 6-in-1 instrument integration FilterVu variable low-pass filter allows for removal of unwanted signal noise while still capturing high-frequency events Wave inspector controls provide easy navigation and automated search of waveform date TekVPI probe interface directly supports active, differential and current probes for automatic scaling and unit
Applications
Embedded design Power design EMI troubleshooting Education Manufacturing test/troubleshooting
Certifications
EC Council Directive 2004/108/EC Safety UL61010-1:2004 CAN/CSA-C22.2 No. 61010.1: 2004 EN61010-1:2001 Complies with the Low Voltage Directive 2004/108/EC for Product Safety.
