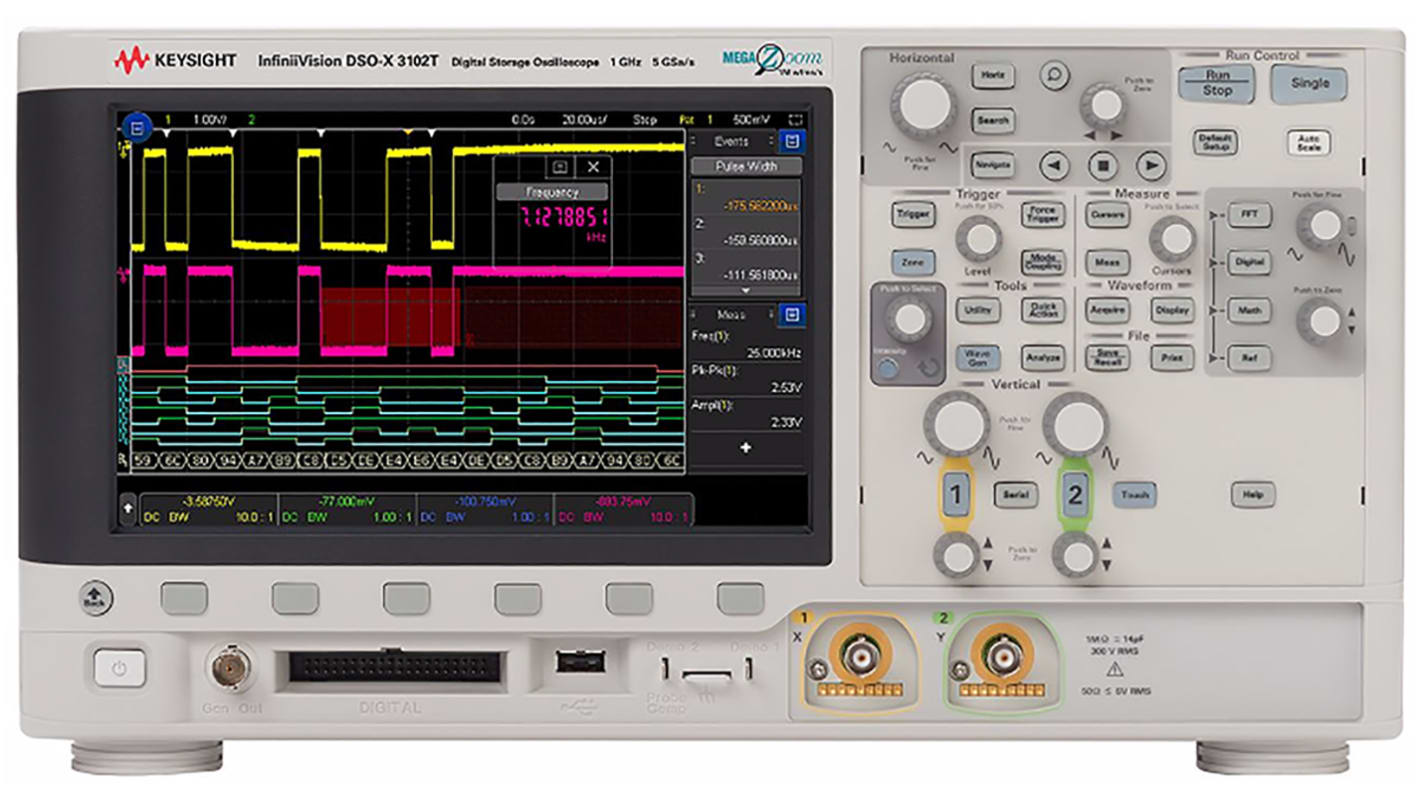

Keysight Technologies MSOX3102T InfiniiVision 3000T X Series, 1GHz Bench Oscilloscope, 2 Analogue Channels, 16 Digital

View all Oscilloscopes
Unavailable
RS will no longer stock this product.
RS Stock No.:
134-6145
Distrelec Article No.:
300-81-610
Mfr. Part No.:
MSOX3102T
Brand:
Keysight Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Keysight Technologies

Bandwidth

1GHz

Number of Analogue Channels

2

Number of Digital Channels

16

Oscilloscope Type

Bench

Interface

CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB

Oscilloscope Form

Mixed Signal

Sample Rate Random

1.25 (Digital) Gsps, 2.5 (All Analogue) Gsps, 5 (All Half Analogue) Gsps

Screen Size

8.5in

Series

InfiniiVision 3000T X

Record Length

2 (Analogue) M points/ch, 2 (Digital) M points/ch

Dimensions

381 x 204 x 142mm

Maximum Time Base

50s/div

Rise Time

≤450ps

Display Type

TFT LCD

Safety Category

CAT I ±40V

Maximum Vertical Sensitivity

5V/div

Minimum Time Base

500ps/div

Digital/Analogue

Digital

Power Source

Mains

Weight

4kg

Vertical Resolution

8 bit, 12 bit

Minimum Vertical Sensitivity

1mV/div

RoHS Status: Not Applicable

COO (Country of Origin):
MY

Keysight MSOX3102T / MSOX3104T Mixed Signal Oscilloscopes


The new Infiniivision 3000T X-Series MSO digital storage and mixed signal oscilloscopes give engineers a powerful tool for finding, isolating and resolving the most difficult signal problems.

These oscilloscopes offer modern user interfaces including an industry first 8.5 inch capacitive touch screen and new features for isolating problems faster. The 3000T X-Series also offers six instruments in one unit: oscilloscope, digital channels, digital volt meter, protocol analysis, wave-gen waveform generator, and an 8-digit counter and totaliser.

Easy to touch targets, adaptable interface and pop-up keyboard to document what you discover.

Signal detail is enhanced by an update rate of over 1 million wave forms. The likelihood of capturing and identifying random and infrequent events is higher than ever. The rate also remains constant regardless of which functions you have switched on.

Identified anomalies can be isolated with Zone Trigger by simply drawing a box around the signal area of interest on screen.

Support for a wide range of popular and emerging serial bus applications including: ARINC 429, CAN/CAN-Symbolic, CAN-FD, FlexRay, I2C, I2S, LIN, MIL-STD 1533, SENT, SPI 4-wire and UART/RS232C.

You can also correlate analogue digital and frequency data using the gated FFT for multi-domain problem solving.

Features and Benefits


• 1 GHz

• 2 analogue plus 16 digital channels (RS 134-6145); 4 analogue plus 16 digital channels (RS 134-6144)

• Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen

• Isolate signals in seconds with exclusive Zone touch triggering

• See more signal detail with the 1000000 wfms/s update rate

• Capture more data with up to 4 Mpts memory

• Expand your measurement capabilities with full upgradability: Add 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis & mask testing at any time

Note

Manufacturer’s Warranty


Keysight InfiniiVision Series


Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.
