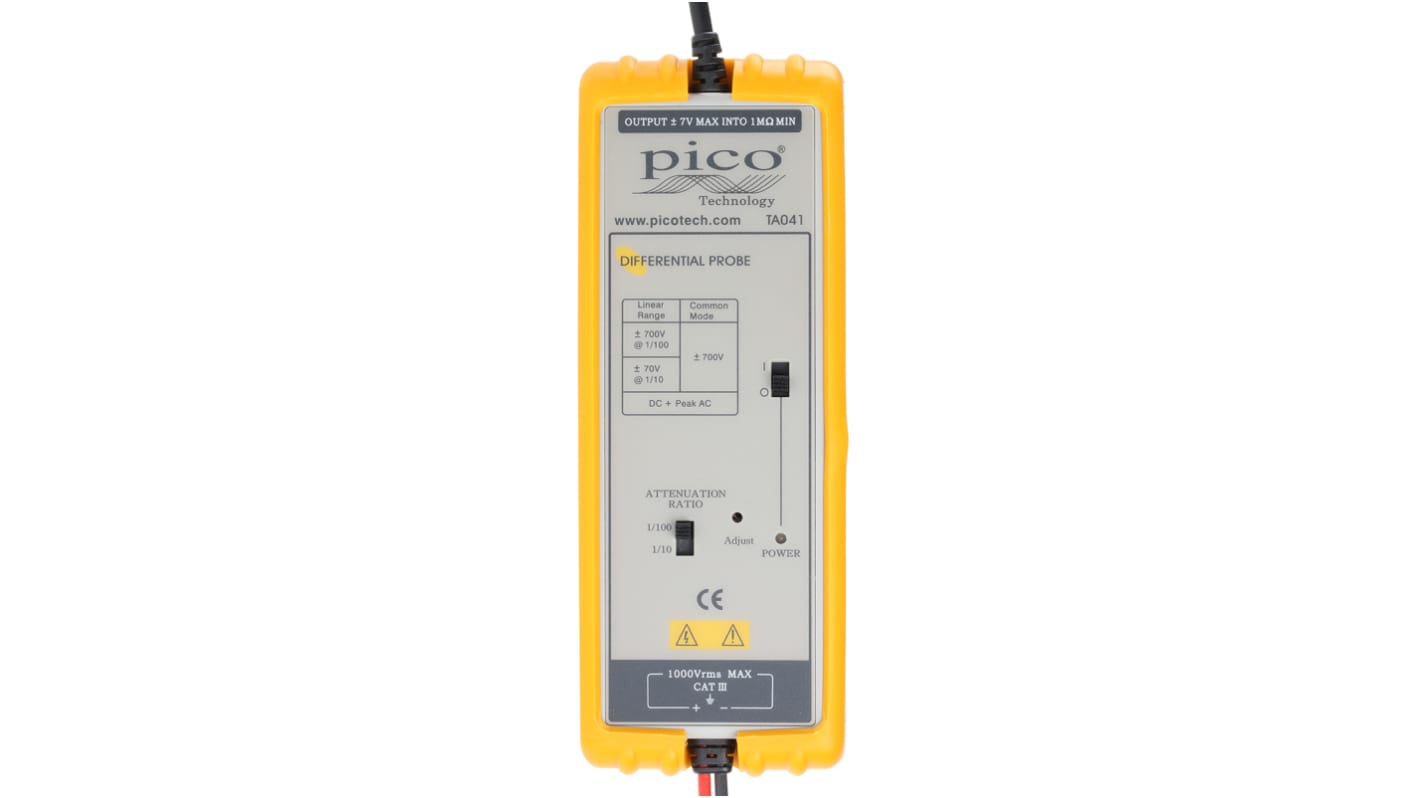

Pico 25MHz 700V Differential Probe TA041, 10:1/100:1

Pico TA041 is an active differential probe suitable for high common-mode voltage measurement applications up to ±700V (DC + peak AC). It can be used with signal speeds of up to 25MHz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high-voltage differential measurements. Applications include making safe measurements in power circuit applications and acquisition of low-speed balanced differential signals found in serial communications buses.

Bandwidth DC to 25MHz (–3 dB)
Attenuation ratio 10:1/100:1
Accuracy ±2%
Input impedance 4MΩ ll 5.5pF each side to ground
Differential range (10:1) ±70V (DC + peak AC) or 70VRMS
Maximum differential (100:1) ±700V (DC + peak AC) or 700VRMS
Common mode range ±700V (DC + peak AC) or 700VRMS (10:1 & 100:1)
Absolute maximum voltage (differential or common mode) ±1400V (DC + peak AC) or 1000VRMS CATIII (10:1 & 100:1)
Swing ±7V into 2kΩ load
Offset (typical) <±5mV
Noise (typical) 0.7mVRMS
Source impedance (typical) 1Ω @ 1kHz, 8Ω @ 20kHz
CMRR (typical) 86dB @ 50Hz; 66dB @ 1MHz
Ambient operating temperature -10 to +40 °C
Ambient storage temperature -30 to +70°C
Ambient operating humidity 25 to 85% RH
Power requirement 4xAA cells or 6VDC/60mA mains adaptor or regulated 9VDC/40mA mains adaptor
Length of input leads 45cm
Length of BNC lead 95cm
Weight 400g
Dimensions 170 x 63 x 21 mm

Pico Technology Oscilloscope Probe

The Pico Technology TA041 oscilloscope probe is an active differential probe, suitable for high common-mode voltage measurement applications up to ±700V. It can be used with a signal speed of up to 25Hz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high voltage differential measurements.

Features and Benefits

• Bandwidth is DC to 25MHz (–3dB)
• Attenuation ratio is 10:1/100:1
• Accuracy is ±2%
• Input impedance is 4Mohm ll5.5pF each side to ground
• Differential range is (10:1) ±70V (DC + peak AC) or 70VRMS
• Maximum differential is (100:1) ±700V (DC + peak AC) or 700VRMS
• Common mode range is ±700V (DC + peak AC) or 700VRMS (10:1 & 100:1)
• Absolute maximum voltage is ±1400V (DC + peak AC) or 1000VRMS (10:1 & 100:1)
• Swing is ±7V into 2kohm load
• Offset (typical) is <±5mV
• Noise (typical) is 0.7mVRMS
• Source impedance is 1ohm at 1kHz and 8ohm at 20kHz
• CMRR (typical) is 86dB at 50Hz and 66dB at 1MHz
• Ambient operating temperature ranges between -10°C and 40°C
• Power requirement 4xAA cells or 6VDC/60mA mains adaptor or regulated 9VDC/40mA mains adaptor

Applications

• Safe measurement in power circuit
• Acquisition of low speed balanced differential signals found in serial communications buses
• Transients in switching power supplies, inverters and motor drives, electronic ballasts and CRT displays
• Signals in the milliV range from sensors and other instrumentation

Certifications

• IEC-1010.1
• IEC-1010.2-031 CAT III
• Pollution Degree 2.

Specifications
Attribute Value
Probe Type Active, Differential
Attenuation 1:10, 1:100
Bandwidth 25MHz
Maximum Common Mode Input Voltage 700V
Number of Probes 2
Safety Category Level CAT III
Safety Category Voltage ±700 V, 700 Vrms
Safety Category CAT III ±700 V, 700 Vrms
