Multi Contact 68.9433-28 Oscilloscope Probe, Probe Type: Passive 500MHz

  • RS Stock No. 825-1212
  • Mfr. Part No. 68.9433-28
  • Manufacturer Multi Contact
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

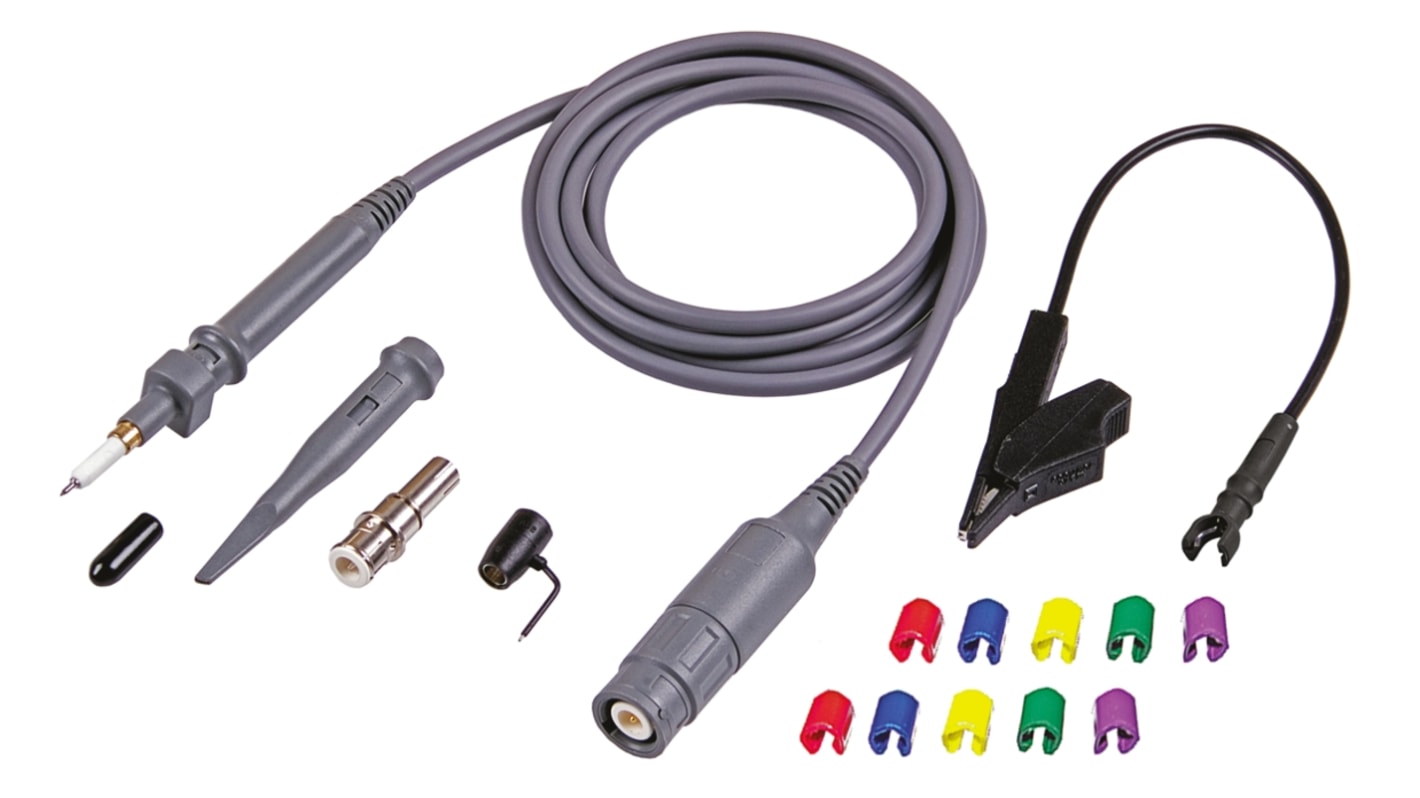

Isoprobe IV 10:1 500MHz test probe set, CAT III

Isoprobe IV 10:1 500MHz test probe set, comprising of a an Isoprobe IV 10:1 500Mhz test lead and a comprehensive assortment of accessories for use with the primary lead, including insulating sleeve, hook clip, uninsulated push-on BNC adaptor and more. The Isoprobe test lead is built on a highly flexible PVC insulated coaxial lead with a BNC plug with built in compensation unit and a wide frequency range combined with low input resistance and a facility for connecting the reference lead in to the front part of the probe.

Rated voltage 1000V, CAT III (600V CAT IV) (Max.3540 V, CAT I)
Dividing ratio 10:1
Input capacitance 11 pF
Input resistance 10 MΩ
Frequency range 0-500 Mhz
120cm in length

Multi-Contact Test Kits

Specifications
Attribute Value
Probe Type Passive
Attenuation 1:10
Bandwidth 500MHz
Connector Type BNC
Model Number p 68.9433-28
Number of Probes 1
Safety Category Level CAT III
Safety Category Voltage 300V
Series SET Isoprobe
Safety Category CAT III 300 V
17 In Global stock for delivery within 4 - 6 working days
Price 1 Set
MYR 356.71
Set(s)
1 +
MYR356.71
