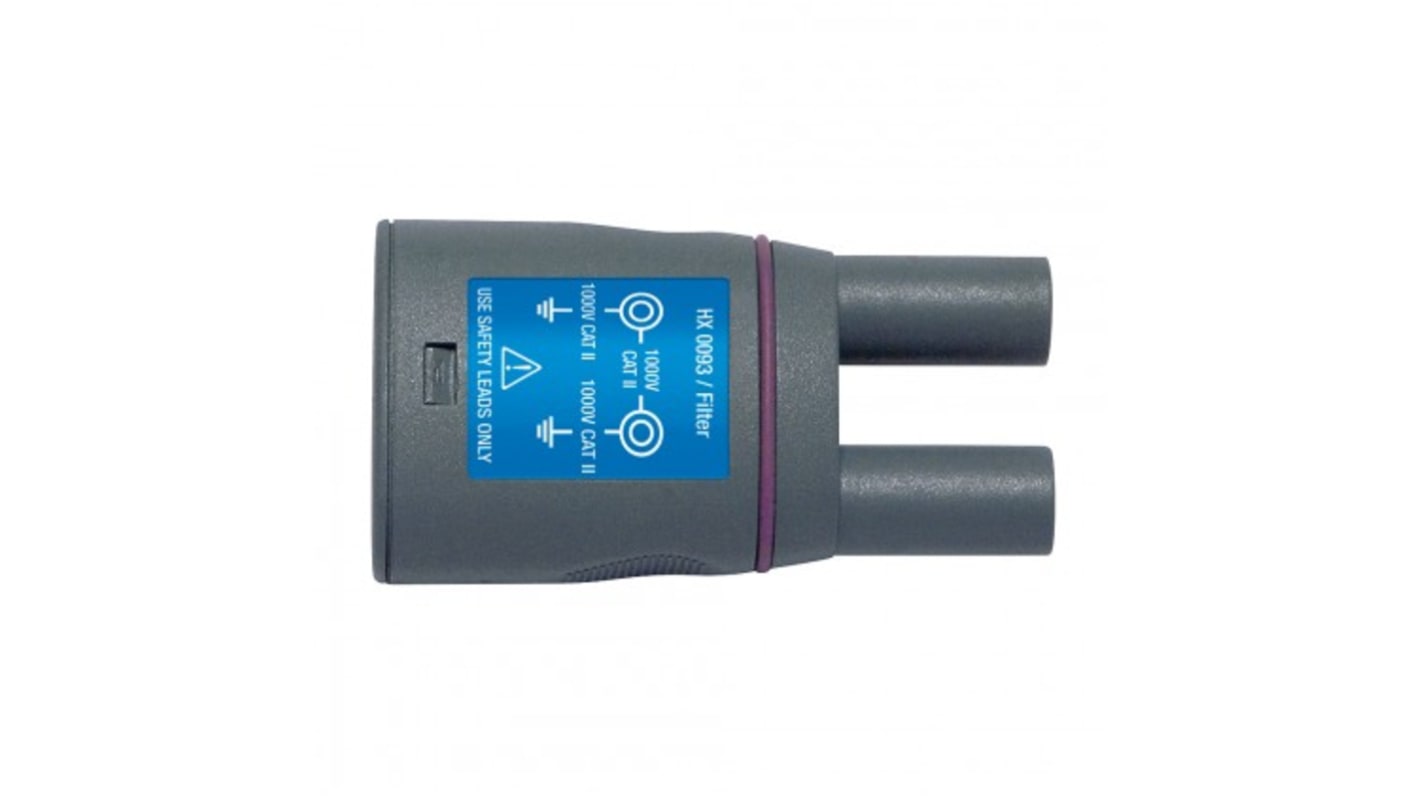

Metrix HX0093 Banana Adapter for Use with SCOPIX Oscilloscopes
- RS Stock No.:
- 227-4852
- Mfr. Part No.:
- HX0093
- Manufacturer:
- Metrix
Temporarily out of stock - back order for despatch 25/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR1,296.16
| Units | Per Unit |
| 1 + | MYR1,296.16 |
- RS Stock No.:
- 227-4852
- Mfr. Part No.:
- HX0093
- Manufacturer:
- Metrix
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
The Metrix HX0093 is a third-order low-pass filter with the cut-off frequency set to 300 Hz. It can be used to isolate the 50 Hz or 60 Hz fundamental for measurements on PWM-controlled electric motors.
Reference conditions Temperature: from 18° C to 28° C
Relative humidity: from 20 % to 75 %
Use conditions Altitude < 2000 m, indoors
Pass-band 3 dB at 300 Hz
60 dB attenuation / decade from 300 Hz
Relative humidity: from 20 % to 75 %
Use conditions Altitude < 2000 m, indoors
Pass-band 3 dB at 300 Hz
60 dB attenuation / decade from 300 Hz
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Banana Adapter |
| Oscilloscope Type | Digital |
| For Use With | SCOPIX Oscilloscopes |
| Model Number p | HX0093 |
