Units	Per Unit	Per Pack**
5 - 5	MYR2.584	MYR12.92
10 - 95	MYR2.508	MYR12.54
100 +	MYR2.432	MYR12.16

Select all	Attribute	Value
	Brand	Microchip
	Amplifier Type	General Purpose
	Mounting Type	Surface Mount
	Package Type	SOIC
	Power Supply Type	Single
	Number of Channels per Chip	1
	Pin Count	8
	Typical Single Supply Voltage	3 V, 5 V
	Typical Gain Bandwidth Product	2.8MHz
	Typical Slew Rate	2.3V/µs
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+85 °C
	Typical Voltage Gain	115 dB
	Rail to Rail	Rail to Rail Output
	Width	3.9mm
	Typical Input Voltage Noise Density	29nV/√Hz
	Height	1.25mm
	Dimensions	4.9 x 3.9 x 1.25mm
	Length	4.9mm

	Select all
	Brand Microchip
	Amplifier Type General Purpose
	Mounting Type Surface Mount
	Package Type SOIC
	Power Supply Type Single
	Number of Channels per Chip 1
	Pin Count 8
	Typical Single Supply Voltage 3 V, 5 V
	Typical Gain Bandwidth Product 2.8MHz
	Typical Slew Rate 2.3V/µs
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +85 °C
	Typical Voltage Gain 115 dB
	Rail to Rail Rail to Rail Output
	Width 3.9mm
	Typical Input Voltage Noise Density 29nV/√Hz
	Height 1.25mm
	Dimensions 4.9 x 3.9 x 1.25mm
	Length 4.9mm

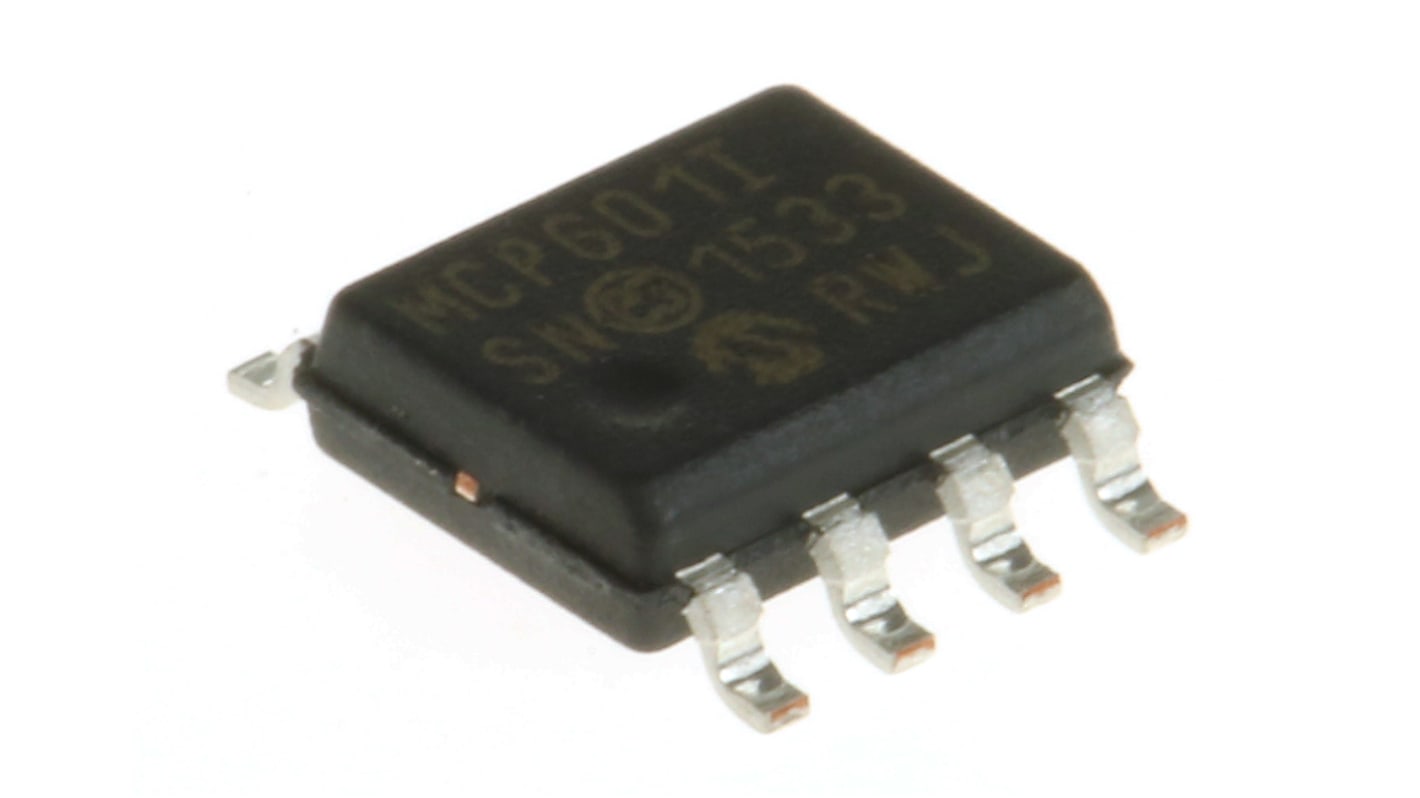

MCP601-I/SN Microchip, Op Amp, RRO, 2.8MHz, 3 V, 5 V, 8-Pin SOIC

FREE delivery for orders over MYR500.00

MCP601/602/603/604 Operational Amplifiers
