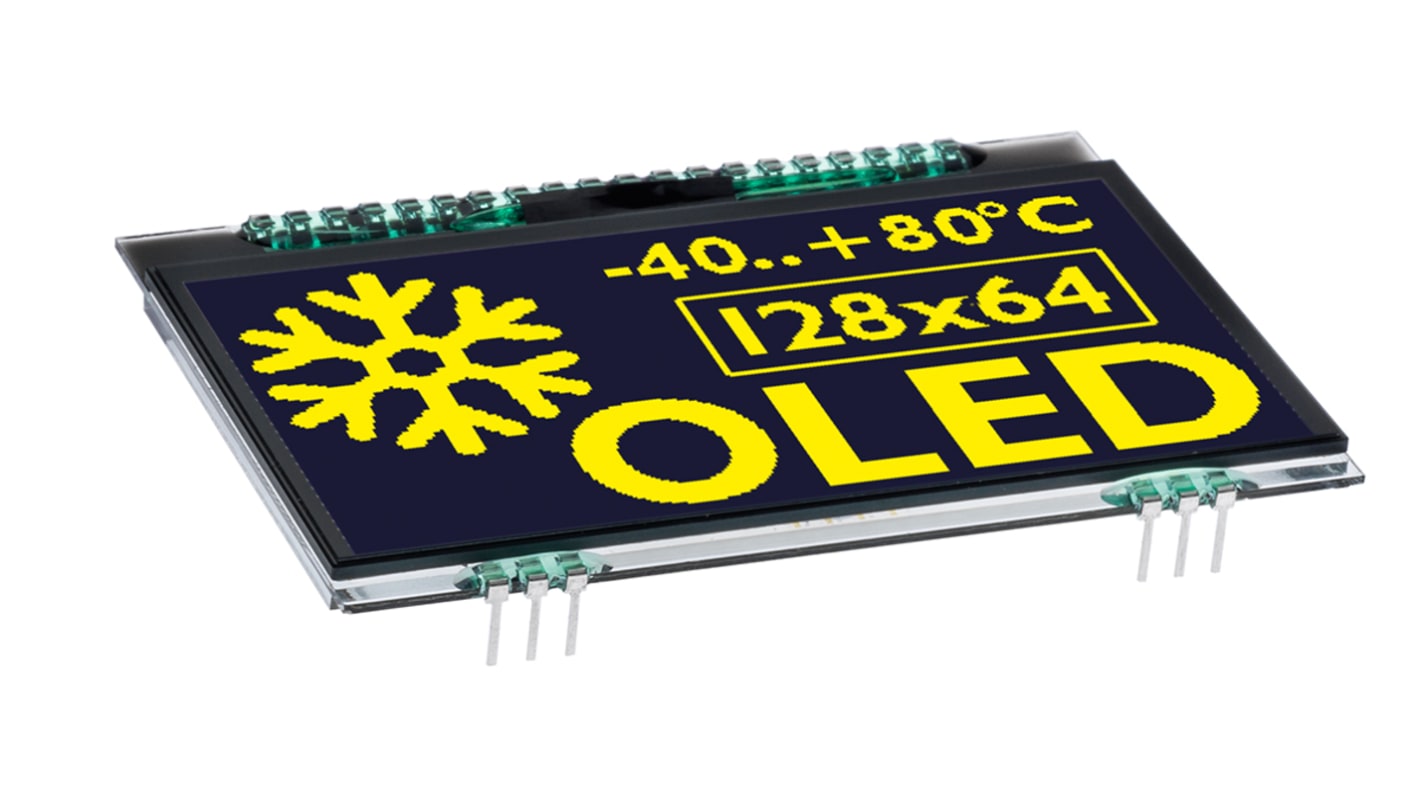

Display Visions 2.9in Yellow OLED Display 128 x 64pixels Graphics I2C, SPI Interface
- RS Stock No.:
- 163-6879
- Mfr. Part No.:
- EA OLEDL128-6LGA
- Manufacturer:
- Display Visions
Temporarily out of stock - back order for despatch 02/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR314.93
| Units | Per Unit |
| 1 + | MYR314.93 |
- RS Stock No.:
- 163-6879
- Mfr. Part No.:
- EA OLEDL128-6LGA
- Manufacturer:
- Display Visions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Now the worldwide first OLED display family with pins is available! Pins with pitch 2.54mm provide a much faster and easier design, just put the display directly on a breadboard and application.More than this: even in mass production the pins facilitate all mounting needs automatically. There's no need for any mechanical construction: simply solder the display into a pcb or plug with sockets.
Top. -40..+80°C (-40..+176°F)
From ice cold to brooding heat
extreme wide viewing angle of more than 170°
contrast > 1:1000
display response time typ. 10μs (even at -40°C)
From ice cold to brooding heat
extreme wide viewing angle of more than 170°
contrast > 1:1000
display response time typ. 10μs (even at -40°C)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 2.9in |
| Viewing Area Dimensions | 37 x 65mm |
| Matrix Type | Active |
| Display Colours | Yellow |
| Resolution | 128 x 64pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | Graphics |
| Interface Ports | I2C, SPI |
| Dimensions | 68 x 2.1 x 51mm |
| Depth | 2.1mm |
| Height | 51mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80°C |
| Viewing Area Height | 37mm |
| Viewing Area Width | 65mm |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 13 V dc |
| Width | 68mm |
| Series | EA |
