- RS Stock No.:
- 395-0318
- Mfr. Part No.:
- GV2ME03
- Manufacturer:
- Schneider Electric
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
17 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR313.97
You pay
MYR298.27
Units | Per Unit |
1 + | MYR298.27 |
- RS Stock No.:
- 395-0318
- Mfr. Part No.:
- GV2ME03
- Manufacturer:
- Schneider Electric
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Motor Circuit Breakers - GV2-ME
Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.
Features & Benefits
For use with the TeSys contactor up to 15kW – for typical contactor see (stock no. 394-9813)
Provides short-circuit and overload protection
Lockable in the OFF position
Auxiliary contacts may be used to signal OFF or tripped conditions
Screw termination
Provides short-circuit and overload protection
Lockable in the OFF position
Auxiliary contacts may be used to signal OFF or tripped conditions
Screw termination
Applications
Electrical Motor Control and protection
Easily assembled into any configuration by screw or clip-fixing onto mounting rails.
Easily assembled into any configuration by screw or clip-fixing onto mounting rails.
How do you select the right Motor Protection Circuit Breaker?
MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.
To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.
To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.
Note
For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)
Approvals
UL Listed, CSA Certified

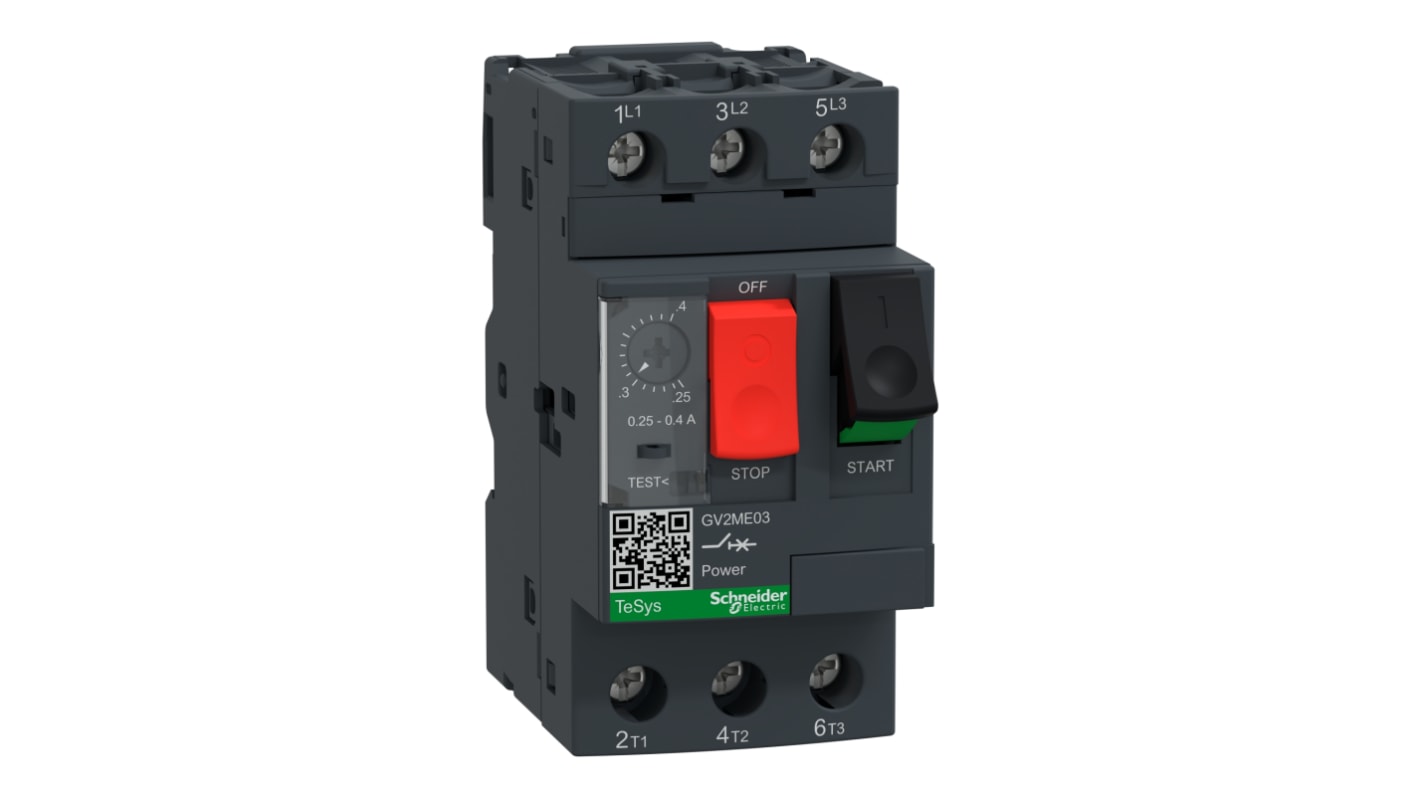

Schneider Electric Motor Protection Circuit Breaker - GV2ME03.
- Significantly reduces downtime of machinery which allows operations to operate smoothly and safe.
- Forms part of the TeSys range of products, known as the TeSys GV2 (Green Premium).
- Short name GV2ME.
- Application – Motor.
- Thermal magnetic trip.
- 3 poles.
- AC network type.
- The network frequency is 50/60 Hz which conforms to IEC 60947-4-1.
- Option to mount by clips (35 mm symmetrical DIN Rail), Panel Screwed (with adaptor plate).
- Users can choose if they would like to mount the circuit breaker horizontally or vertically (any operating position).
- Pushbutton control type.
- 0.4 A Rated current.
- This motor protection circuit breaker features an ingress protection rating of IP20, this means that it is protected against solid objects that are over 12.5mm such as hands and large tools. This IP rating also means that the circuit breaker has no protection against liquid.
- Mechanically durable for up to 1000000 cycles.
- Electrical durability up to 1000000 cycles for AC-3 at 440 V.
- Dimensions - H89mm x W45mm x D78.5mm, New weight 0.26 kg.
- Motor power kW – 0.09 KW at 400/415 V AC 50/60 Hz.
GV2ME03 Standards.
- EN/IEC 60947-2, EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, IP20, IK04.
GV2ME03 Fire resistance.
- 960°C to IEC 60695-2-1.
GV2ME03 Certification.
- IECEE CB Scheme, UL, CSA, CCC, EAC, ATEX, BV, LROS (Lloyds register of shipping), DNV-GL, RINA.
Specifications
Attribute | Value |
---|---|
Current Rating | 0.25 → 0.4 A |
Range | TeSys |
Motor Protection Component | Circuit Breaker |
Supply Voltage | 690 V |
Series | GV2ME |
Overall Length | 89mm |
Overall Width | 44.5mm |
Overall Depth | 78.2mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Voltage Rating | 690 V |
Breaking Capacity | 3 kA |
Number of Poles | 3P |
Better World Product | Yes |
Better World Verification | Green Premium |
Terminal Type | Screw |
Control Voltage | 0.25 → 0.4 A |
