- RS Stock No.:
- 214-8084
- Mfr. Part No.:

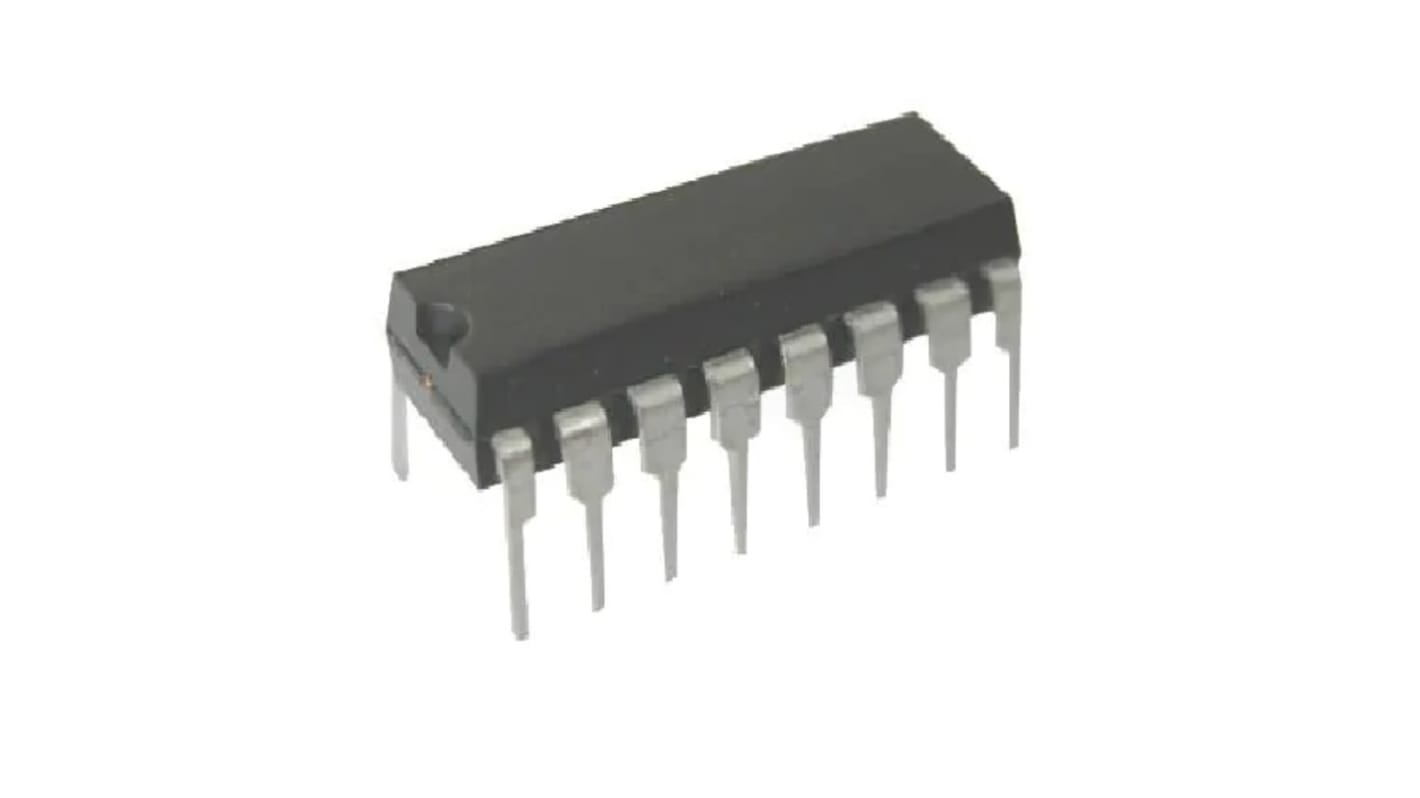

- TB67S112PG(O,HJ)
- Manufacturer:
- Toshiba
970 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR9.184
Units | Per Unit | Per Pack* |
5 - 245 | MYR9.184 | MYR45.92 |
250 - 495 | MYR8.158 | MYR40.79 |
500 + | MYR7.344 | MYR36.72 |
*price indicative |
- RS Stock No.:
- 214-8084
- Mfr. Part No.:
- TB67S112PG(O,HJ)
- Manufacturer:
- Toshiba
Technical data sheets
Legislation and Compliance
Product Details
The Toshiba solenoid driver has parallel input. Using the BiCD process, the output voltage of 50 V, and the output current of 1.5 A/ch (absolute maximum rating) are realized.
Capable of driving up to two solenoids simultaneously
Capable of driving a unipolar stepping motor with two chips
Built-in over current detection (automatic return / time control) at each output
Built-in thermal shutdown detection (automatic return / time control), which detects errors of the whole device
Built-in output MOSFET for low ON resistance (0.3 Ω (typ.))
High voltage and large current
Built-in various error detection functions (Thermal shutdown (TSD), over current detection (ISD), and Under voltage lockout(UVLO))
Capable of driving a unipolar stepping motor with two chips
Built-in over current detection (automatic return / time control) at each output
Built-in thermal shutdown detection (automatic return / time control), which detects errors of the whole device
Built-in output MOSFET for low ON resistance (0.3 Ω (typ.))
High voltage and large current
Built-in various error detection functions (Thermal shutdown (TSD), over current detection (ISD), and Under voltage lockout(UVLO))
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Motor Type | BLDC |
Output Configuration | Half Bridge |
Maximum Output Current | 1.5A |
Maximum Supply Voltage | 47 V |
Mounting Type | Through Hole |
Package Type | DIP |
Pin Count | 16 |
