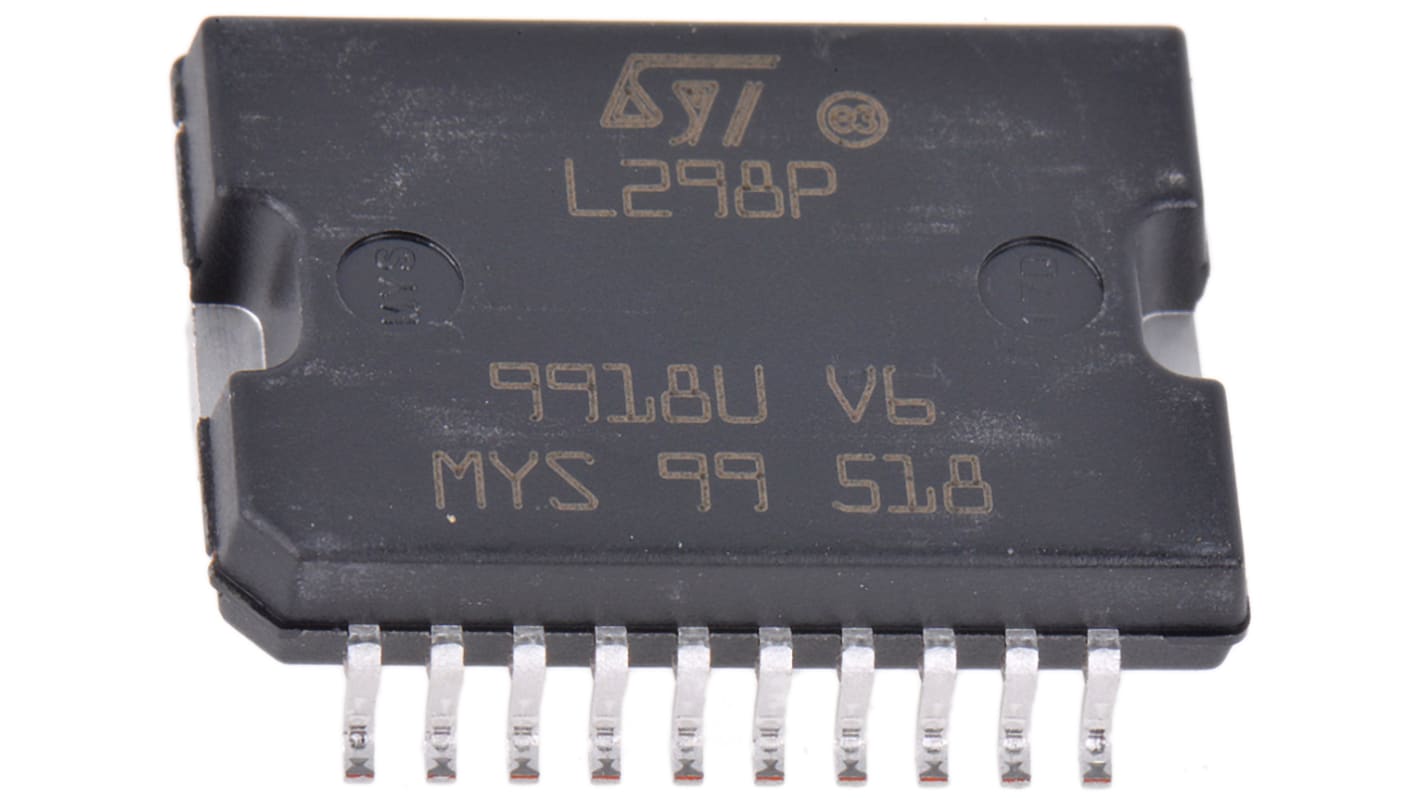

STMicroelectronics L298P013TR, Brushed Motor Driver IC, 46 V 4A 20-Pin, PowerSO

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

L298 Dual Full Bridge Motor Driver

ST Microelectronics presents its L298 dual full bridge driver series. The L298 series from ST is an integrated high voltage, high current dual full bridge driver. These devices are specially designed to accept standard TTL logic and drive inductive loads in Relays, Solenoids, DC and Stepper Motors. Featured are two enable inputs that allow the L298 to be enabled or disabled independently of the input signals. The emitters of the lower transistors of each bridge are connected together, the corresponding external terminal can be used to connect an external sensing resistor. In addition, a supply input is provided so that the logic works at a lower voltage.

Features

  • Operating supply voltage up to 46 V

  • Total DC current of up to 4 A

  • Low saturation voltage

  • Over-temperature protection

  • Logical "0" input voltage up to 1.5 V (high noise immunity)

What are Motor Driver IC's?

Motor Driver ICs are current amplifiers and are an essential component of motor interfacing. The motor driver integrated circuit chip acts as the interface between a microprocessor or microcontroller, and a motor. As microprocessors tend to operate at lower currents, and motors at higher, motor driver ICs are needed to supply current to the motor as needed. The RS Components range of Motor Driver ICs includes models from leading brands, in various types and configurations to support your design needs.

Motor Controllers & Drivers, STMicroelectronics

Specifications
Attribute Value
Motor Type Brushed DC
Output Configuration Dual Full Bridge
Maximum IGBT Collector Current 4A
Maximum Collector Emitter Voltage 46 V
Mounting Type Surface Mount
Package Type PowerSO
Maximum Operating Supply Voltage 46 V
Pin Count 20
Minimum Operating Supply Voltage 4.8 V
Typical Switching Frequency 25kHz
Minimum Operating Temperature -25 °C
Dimensions 16 x 11.1 x 3.3mm
Height 3.3mm
Width 11.1mm
Length 16mm
Maximum Operating Temperature +130 °C
600 In Global stock for delivery within 4 - 6 working days
Price Each (On a Reel of 600)
MYR 21.895
units
Per unit
Per Reel*
600 +
MYR21.895
MYR13,137.00
*price indicative
