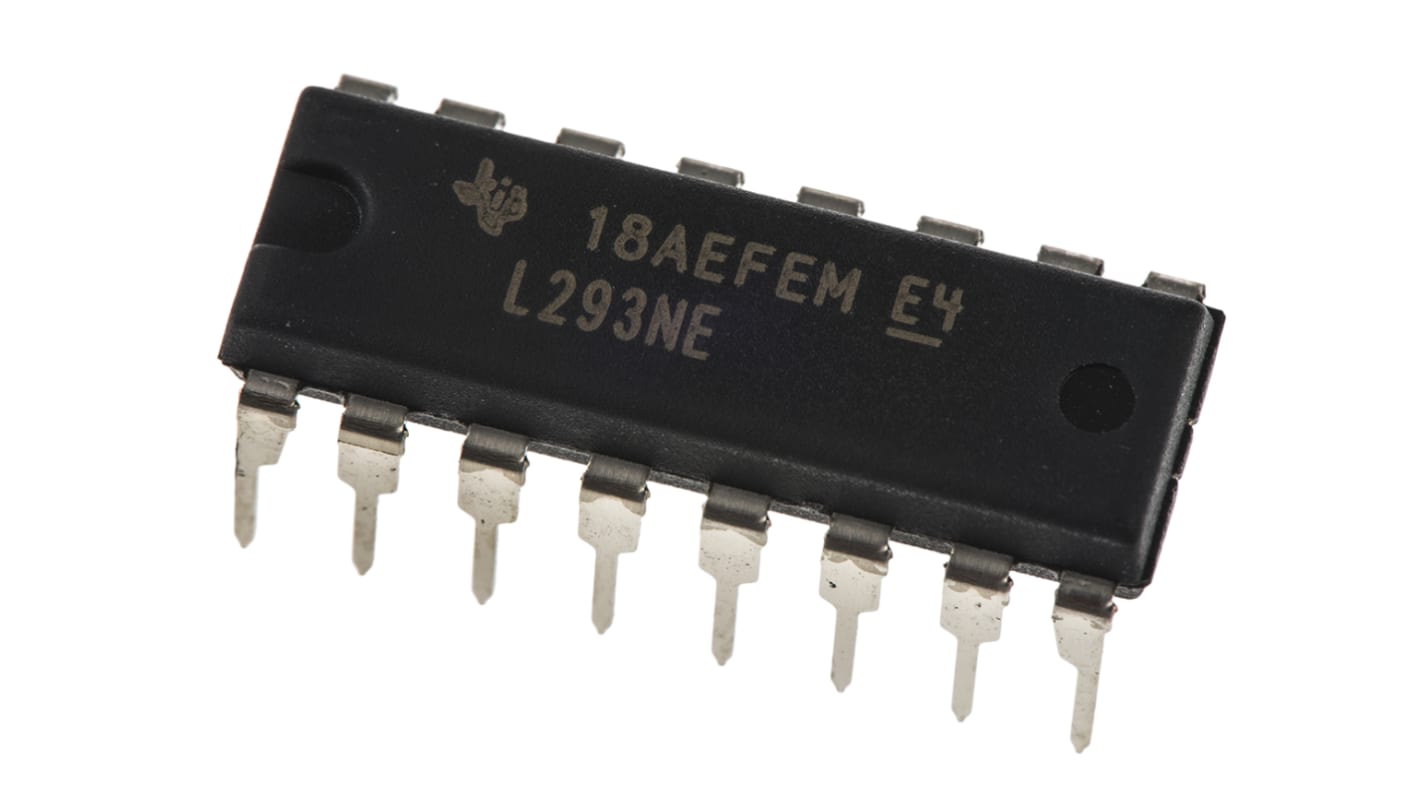

Texas Instruments L293NE, Brushed Motor Driver IC, 36 V 1A 16-Pin, PDIP
- RS Stock No.:
- 121-8338
- Mfr. Part No.:
- L293NE
- Manufacturer:
- Texas Instruments
300 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
999699 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 25)
MYR15.561
| Units | Per Unit | Per Tube* |
| 25 - 25 | MYR15.561 | MYR389.025 |
| 50 - 75 | MYR15.322 | MYR383.05 |
| 100 + | MYR15.023 | MYR375.575 |
| *price indicative | ||
- RS Stock No.:
- 121-8338
- Mfr. Part No.:
- L293NE
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Interface Peripheral Drivers and Actuators, Texas Instruments
The SN754410 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V. The device is designed to drive inductive loads for relays and solenoids, DC and Bipolar stepping motors plus other high voltage and current loads in positive applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Relay and Inductive Load Drivers
Specifications
Attribute | Value |
|---|---|
| Motor Type | Brushed DC |
| Output Configuration | Quad Half Bridge |
| Maximum IGBT Collector Current | 1A |
| Maximum Collector Emitter Voltage | 36 V |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Maximum Operating Supply Voltage | 36 V |
| Pin Count | 16 |
| Minimum Operating Supply Voltage | 4.5 V |
| Length | 19.8mm |
| Maximum Operating Temperature | +70 °C |
| Dimensions | 19.8 x 6.35 x 4.57mm |
| Width | 6.35mm |
| Height | 4.57mm |
| Minimum Operating Temperature | 0 °C |
