Wurth Elektronik 3-Axis Surface Accelerometer 1.7 V 3.6 V, I2C, LGA, 12-Pin
- RS Stock No.:
- 235-2272P
- Mfr. Part No.:
- 2533020201601
- Manufacturer:
- Wurth Elektronik

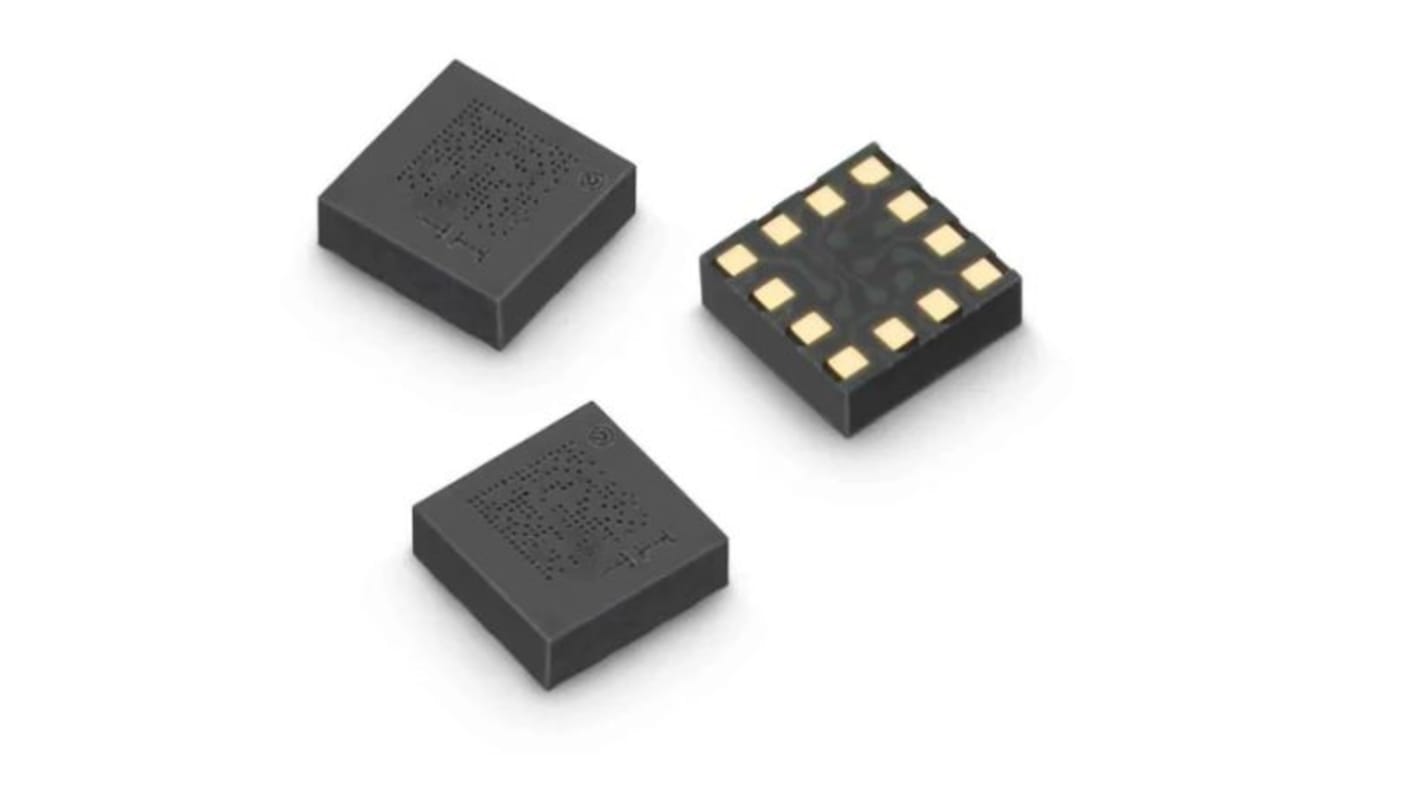

This image is representative of the product range
Bulk discount available
Subtotal 10 units (supplied on a continuous strip)*
MYR98.50
FREE delivery for orders over RM 500.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 10 - 98 | MYR9.85 |
| 100 - 248 | MYR9.525 |
| 250 - 498 | MYR9.21 |
| 500 + | MYR8.91 |
*price indicative
- RS Stock No.:
- 235-2272P
- Mfr. Part No.:
- 2533020201601
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Sensor Type | Accelerometer | |
| Product Type | Accelerometer | |
| Number of Axis | 3 | |
| Technology | Digital | |
| Mount Type | Surface | |
| Interface Type | I2C | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 12 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 0.7mm | |
| Length | 2mm | |
| Width | 2 mm | |
| Automotive Standard | No | |
| Supply Current | 2μA | |
| Distrelec Product Id | 304-40-969 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Sensor Type Accelerometer | ||
Product Type Accelerometer | ||
Number of Axis 3 | ||
Technology Digital | ||
Mount Type Surface | ||
Interface Type I2C | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA | ||
Minimum Operating Temperature -40°C | ||
Pin Count 12 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 0.7mm | ||
Length 2mm | ||
Width 2 mm | ||
Automotive Standard No | ||
Supply Current 2μA | ||
Distrelec Product Id 304-40-969 | ||
The Wurth Elektronik WSEN-ITDS 3 axis acceleration sensor mostly used in industrial IoT and connected devices, impact recognition and logging, vibration monitoring, predictive maintenance and activity tracking. It operates on MEMS based capacitive sensing principle. It has I²C digital communication interface.
14 bit output resolution
Bandwidth up to 1600 Hz
32 level FIFO buffer
Embedded temperature sensor
Operating temperature range is from -40 °C up to +85 °C
