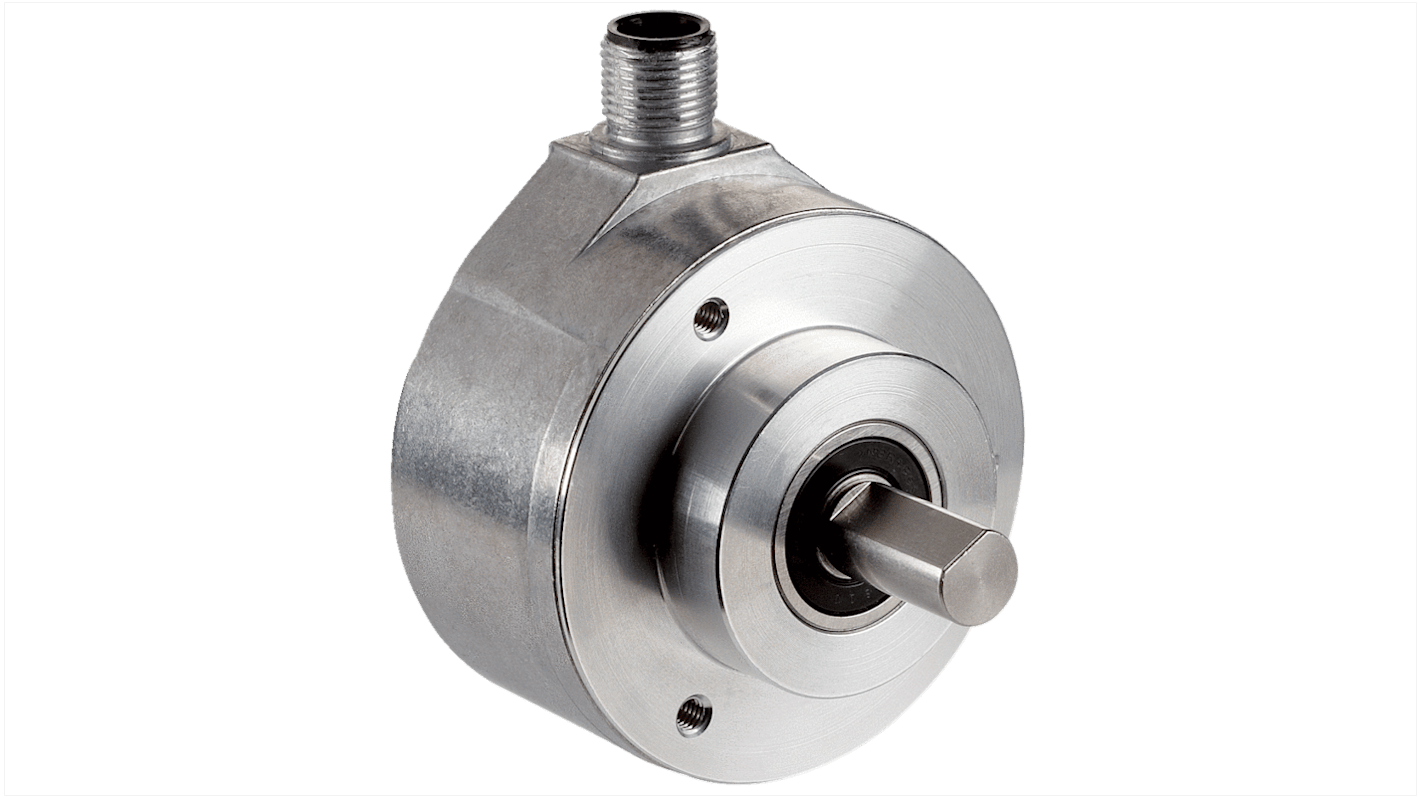

SICK DFS60 Series Incremental Incremental Encoder, 360ppr ppr, HTL/Push Pull Signal, Solid Type, 10mm Shaft
- RS Stock No.:
- 266-7644
- Mfr. Part No.:
- DFS60E-S4EC00360
- Manufacturer:
- SICK
Subtotal (1 unit)**
MYR1,629.09
Temporarily out of stock - back order for despatch 09/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
---|---|
1 + | MYR1,629.09 |
**price indicative
- RS Stock No.:
- 266-7644
- Mfr. Part No.:
- DFS60E-S4EC00360
- Manufacturer:
- SICK
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Encoder Technology | Incremental | |
Pulses Per Revolution | 360ppr | |
Series | DFS60 | |
Maximum Revolutions | 9000rpm | |
Output Signal Type | HTL/Push Pull | |
Shaft Type | Solid | |
Shaft Diameter | 10mm | |
Supply Voltage | 32 V | |
IP Rating | IP65, IP67 | |
Overall Height | 60mm | |
Interface | Push-Pull | |
Overall Width | 60mm | |
Overall Depth | 40.1mm | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +85°C | |
Mounting Type | Flange Mount | |
Connection Type | Male Connector | |
Current Rating | 30 mA | |
Select all | ||
---|---|---|
Brand SICK | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 360ppr | ||
Series DFS60 | ||
Maximum Revolutions 9000rpm | ||
Output Signal Type HTL/Push Pull | ||
Shaft Type Solid | ||
Shaft Diameter 10mm | ||
Supply Voltage 32 V | ||
IP Rating IP65, IP67 | ||
Overall Height 60mm | ||
Interface Push-Pull | ||
Overall Width 60mm | ||
Overall Depth 40.1mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Flange Mount | ||
Connection Type Male Connector | ||
Current Rating 30 mA | ||
