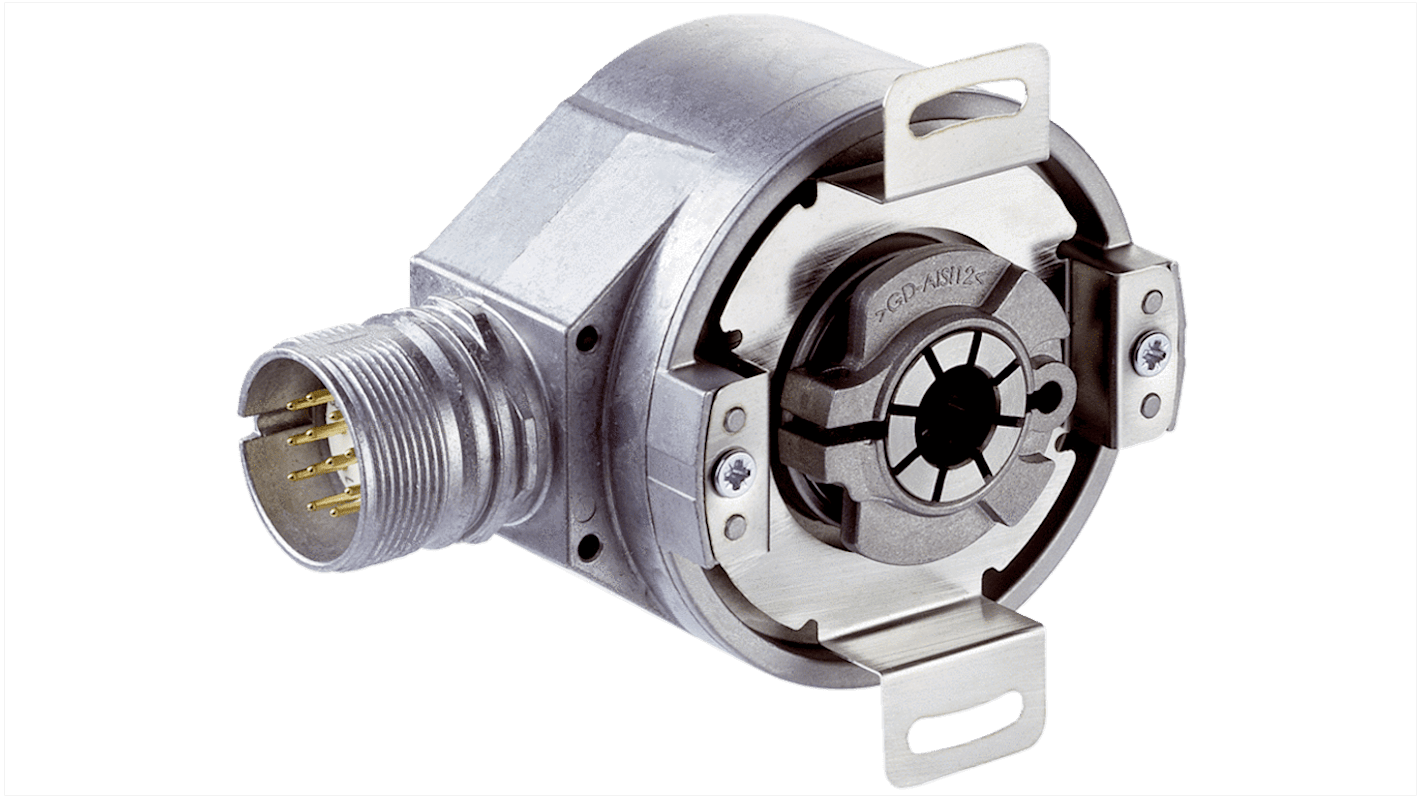

SICK DFS60 Series Incremental Incremental Encoder, 10000ppr ppr, TTL/HTL Signal, Blind Hollow Type, 14mm Shaft
- RS Stock No.:
- 266-7500
- Mfr. Part No.:
- DFS60B-BGPA10000
- Manufacturer:
- SICK
Subtotal (1 unit)**
MYR2,209.75
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 + | MYR2,209.75 |
**price indicative
- RS Stock No.:
- 266-7500
- Mfr. Part No.:
- DFS60B-BGPA10000
- Manufacturer:
- SICK
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Encoder Technology | Incremental | |
Pulses Per Revolution | 10000ppr | |
Series | DFS60 | |
Maximum Revolutions | 6000rpm | |
Output Signal Type | TTL/HTL | |
Shaft Type | Blind Hollow | |
Shaft Diameter | 14mm | |
Supply Voltage | 4.5 → 32 V dc | |
IP Rating | IP65, IP67 | |
Overall Height | 45.5mm | |
Overall Width | 72mm | |
Overall Depth | 45.5mm | |
Minimum Operating Temperature | +100°C | |
Mounting Type | Flange Mount | |
Maximum Operating Temperature | -40°C | |
Connection Type | M23 12 Pin Connector | |
Current Rating | 30 mA | |
Select all | ||
---|---|---|
Brand SICK | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 10000ppr | ||
Series DFS60 | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type TTL/HTL | ||
Shaft Type Blind Hollow | ||
Shaft Diameter 14mm | ||
Supply Voltage 4.5 → 32 V dc | ||
IP Rating IP65, IP67 | ||
Overall Height 45.5mm | ||
Overall Width 72mm | ||
Overall Depth 45.5mm | ||
Minimum Operating Temperature +100°C | ||
Mounting Type Flange Mount | ||
Maximum Operating Temperature -40°C | ||
Connection Type M23 12 Pin Connector | ||
Current Rating 30 mA | ||
