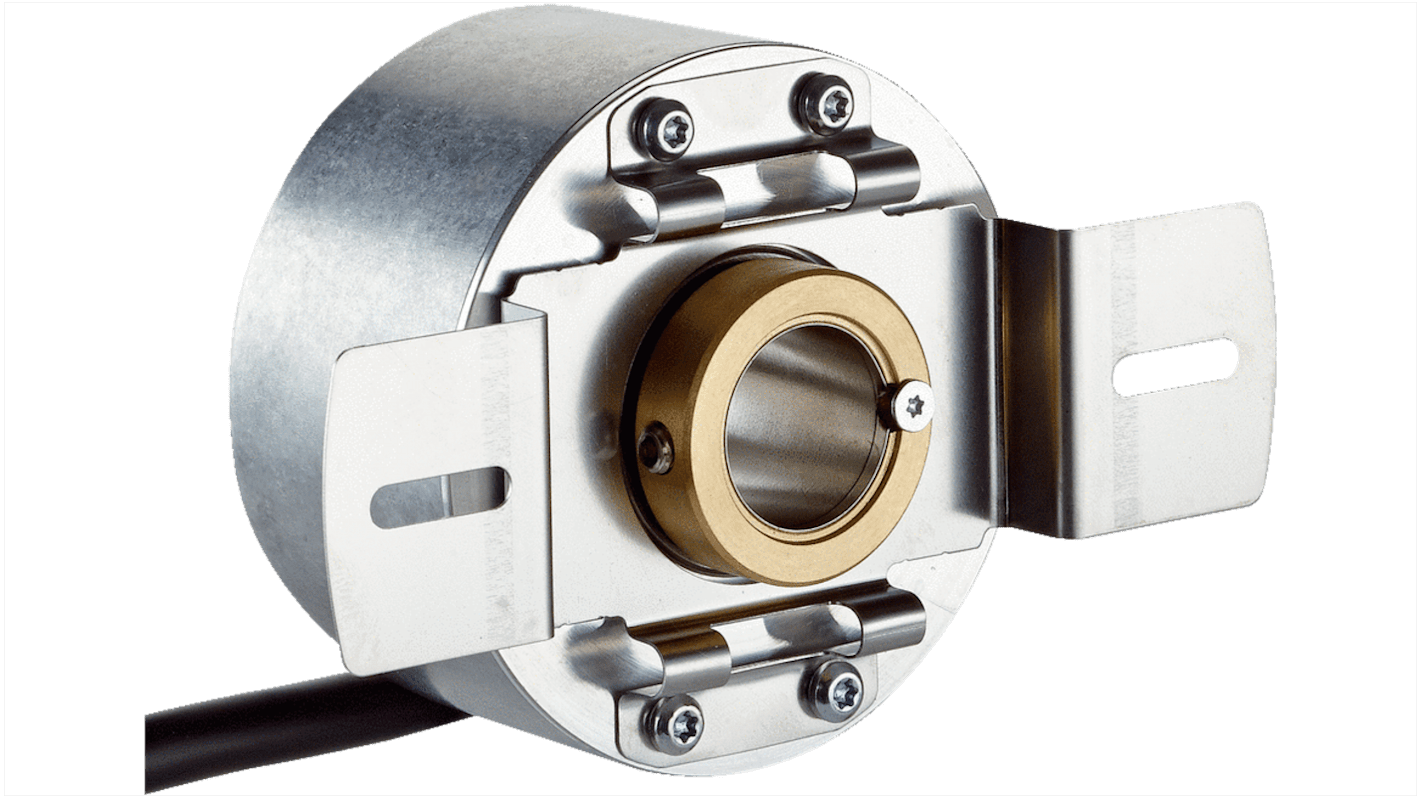

SICK DBS60 Series Incremental Incremental Encoder, 1024ppr ppr, RS422, TTL Signal, Through Hollow Type, 15mm Shaft
- RS Stock No.:
- 266-7437
- Mfr. Part No.:
- DBS60E-THAN01024
- Manufacturer:
- SICK
Subtotal (1 unit)**
MYR1,578.39
Temporarily out of stock - back order for despatch 05/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
---|---|
1 + | MYR1,578.39 |
**price indicative
- RS Stock No.:
- 266-7437
- Mfr. Part No.:
- DBS60E-THAN01024
- Manufacturer:
- SICK
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Encoder Technology | Incremental | |
Series | DBS60 | |
Pulses Per Revolution | 1024ppr | |
Maximum Revolutions | 6000rpm | |
Output Signal Type | RS422, TTL | |
Shaft Type | Through Hollow | |
Shaft Diameter | 15mm | |
Supply Voltage | 30 V | |
Steps Per Revolution | 1024ppr | |
IP Rating | IP65 | |
Interface | RS-422 | |
Overall Height | 58mm | |
Overall Width | 58mm | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +100°C | |
Mounting Type | Flange Mount | |
Current Rating | 30 mA | |
Connection Type | Cable | |
Select all | ||
---|---|---|
Brand SICK | ||
Encoder Technology Incremental | ||
Series DBS60 | ||
Pulses Per Revolution 1024ppr | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type RS422, TTL | ||
Shaft Type Through Hollow | ||
Shaft Diameter 15mm | ||
Supply Voltage 30 V | ||
Steps Per Revolution 1024ppr | ||
IP Rating IP65 | ||
Interface RS-422 | ||
Overall Height 58mm | ||
Overall Width 58mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
Mounting Type Flange Mount | ||
Current Rating 30 mA | ||
Connection Type Cable | ||
