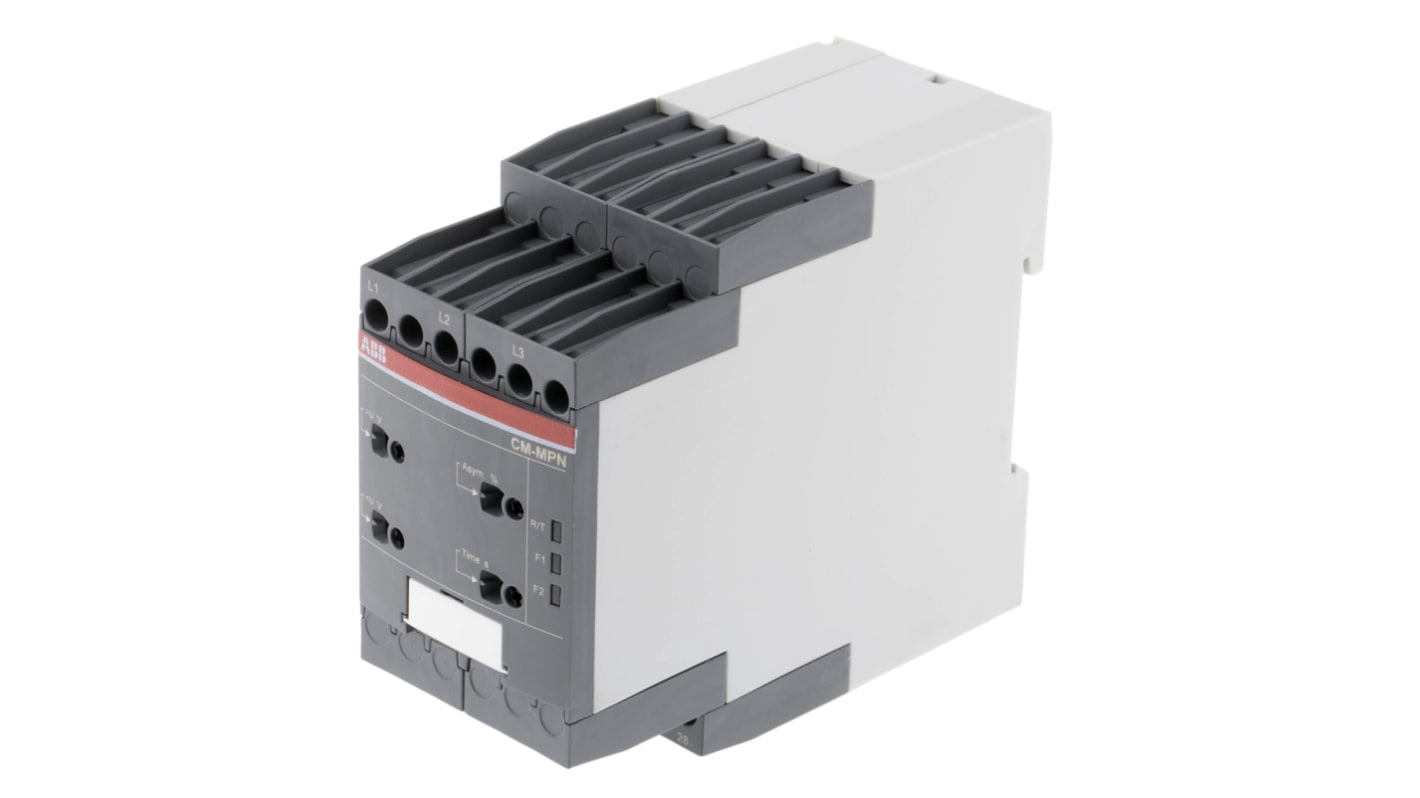

ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 350 → 580V ac, DIN Rail
- RS Stock No.:
- 775-7920
- Mfr. Part No.:
- 1SVR750487R8300 CM-MPN.52S
- Manufacturer:
- ABB
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,454.87
| Units | Per Unit |
| 1 + | MYR1,454.87 |
- RS Stock No.:
- 775-7920
- Mfr. Part No.:
- 1SVR750487R8300 CM-MPN.52S
- Manufacturer:
- ABB
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
ABB Monitoring Relay, 3 Phases, 350 to 580V AC Voltage Sensing Range - CM-MPN Series - 1SVR750487R8300 CM-MPN.52S
Choose this monitoring relay from ABB to shield your setup from electrical hazards. Its wide voltage sensing range between 350 and 580V AC means it's just the thing for medium-power industrial applications. This device is an all-rounder that senses faults such as phase failure and unbalance, overvoltage and undervoltage. For versatility, you can adjust the time delay between 0 and 30 seconds. Turn your hand to the screw terminals for easy and secure wiring.
Features & Benefits
• Light weight of 230g to place minimal strain on your equipment
• Terminals have an IP20 rating, meaning they're touch-proof and protected against objects larger than 12mm in size
• Long mechanical lifespan of 30 million switching cycles for long-lasting performance
• Terminals have an IP20 rating, meaning they're touch-proof and protected against objects larger than 12mm in size
• Long mechanical lifespan of 30 million switching cycles for long-lasting performance
Applications
• Electrical distribution
• Motor control circuits
• Industrial power supplies
• Motor control circuits
• Industrial power supplies
How large is this product?
This relay has compact dimensions of 104.8 (L) x 45 (W) x 85.6mm (H), so it's a space-efficient option.
Can I use this device in harsh industrial conditions?
Yes. This unit has a broad operating temperature range between -25°C and +60°C, so it can withstand harsh industrial conditions.
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Phase, Voltage |
| Electrical Phase | 3 |
| Contact Configuration | DPDT |
| Voltage Sensing Range | 350 → 580V ac |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Mounting Type | DIN Rail |
| Phase Sensitivity | Phase Failure, Phase Imbalance, Phase Sequence |
| Time Delay | 0.1 → 30 s, 0s |
| Frequency Sensing Range | 45 → 65Hz |
| Series | CM-MPN |
| Operating Temperature Range | -25 → +60°C |
| Minimum Voltage Sensed | 350V ac |
| Length | 104.8mm |
| Height | 85.6mm |
| Current Range | 2 → 4A |
| Width | 45mm |
| Minimum Operating Temperature | -25°C |
| Standards Met | UL |
| Terminal Type | Screw |
| Maximum Operating Temperature | +60°C |
| Dimensions | 104.8 x 45 x 85.6mm |
| Maximum Voltage Sensed | 580V ac |
