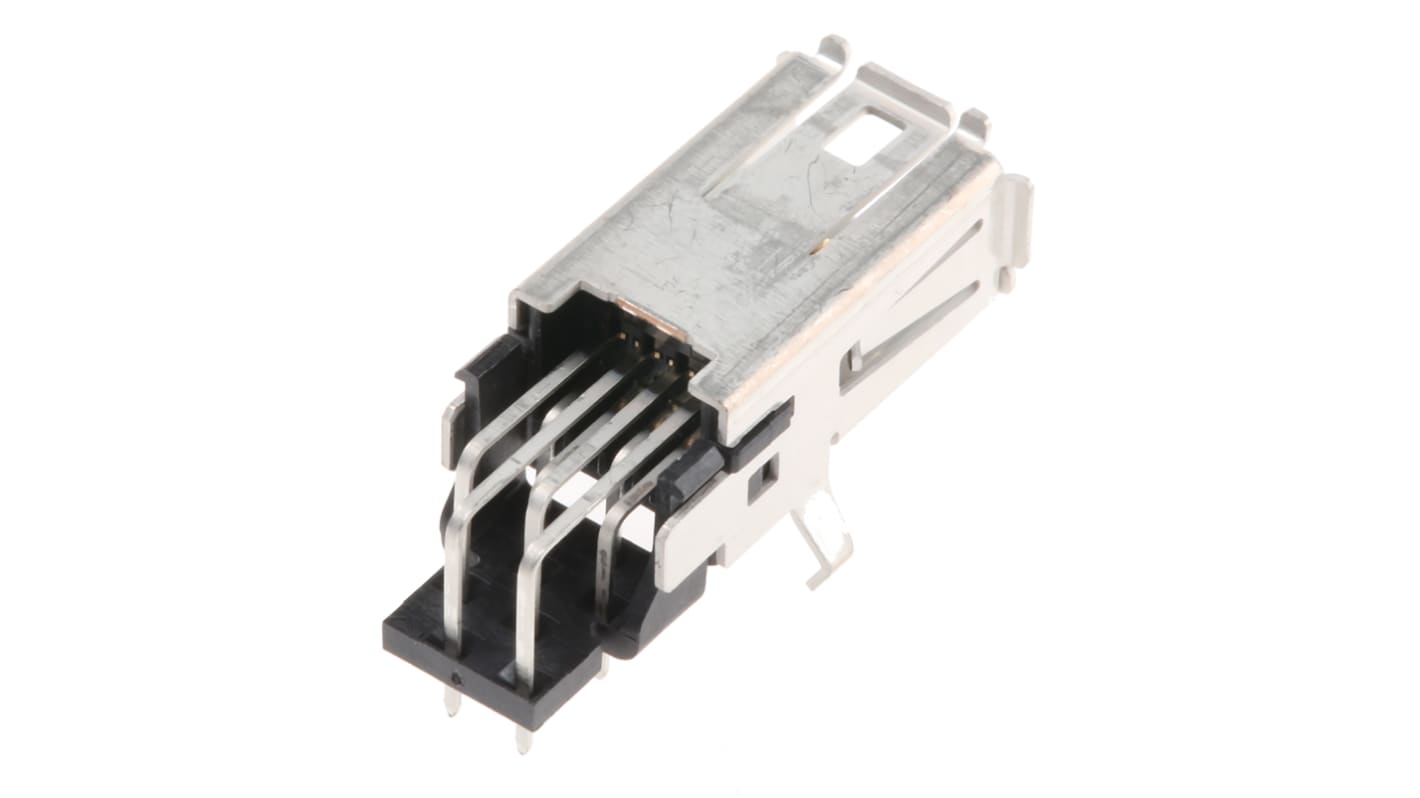

TE Connectivity Through Hole Mini I/O Connector Female

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

TE Connectivity Industrial Mini I/O

A range of compact, latching, wire-to-board Industrial Mini I/O interface connectors from TE Connectivity. These Industrial Mini I/O connectors are a quarter of the size of RJ45. For increased reliability in industrial applications is achieved by these Industrial Mini I/O interface connectors having two points of contact.
Type I Industrial Mini I/O connectors for use of all non Ethernet based Protocols are 703-9660 and 706-0214 .
Type II Industrial Mini I/O connectors for use of all Ethernet based Protocols are 706-0220 and 706-0223 .

706-0220 and 703-9660: Through-hole configuration DIP/H-Type
706-0214 and 706-0223: SMT configuration 0.635 mm pitch pads

No. of Positions: 8
Voltage: 30 V
Current: 0.5 A
Durability: 1500 cycles

TE Connectivity Industrial Mini I/O

Specifications
Attribute Value
Connector Type Modular Jack
Gender Female
Mounting Type Through Hole
Termination Method Solder
Housing Material Thermoplastic
Contact Material Copper Alloy
Temporarily out of stock - back order for despatch 21/02/2020, delivery within 4 working days from despatch date
Price Each (In a Tray of 900)
MYR 16.356
units
Per unit
Per Tray*
900 +
MYR16.356
MYR14,720.40
*price indicative
