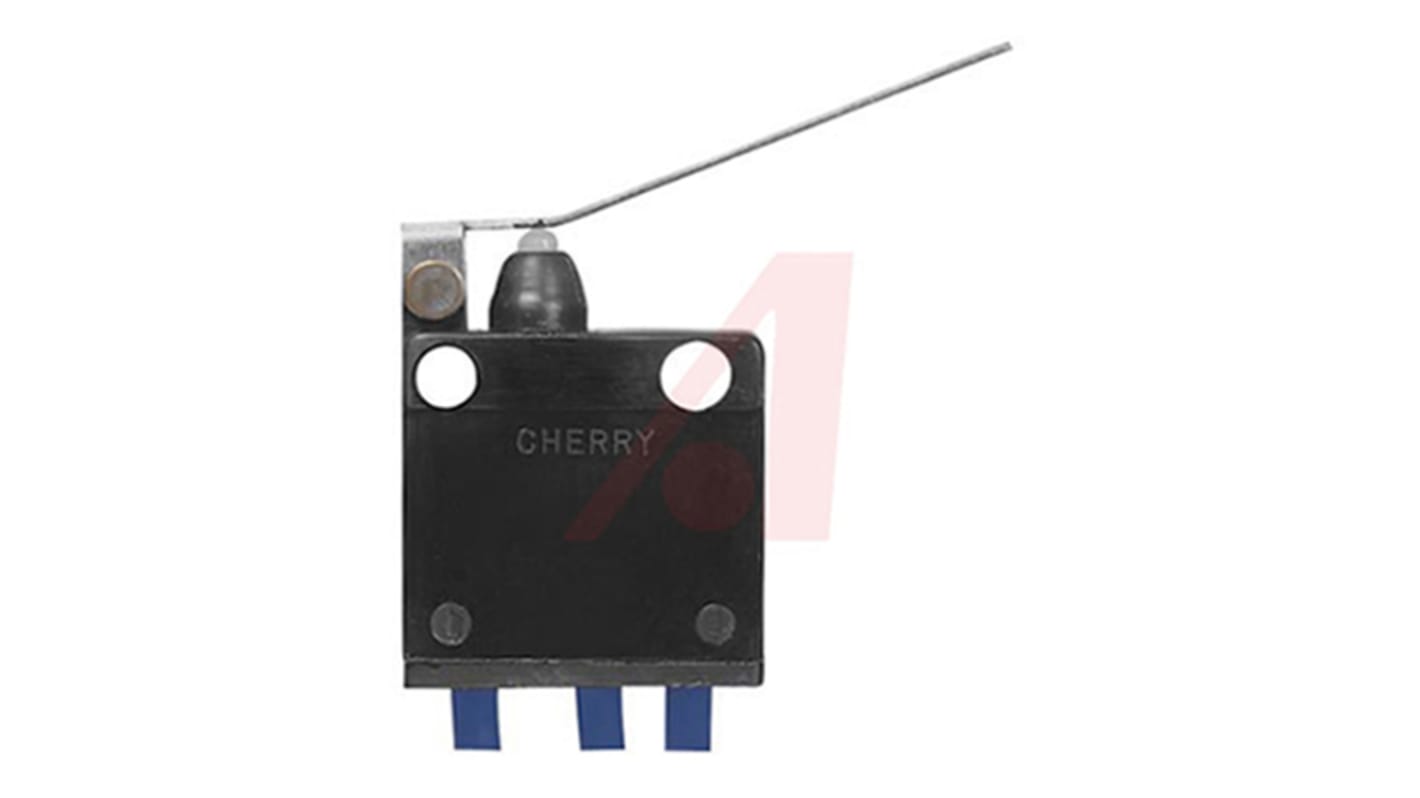

ZF Lever Micro Switch, Wire Lead Terminal, 10.1 A, SPST, SPST
- RS Stock No.:
- 868-1758
- Mfr. Part No.:
- E72-40HT
- Manufacturer:
- ZF
48 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR68.59
| Units | Per Unit |
| 1 + | MYR68.59 |
- RS Stock No.:
- 868-1758
- Mfr. Part No.:
- E72-40HT
- Manufacturer:
- ZF
Technical data sheets
Legislation and Compliance
Product Details
E70 Sub-miniature Switches
E70 series sub-miniature snap action microswitches offer a long life coil spring mechanism in a moisture resistant splashproof housong. The E70 series is available with a wide choice of button or hinged actuators and is supplied with terminal leads.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Lever |
| Terminal Type | Wire Lead |
| Contact Current Rating | 10.1 A |
| Contact Configuration | SPST, SPST |
| Operating Force | 67 g |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Alloy |
| Case Material | Thermoplastic Nylon |
| Voltage Rating | 125 V ac, 250V ac |
| Standards Met | UL 1054, UL 94V-O |
| Operating Temperature Range | -40 → +85°C |
