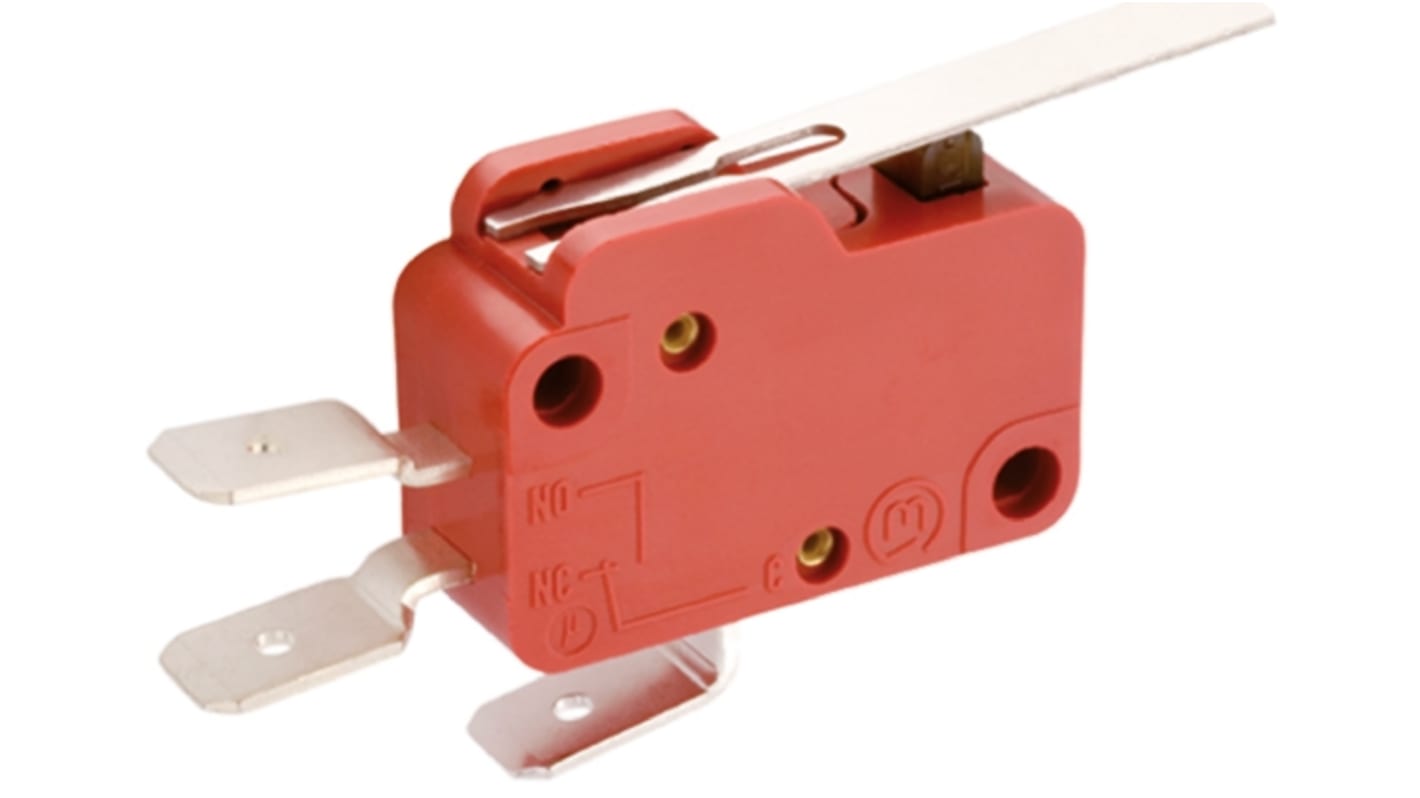

Marquardt Hinge Lever Micro Switch, Tab Terminal, 10 A @ 250 V ac, SP-CO
- RS Stock No.:
- 741-0956
- Mfr. Part No.:
- 1006.1401
- Manufacturer:
- Marquardt
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR28.17
| Units | Per Unit |
| 1 + | MYR28.17 |
- RS Stock No.:
- 741-0956
- Mfr. Part No.:
- 1006.1401
- Manufacturer:
- Marquardt
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Marquardt Miniature Snap Action Switches - 1005 Series
Marquardt 1005 Series miniature snap action single pole switches. The 1005 Series snap action switches are designed to DIN41635A with a contact resistance of <100mΩ and an insulation resistance of >100MΩ. The Marquardt 1005 Series is available with various actuators and terminations.
Contact distance <3mm (apart from stock number 741-0978 which has a contact distance greater than 3mm)
Bounce time <10ms
UL 94 V-2 flammability
Bounce time <10ms
UL 94 V-2 flammability
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Hinge Lever |
| Terminal Type | Tab |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Configuration | SPDT |
| Operating Force | 0.8 → 1.4 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Switch Housing | V0 Housing |
| Contact Material | Silver |
| Case Material | Thermosetting Plastic |
| Mechanical Life | 5000000Cycles |
| Operating Temperature Range | -40 → +100°C |
