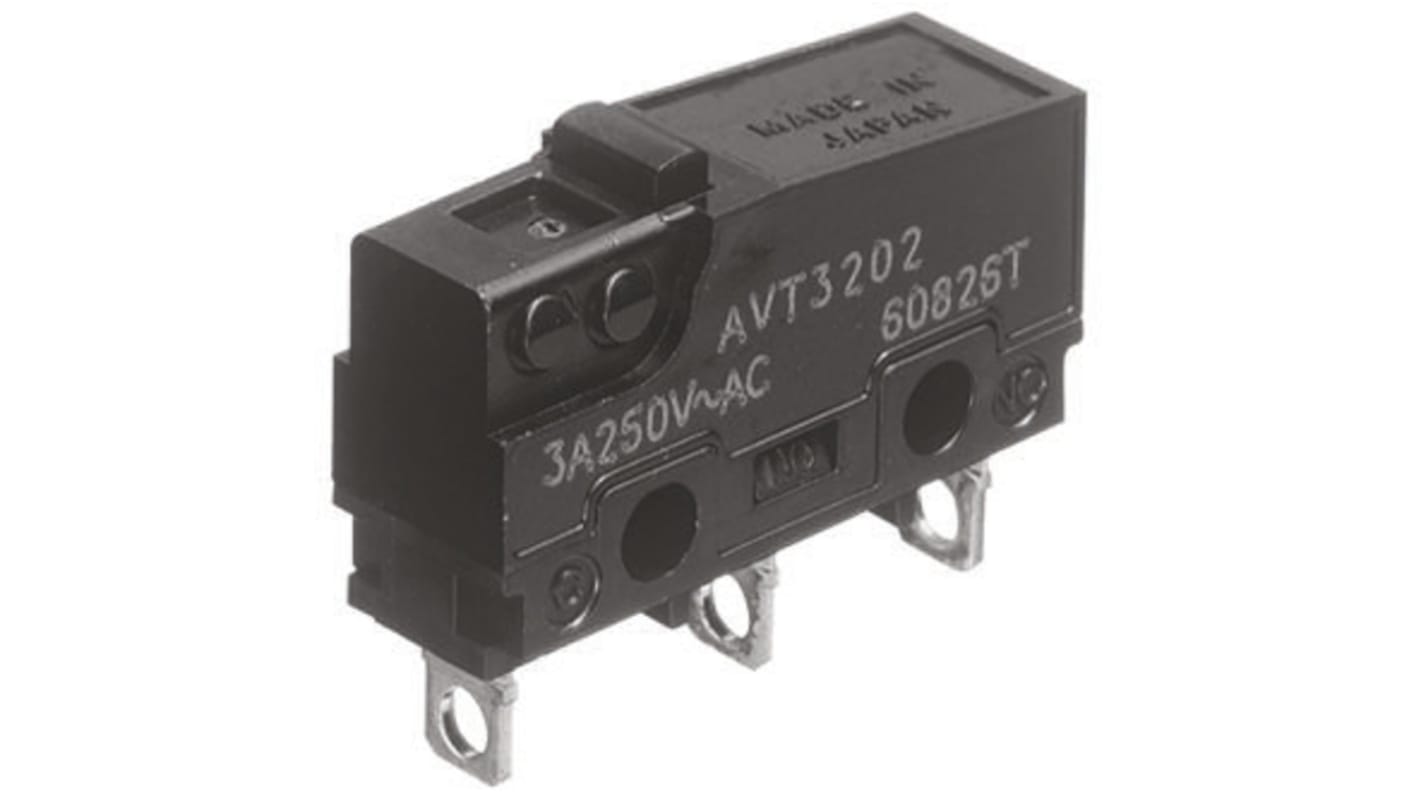

Panasonic Pin Plunger Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SP-CO
- RS Stock No.:
- 699-0441
- Mfr. Part No.:
- AVT3200613
- Manufacturer:
- Panasonic
165 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR6.83
| Units | Per Unit |
| 1 - 24 | MYR6.83 |
| 25 - 49 | MYR6.69 |
| 50 + | MYR6.49 |
- RS Stock No.:
- 699-0441
- Mfr. Part No.:
- AVT3200613
- Manufacturer:
- Panasonic
Technical data sheets
Legislation and Compliance
Product Details
AVT Sub-miniature High Precision Switches (FS-T version)
These subminiature high precision microswitches have are of a flux resistant construction and are available with a variety of actuator and terminal styles. Typical applications include communication equipment, vending machines, security systems, data systems and medical equipment.
Cross line terminals
Flux-resistant construction
Integrally moulded terminals
Common pitch, right angle, left angle terminals for PC board
Flux-resistant construction
Integrally moulded terminals
Common pitch, right angle, left angle terminals for PC board
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Pin Plunger |
| Terminal Type | Solder |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT |
| Operating Force | 0.25 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Triple Clad Gold |
| Mechanical Life | 5 x 10^5Operations |
| Release Force | 0.02N |
| Operating Temperature Range | -25 → +85°C |
