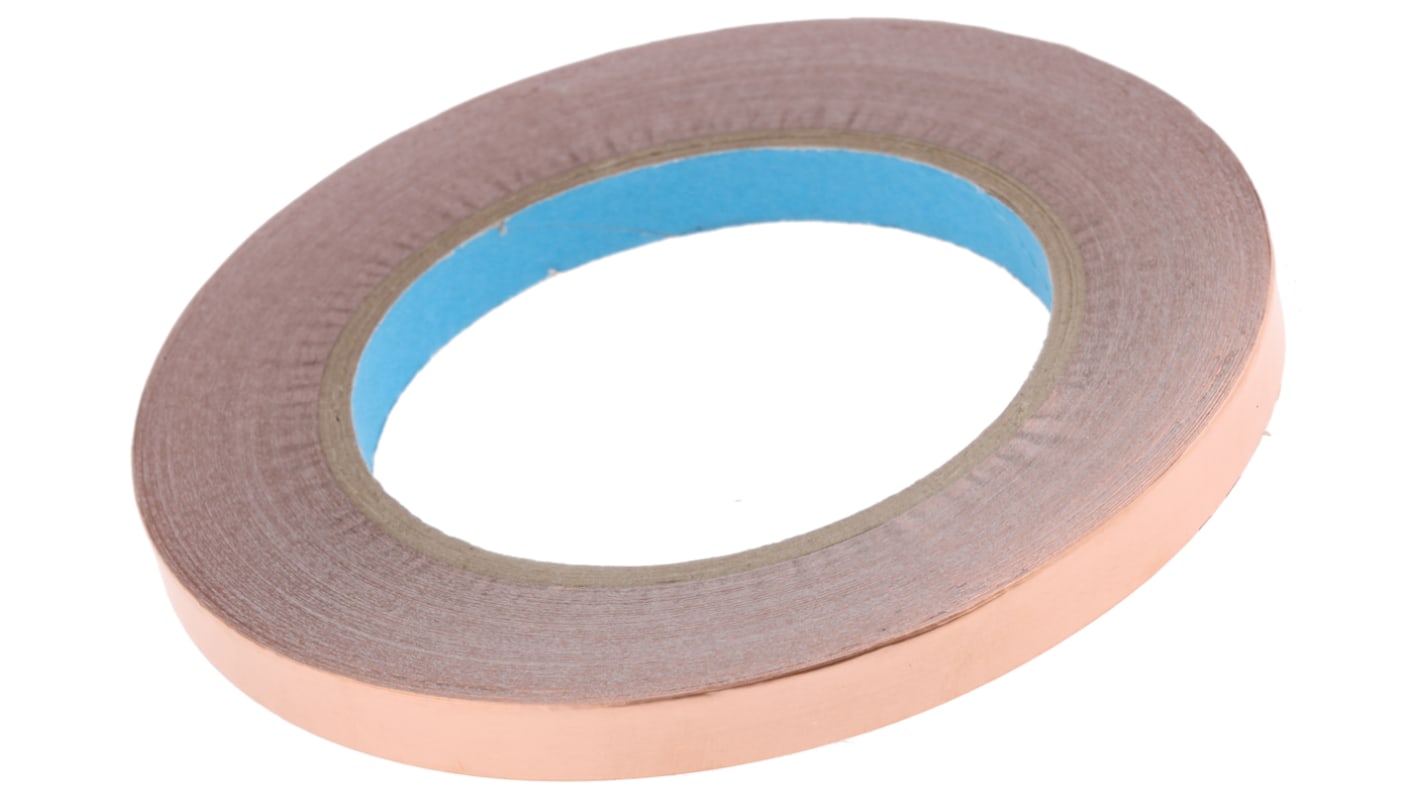

Wurth Elektronik 3003310A Conductive Metallic Tape, 10mm x 33m
- RS Stock No.:
- 736-2184
- Mfr. Part No.:
- 3003310A
- Manufacturer:
- Wurth Elektronik
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR428.89
| Units | Per Unit |
| 1 + | MYR428.89 |
- RS Stock No.:
- 736-2184
- Mfr. Part No.:
- 3003310A
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
EMI Shielding Tape - WE-CF Series
WE-CF series self adhesive EMI shielding tape coated with aluminium or copper with a very high shielding effect. This is by virtue of its highly conductive adhesive with metal powder. Applications for the WE-CF series EMI Shielding Tape include EMI-Protection of doors and housings. The WE-CF series EMI Shielding Tape can also be used in conjunction with the WE-ST series conductive Ni/Cu woven glass fiber sleeve.
Operating Temperature Range : -25ºC to +85ºC
Approvals
UL-listed
EMI/RFI Shielding Tapes
When using these tapes galvanic compatibility should be taken into account.
Specifications
Attribute | Value |
|---|---|
| Tape Type | Copper Tape |
| Total Thickness | 0.07mm |
| Foil Thickness | 0.035mm |
| Width | 10mm |
| Length | 33m |
| Conductivity | Conductive |
| Adhesion Strength | 5 N/cm |
| Adhesive Material | Acrylate |
| Material Plating | None |
| Tensile Strength | 40N/cm |
| Maximum Temperature Resistance | +155°C |
| Minimum Temperature Resistance | -25°C |
| Model Number | 3003310A |
