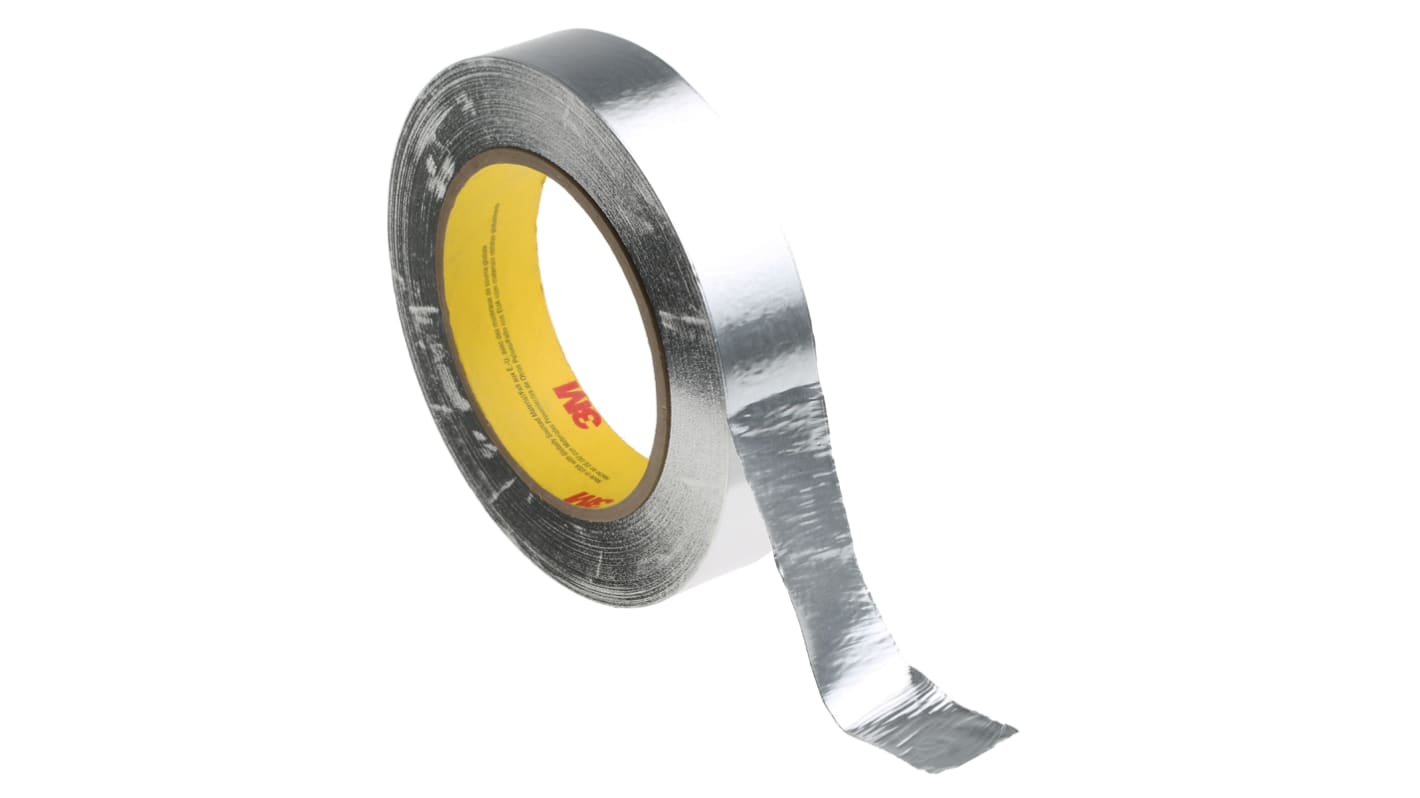

3M 425 Conductive Aluminium Foil Tape 0.12mm, W.25mm, L.55m

  • RS Stock No. 175-7808
  • Mfr. Part No. 425 - 25,4MM (R06933)
  • Manufacturer 3M
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Dead-soft aluminum foil tape, 3M 425

Aluminum adhesive tape with transparent acrylic adhesive
Backing material of pure, high-grade dead-soft aluminum
Aging-, temperature-, moisture- and solvent-resistant
For lining heat and light reflectors, heat-conductive attachment and as protection against frost for pipes and heating coils, as moisture barrier, and for indoor and outdoor splicing applications
Temperature range: -50 °C → +155 °C

Approvals

L-T-80B, MIL-T-23397 B, Type II

3M™ Aluminum Foil Tape 425, 25mm x 55m

The 3M 425 Aluminium Tape features a pressure sensitive acrylic adhesive makes it easy to apply with soft aluminium foil backing. Its used for a number of applications across a broad range of industries. Making it ideal for heat shielding, heat reflections, light enhancement, chemical milling, seaming and sealing.

Application

The soft aluminium is thermally conducting 3M 425 Foil Tape dissipates the heat over the surface of the foil backing to reduce heat spots and protects the subject from the effects of high temperatures. The 425 tape is capable of withstanding temperatures of 149°C without losing any of its fundamental properties.

Features and Benefits

Acrylic adhesive provides long term durability
Soft aluminium foil backing molds to curved and uneven surfaces
Helps dissipate heat
Improves heating and cooling efficiencies
Chemical resistance helps protect surfaces during de-painting process and other chemical masking operations.
UL and UL 746C and Classfied by UL to UL 723

Benefits of choosing 3M Aluminium Foil Tape

Extreme Hot and cold temperature versatility. 3M foil tape works in temperatures to which other tapes would diminish. Performing in cold conditions allows this 3M tape to be a market leader, as other tapes see the adhesive harden and begin to lose sticking strength. On the contrary, extreme heat can melt adhesives of tapes, but not the 3M foil tape making it versatile for most applications.

An Acrylic Adhesive backing. This 3M Aluminium foil tape is coated in a superior acrylic adhesive, which works well in extreme cold and heat conditions. This matters when comparing to most duct tapes that are made with a rubber adhesive. This is then known to delaminate from its backing in these extreme conditions. Other adhesives can offer greater resistance but will lack mechanical strength, poor ageing resistance and UV light.

Longevity of foil tape. Within the construction industry, the use of pressure sensitive tapes is often used in hard to reach areas. This means they can't be easily replaced or repaired. The acrylic adhesive on the 3M aluminium foil tape offers better cohesion, adhesion and thermal properties.

There is no electrolytic corrosion factor associated with these products.

Specifications
Attribute Value
Tape Type Aluminium Tape
Total Thickness 0.12mm
Foil Thickness 0.08mm
Width 25mm
Length 55m
Conductivity Conductive
Adhesion Strength 5.1 N/cm
Adhesive Material Acrylic
Tensile Strength 5.3N/cm
Maximum Temperature Resistance +149°C
Minimum Temperature Resistance -54°C
Model Number 3M 425
