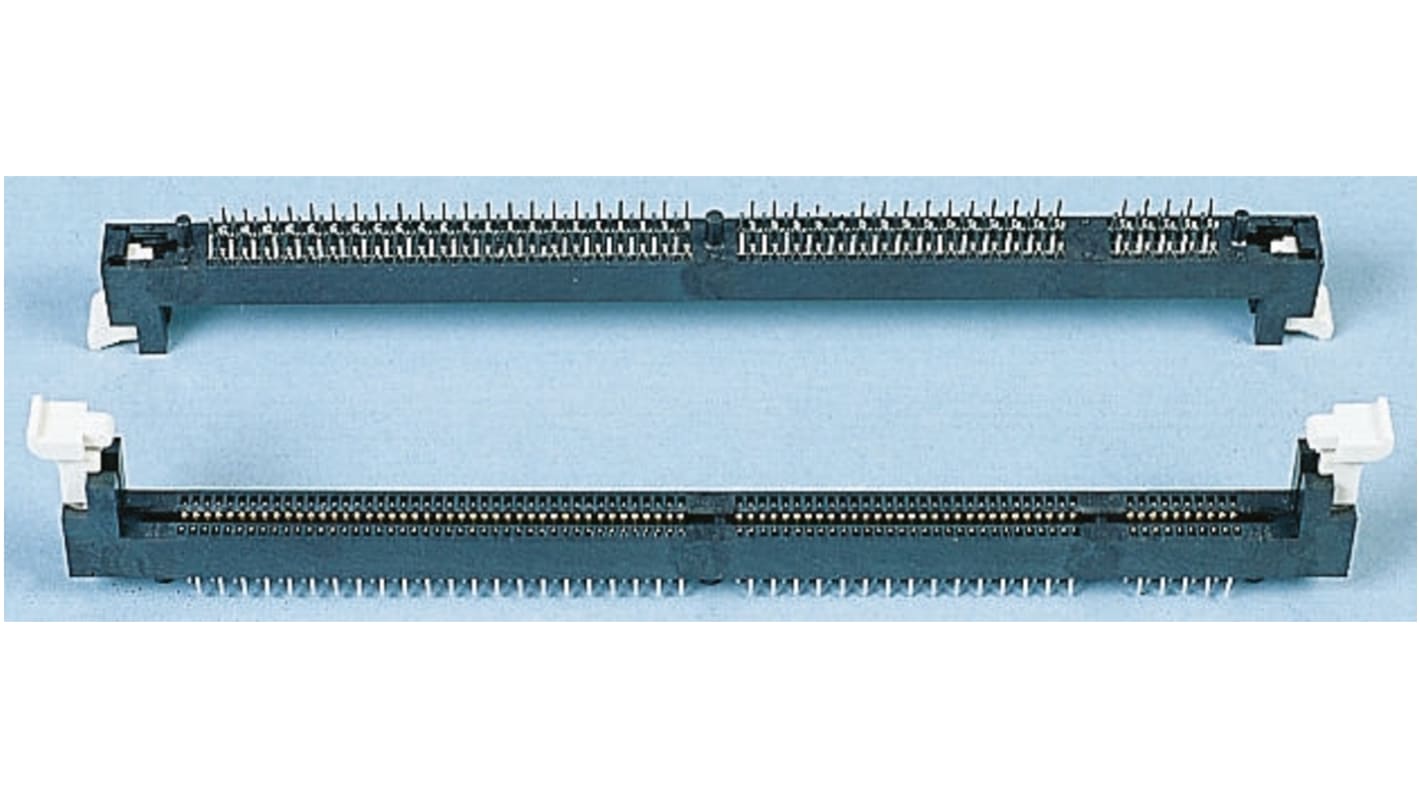

E-TEC 2.54mm Pitch 168 Way, Straight Through Hole Mount DIMM Socket ,3.3 V ,1A

  • RS Stock No. 549-5021
  • Mfr. Part No. DM1-168-VCA9-95/1L
  • Manufacturer E-TEC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

DIMM unit sockets

This range is available as 3.3 V DRAM long latch type.
All sockets are fitted with polarisation pins to avoid incorrect connector insertion.
Contacts are designed with an anti-overstress feature for long contact service life.

//media.rs-online.com/t_line/LF345084-11.gif
Specifications
Attribute Value
Gender Female
Memory Socket Type DIMM Socket
Body Orientation Straight
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Number of Contacts 168
Pitch 2.54mm
Mounting Type Through Hole
Termination Method Solder
Housing Material Polymer
Row Spacing 1.42mm
Maximum Contact Resistance 30.0mΩ
Current Rating 1.0A
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Voltage Rating 3.3 V
18 Within 4 working day(s) (Global stock)
60 Within 4 working day(s) (Global stock)
Price Each
Was MYR26.69
MYR 26.41
units
Per unit
1 - 24
MYR26.41
25 - 74
MYR24.58
75 - 199
MYR21.94
200 - 399
MYR19.30
400 +
MYR17.58
