CIF Single Sided Matrix Board FR4 1mm Holes, 2.54mm Pitch, 160 x 100 x 1.6mm
- RS Stock No.:
- 890-3566
- Mfr. Part No.:
- AGB10
- Manufacturer:
- CIF
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR61.41
| Units | Per Unit |
| 1 - 9 | MYR61.41 |
| 10 + | MYR59.56 |
- RS Stock No.:
- 890-3566
- Mfr. Part No.:
- AGB10
- Manufacturer:
- CIF
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

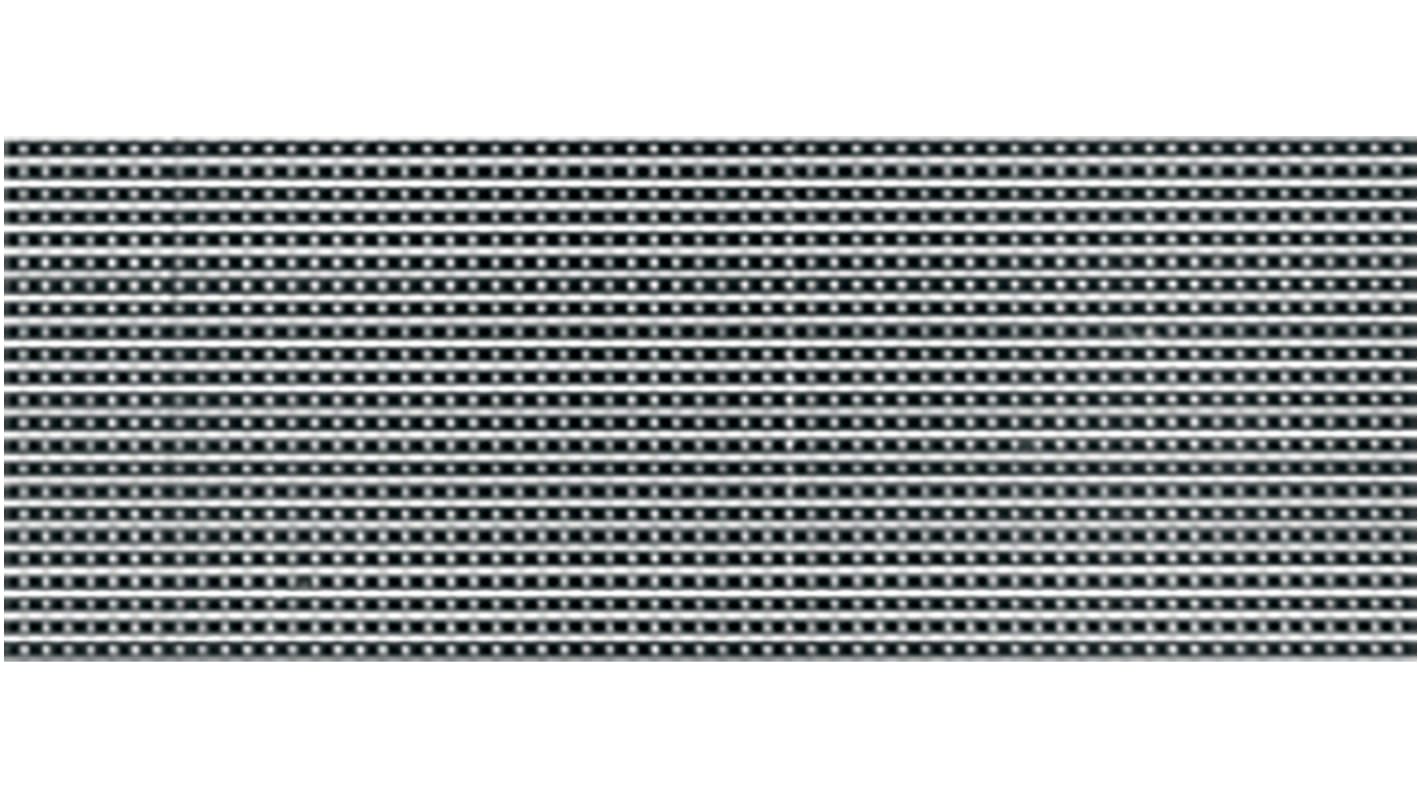

Tinned Copper Test Card
This Test Card from CIF is drilled at a 2.54 mm pitch with a drilling diameter of 1 mm.
2 mm wide tracks cover the entire product surface which is produced from FR4 epoxy glass.
DIN Type Matrixboard
Matrix boards with 1mm holes on a 2.54mm pitch.
Specifications
Attribute | Value |
|---|---|
| Number of Sides | 1 |
| Hole Pitch | 2.54mm |
| Dimensions | 160 x 100 x 1.6mm |
| Length | 160mm |
| Width | 100mm |
| Thickness | 1.6mm |
| Base Material | Epoxy Glass Fabric Laminate |
| Hole Diameter | 1mm |
| FR Material Grade | FR4 |
| Circuit Pattern | One Side |
