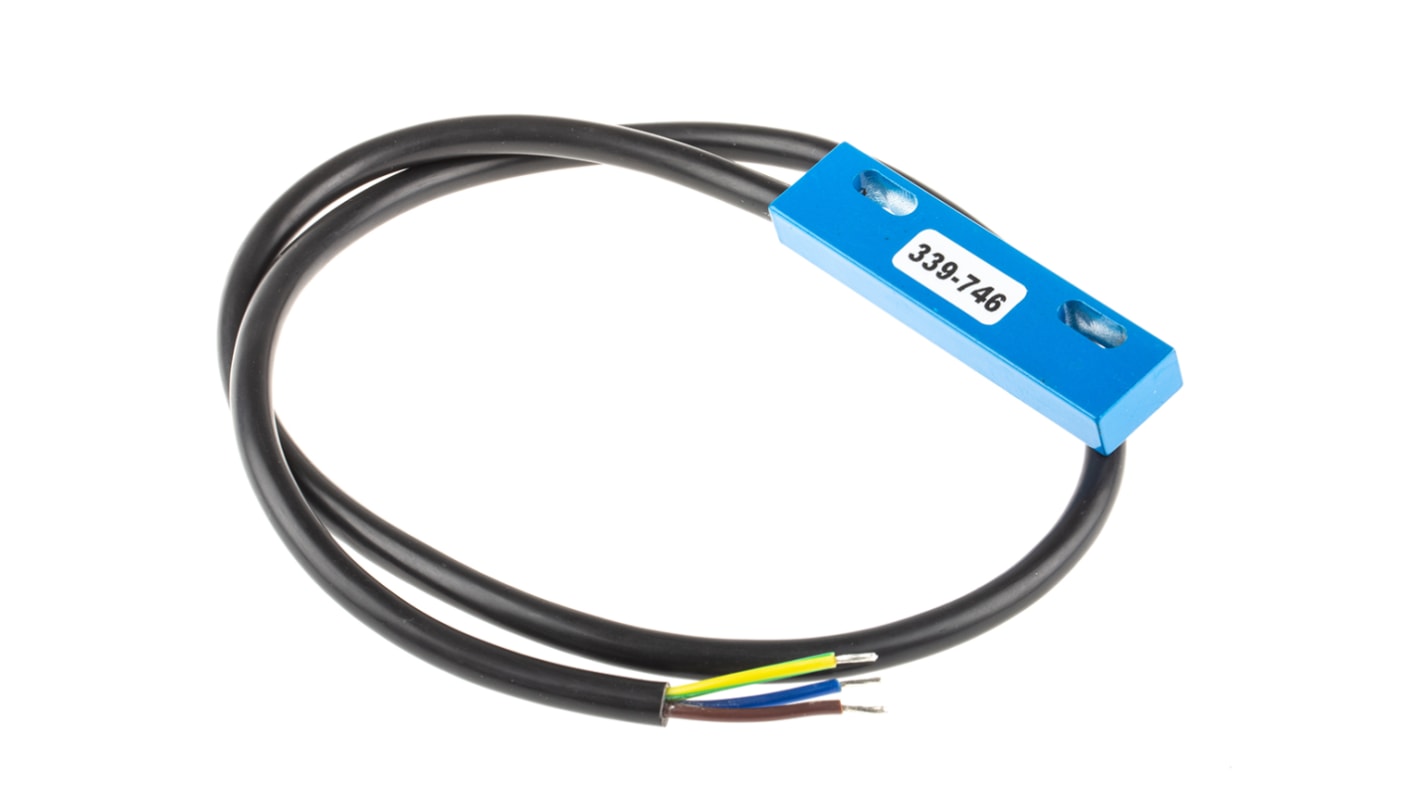

RS PRO Reed Switch Rectangular 250V, NO, 3 A

  • RS Stock No. 339-746
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pro Aluminium Proximity Switch

RS Pro aluminium housed proximity switch is a robust sealed switch with custom housings available. Hermetically sealed reed switch for long life. Earthed housing for added safety

Applications

Position sensing Security switching
Safety Gaurds
Linear actuators

Features and Benefits Robust sealed switch, custom housings available.
Changeover version available.
Custom cable types, cable lengths, connectors or crimp terminals available.
Hermetically sealed reed switch for long life.
Earthed housing for added safety.

Specifications
Attribute Value
Switch Shape Rectangular
Switch Type Magnetic Proximity
Normal State Configuration NO
Terminal Type Wire Lead
Maximum Current 3 A
Maximum AC Voltage 250V
Maximum DC Voltage 250V
Contact Resistance 100mΩ
Total Length 79.4mm
Length 79.4mm
Maximum Operating Temperature +85°C
Width 9.8mm
Dimensions 79.4 x 9.8 x 25.4 mm
Minimum Operating Temperature -20°C
Depth 25.4mm
1106 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 67.23
units
Per unit
1 - 14
MYR67.23
15 +
MYR64.56
