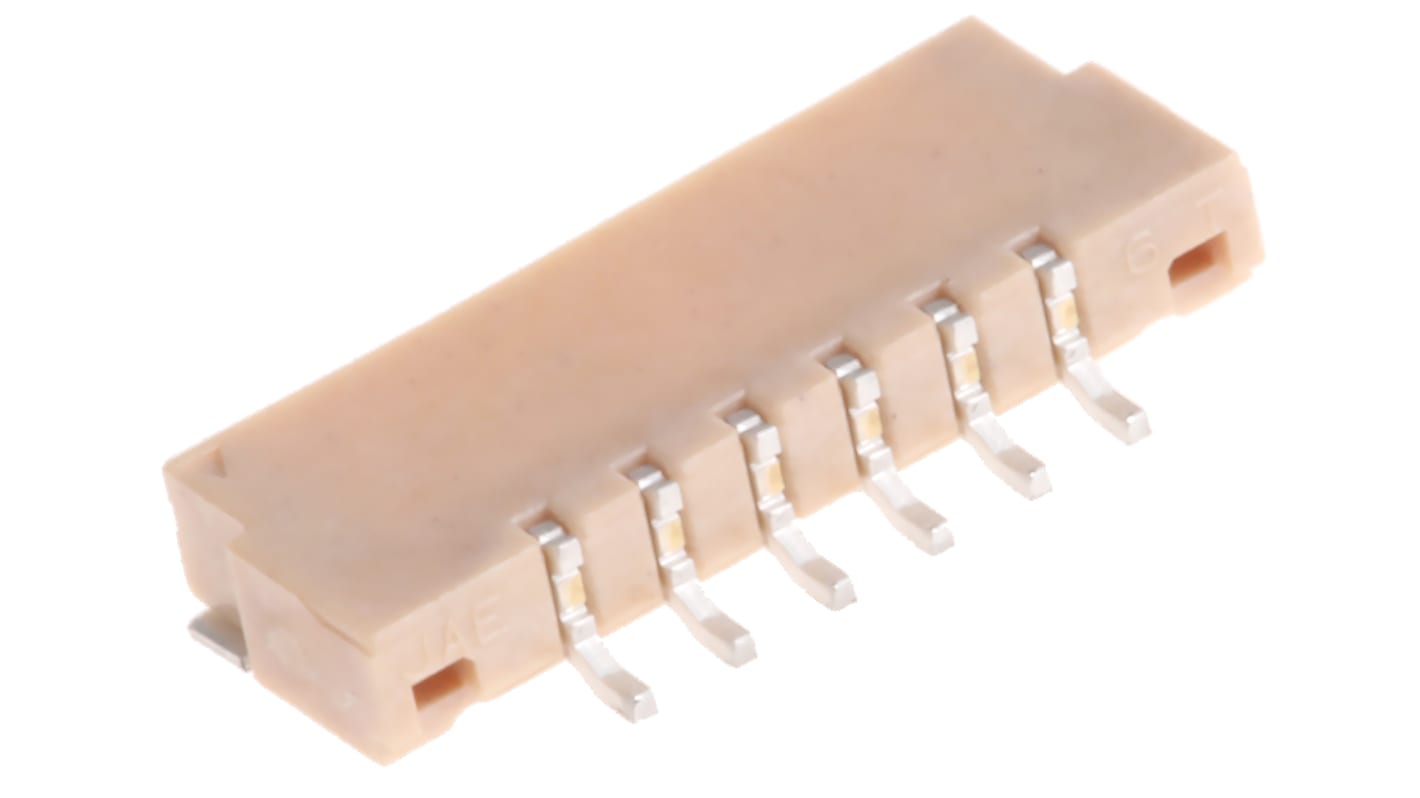

JAE FI Series 1.25mm Pitch 6 Way 1 Row Right Angle Surface Mount LVDS Connector, Receptacle, Solder Termination

  • RS Stock No. 690-4309
  • Mfr. Part No. FI-S6P-HFE
  • Manufacturer JAE
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

1.25mm Wire to Board Receptacle

1.25 mm LVDS Range

FI Series connectors are designed for board-to-board applications. Typical applications include notebook PCs, VCR’s, mobile phones and other consumer applications, where reduced space is a requirement.

Specifications
Attribute Value
Type Receptacle
Number of Contacts 6
Number of Rows 1
Mounting Type Surface Mount
Body Orientation Right Angle
Pitch 1.25mm
Contact Material Copper Alloy
Housing Colour Beige
Housing Material Liquid Crystal Polymer
Termination Method Solder
Series FI Series
235 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 6.39
units
Per unit
1 - 19
MYR6.39
20 - 74
MYR4.04
75 - 299
MYR3.54
300 - 599
MYR3.42
600 +
MYR3.29
