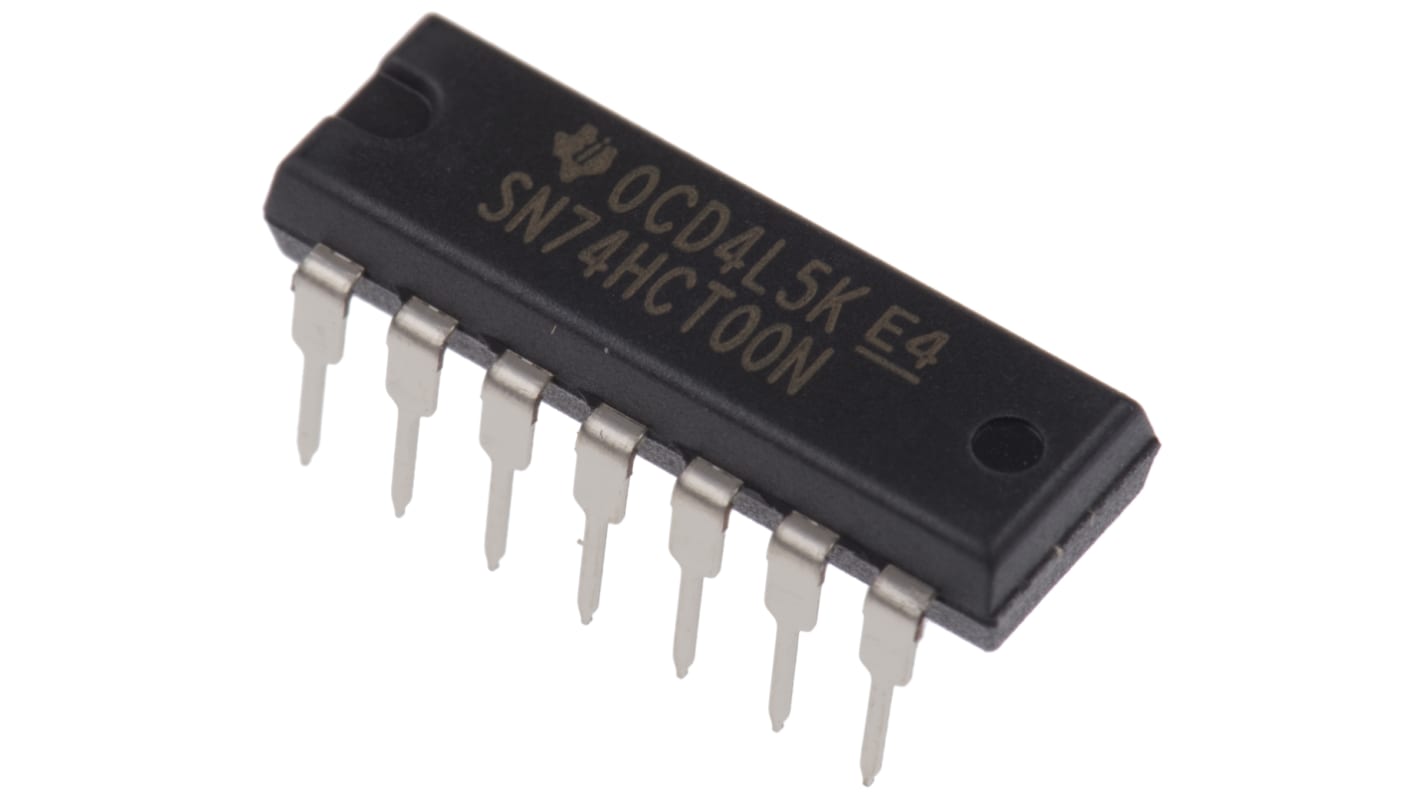

Quad 2 i/p NAND gate,SN74HCT00N DIP14

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74HCT Family Logic Gates, Texas Instruments

Texas Instruments range of standard Logic Gates from the 74HCT Family of CMOS Logic ICs. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS

74HCT Family

Specifications
Attribute Value
Logic Function NAND
Mounting Type Through Hole
Number of Elements 4
Number of Inputs per Gate 2
Schmitt Trigger Input No
Package Type PDIP
Pin Count 14
Logic Family HCT
Maximum Operating Supply Voltage 5.5 V
Maximum High Level Output Current -4mA
Maximum Propagation Delay Time @ Maximum CL 18 ns @ 5.5 V, 20 ns @ 4.5 V
Minimum Operating Supply Voltage 4.5 V
Maximum Low Level Output Current 4mA
Width 6.35mm
Minimum Operating Temperature -40 °C
Length 19.3mm
Maximum Operating Temperature +85 °C
Dimensions 19.3 x 6.35 x 4.57mm
Propagation Delay Test Condition 50pF
Height 4.57mm
600 In Global stock for delivery within 4 - 6 working days
Price Each (In a Tube of 25)
MYR 1.441
units
Per unit
Per Tube*
25 +
MYR1.441
MYR36.025
*price indicative
Due to temporarily constrained supply, RS is unable to accept backorders at this time
