Lenze Locking Bush ETP CLASSIC 32MM

  • RS Stock No. 477-6701
  • Mfr. Part No. ETP CLASSIC 32MM
  • Manufacturer Lenze
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

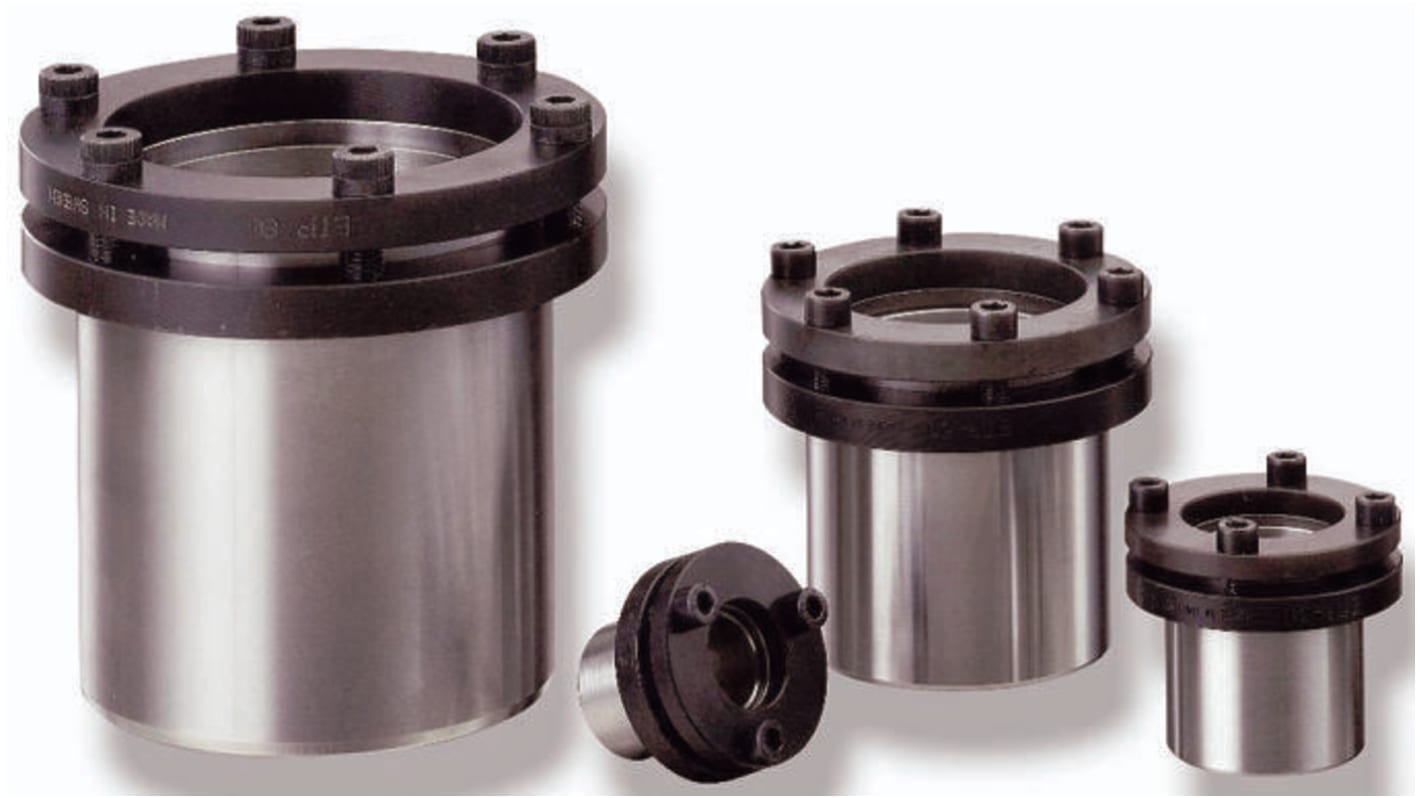

ETP Classic Locking Bushes

Unique hydraulic shaft to hub locking bush offering infinite radial and axial adjustment. Designed for frequent operations for very accurate mounting of gears, pulleys, sprockets etc.

High concentricity and self-centering
Fast, easy locking and un-locking with few pressure screws
Automatic release when screws are loosened
Ideal for applications with smaller diameter hubs
H7-h7 hub bore and shaft tolerances
Radial concentricity 0.04mm
Temperature range -30 to +85°C, refer to technical dept. if ambient temperature is below 0°C


To select the correct bush and hub the external diameter of the outer hub should be sufficient to withstand the stresses exerted. To calculate the size, multiply the bush outside diameter by the relevant factor: Steel x 1.7, Cast Iron x 2.2, Aluminium x 2.7. If the selected hub diameter is greater than or equal to the calculated size, then the selected size is suitable.

Attribute Value
Shaft Diameter 60mm
Outside Diameter 32mm
Flange Diameter 43mm
Length 57mm
Rated Torque 420Nm
Material Steel
Minimum Operating Temperature -30°C
Maximum Operating Temperature +85°C
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 684.44
Per unit
1 - 5
6 +
