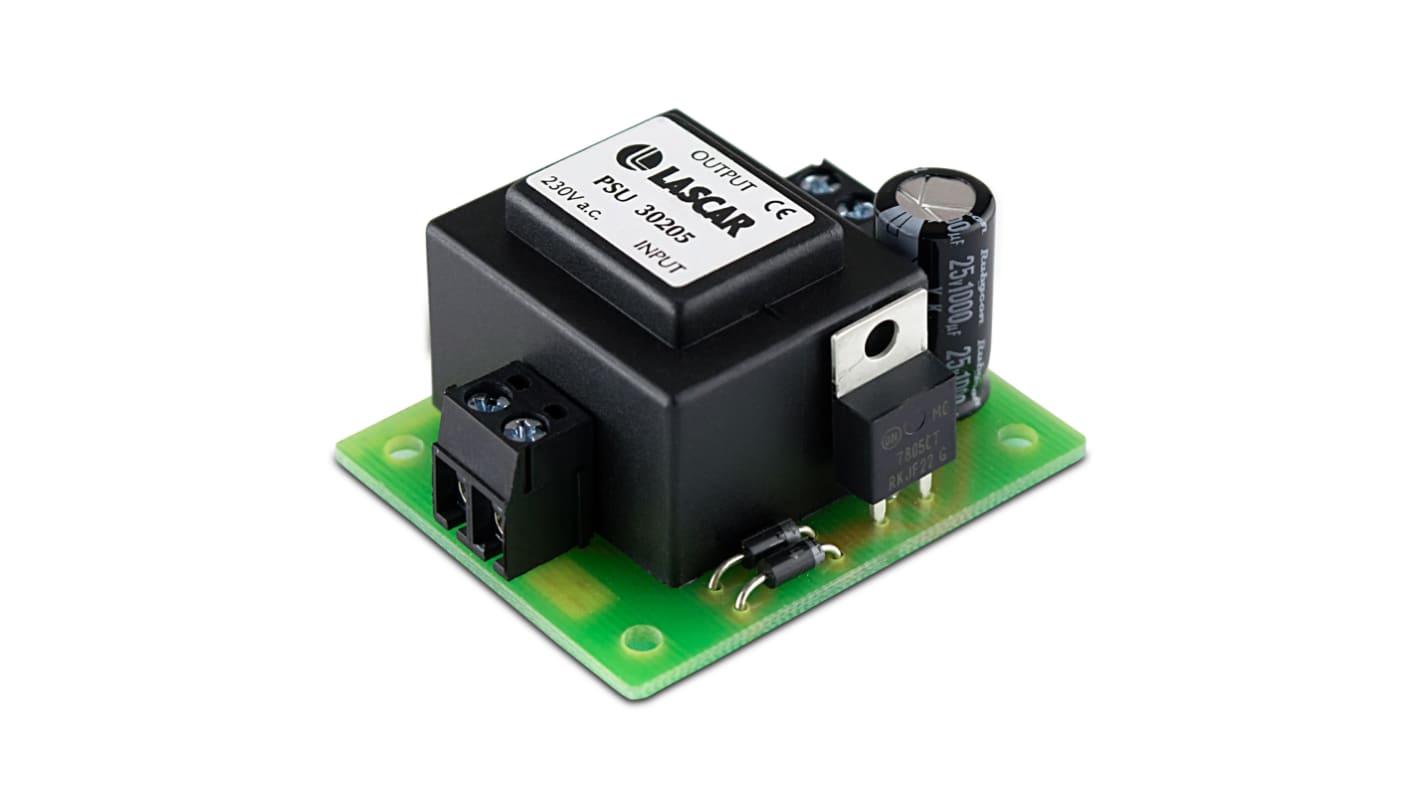

Lascar Encapsulated Linear Power Supply, 220 → 250V ac Input, 5V dc Output, 100mA Output, 0.5W
- RS Stock No.:
- 337-2061
- Mfr. Part No.:
- PSU 30205
- Manufacturer:
- Lascar
48 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR154.67
| Units | Per Unit |
| 1 + | MYR154.67 |
- RS Stock No.:
- 337-2061
- Mfr. Part No.:
- PSU 30205
- Manufacturer:
- Lascar
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Low Profile Single Output and Multiple Output Power Supply
Low profile power supply on printed circuit board, with enclosed transformers.
Power supply protected against surges, excessive temperature and short circuits.
For multiple output models, the outputs are adjustable using a multi-turn potentiometer.
The PSU 206 model includes a separate, insulated and fully adjustable dual supply current.
Input voltage selectable via a strap.
Terminal connection.
Power supply protected against surges, excessive temperature and short circuits.
For multiple output models, the outputs are adjustable using a multi-turn potentiometer.
The PSU 206 model includes a separate, insulated and fully adjustable dual supply current.
Input voltage selectable via a strap.
Terminal connection.
Open Frame Linear
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 220 → 250V ac |
| Output Voltage | 5V dc |
| Output Current | 100mA |
| Embedded | Yes |
| Number of Outputs | 1 |
| Power Rating | 0.5W |
| Length | 50mm |
| Width | 41mm |
| Depth | 29.6mm |
| Mounting Type | Encapsulated |
| Load Regulation | ±1% |
| Line Regulation | ±1% |
| Ripple And Noise | 0.5mV |
| Minimum Temperature | 0°C |
| Maximum Temperature | +70°C |
